Operating manual Powder Cup Gun PEM-X1 CG
8 Cleaning and Maintenance
34 Order number 2326960 | Edition 10/2022

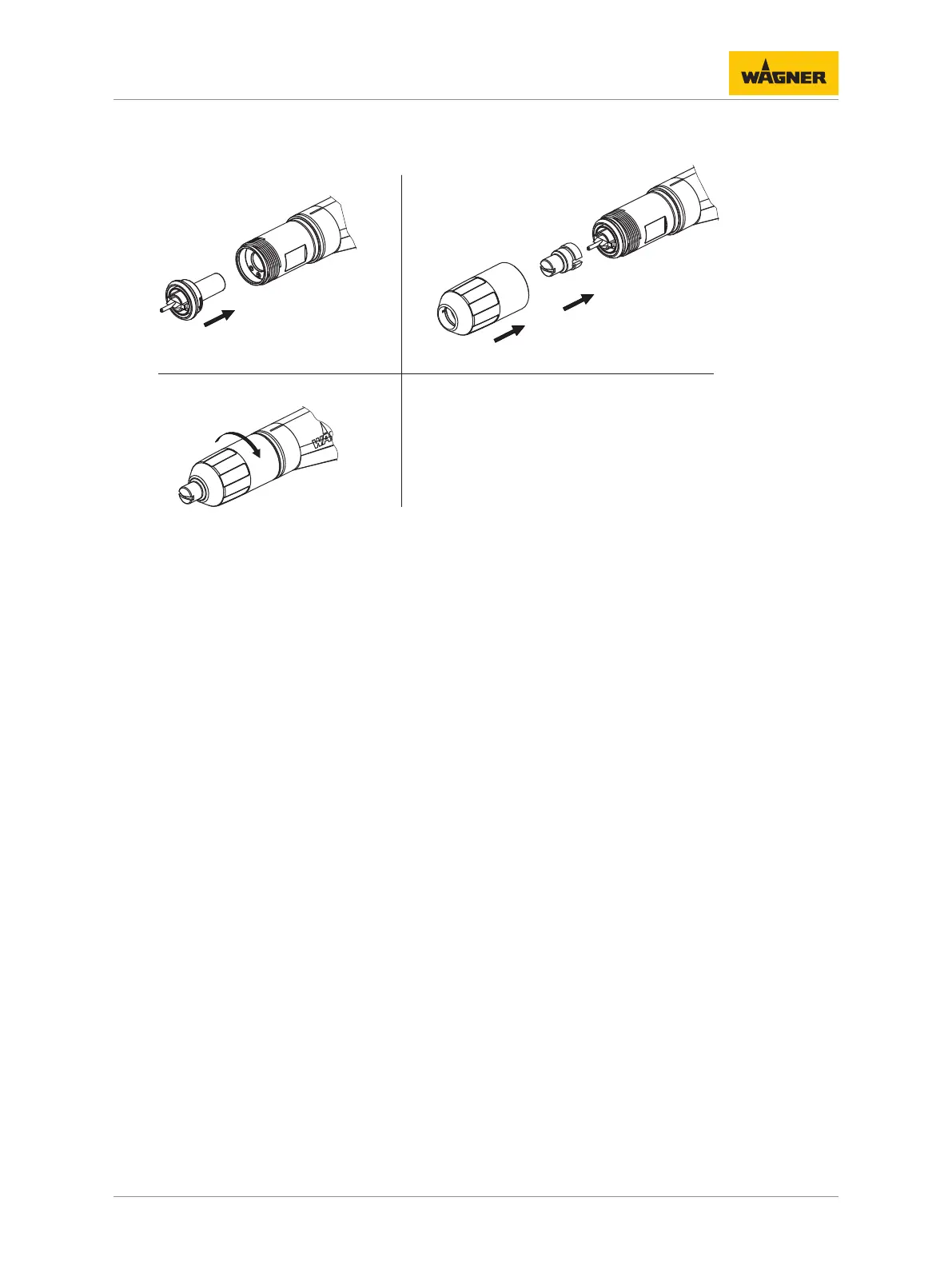

8.4.2 Fitting the Flat Jet Nozzle
2.
4.
3.
P_04983
1. Before inserting the electrode holder, the spring contact of the gun body and contact
surface of the electrode holder should be checked.
The spring contact must be clean and move easily, the gun body must also be clean
and free of powder deposits.
2. Insert electrode holder into gun housing.
3. Attach flat jet nozzle to electrode holder and attach union nut.
4. Screw union nut onto gun housing until flat jet nozzle can no longer be turned by
hand.
