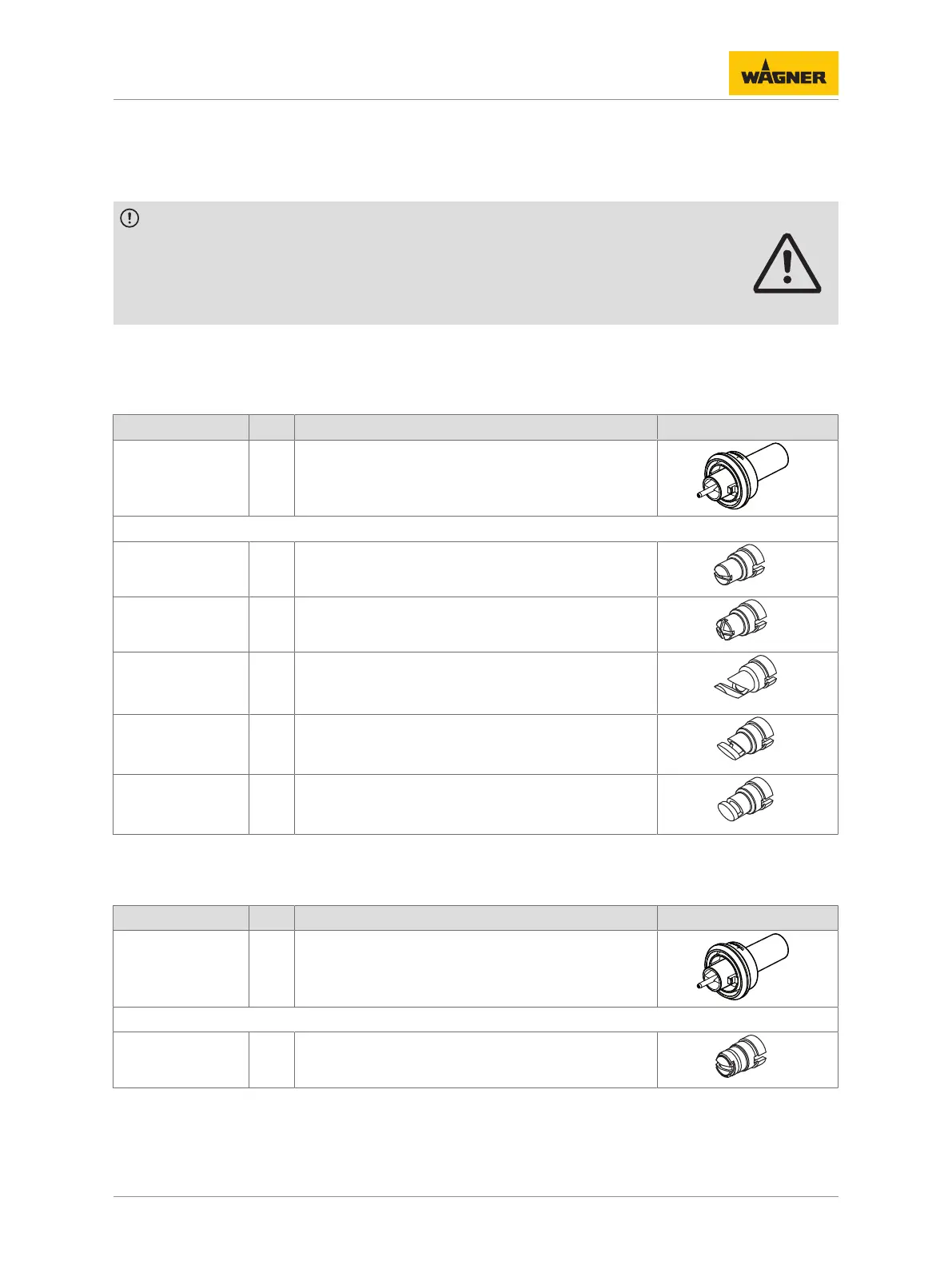

12 ACCESSORIES
12.1 NOZZLE SYSTEMS
NOTICE
Wrong combination of parts!
Powder can be deposited in gaps and lead to incorrect coatings due to paint carryover.
4 Only use the recommended combinations!
Only the following combinations can be used! Please note the respective color coding in
parentheses!
12.1.1 Flat Jet Nozzles System X1
Order no. K Designation
2429073
♦
X1 electrode holder, cpl. ET (white)
P_01691
Can be combined with:
2420243 ♦ X1 flat jet nozzle, F1
P_04985
2428515 ♦ X1 cross nozzle, 90°
P_04987
2428283 ♦ X1 angular nozzle, 30°
P_04988
2428284 ♦ X1 angular nozzle, 45°
P_04989
2428285 ♦ X1 angular nozzle, 60°
P_04990
♦ = Wearing parts
12.1.2 X1 F Flat Jet Nozzles System
Order no. K Designation
2322529
♦
Electrode holder, X1 F ET (yellow)
P_01691
Can be combined with:
2321976 ♦
Flat jet nozzle, X1, complete
P_04984
♦ = Wearing parts
Note: Is preferably used for the PEM-X1 manual gun!
