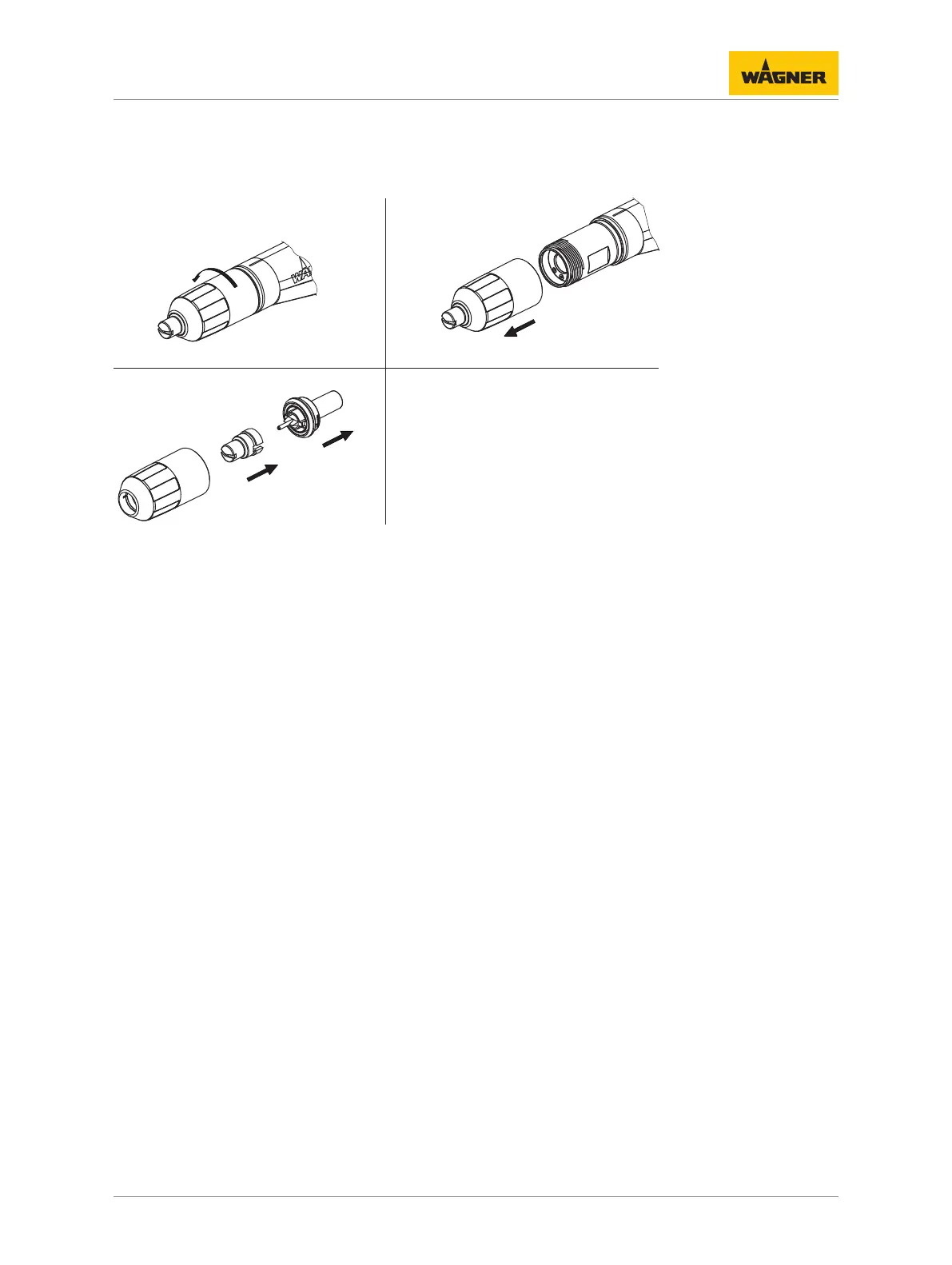

8.4 CHANGING THE FLAT JET NOZZLE
8.4.1 Removing the Flat Jet Nozzle
P_04982
1.
2.
3.
1. Unscrew the union nut from gun housing.
2. Remove the union nut with the nozzle system from the gun body.
The nozzle system remains inserted in the union nut.
Note:
If the nozzle system doesn't remain inserted in the union nut, the nozzle system and
union nut must be replaced.
3. The parts can be separated by applying slight pressure to the flat jet nozzle.
4. Remove powder residues from the removed parts and spray gun.
Note:
Never place spray gun, or parts of it, in cleaning agent.
As a rule, the protective wedge needs to be checked for wear and replaced if necessary.
