WAGNER PEM-X1 Translation Of The Original Operating Manual

Operating manual Powder Cup Gun PEM-X1 CG
8 Cleaning and Maintenance
42 Order number 2326960 | Edition 10/2022
1.
2.
3.
4.
1
2
3
3
1
2
P_01735

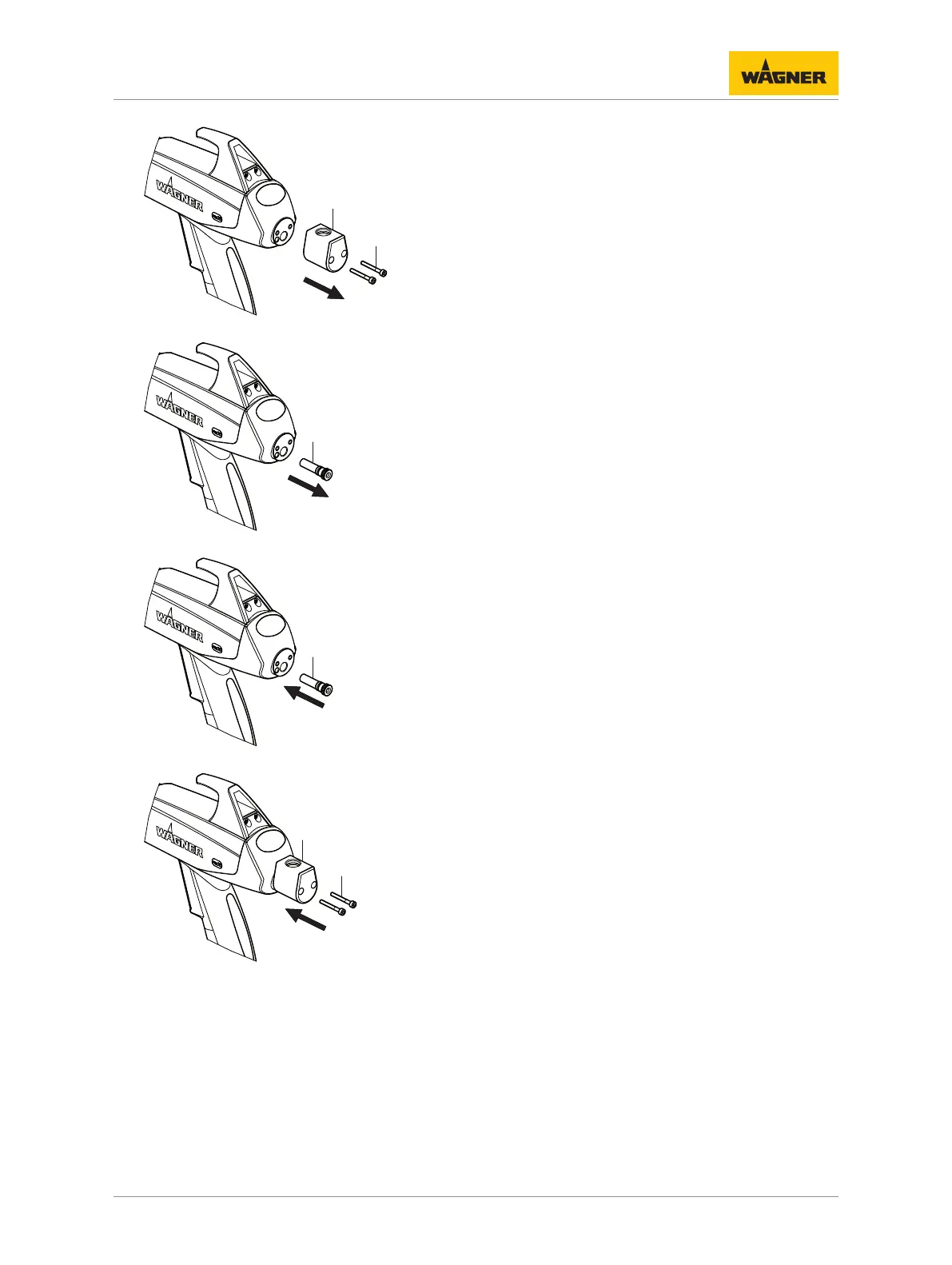

1. Remove the powder cup from the gun. Unscrew screws 1 and remove connecting part
2 from gun body.
2. Pull collector nozzle 3 out of gun body.
3. Carefully insert new collector nozzle 3 in gun body.
4. Attach connecting part 2 to gun body and fasten with screws 1 (torque 40±10 Ncm).
8.11 REPLACING THE CONNECTING TUBE
The connecting tube can be replaced if worn (for order number, see Connecting Tube,
Collector Nozzle [859]).
