Operating manual Powder Cup Gun PEM-X1 CG
13 Spare Parts
Order number 2326960 | Edition 10/2022
59

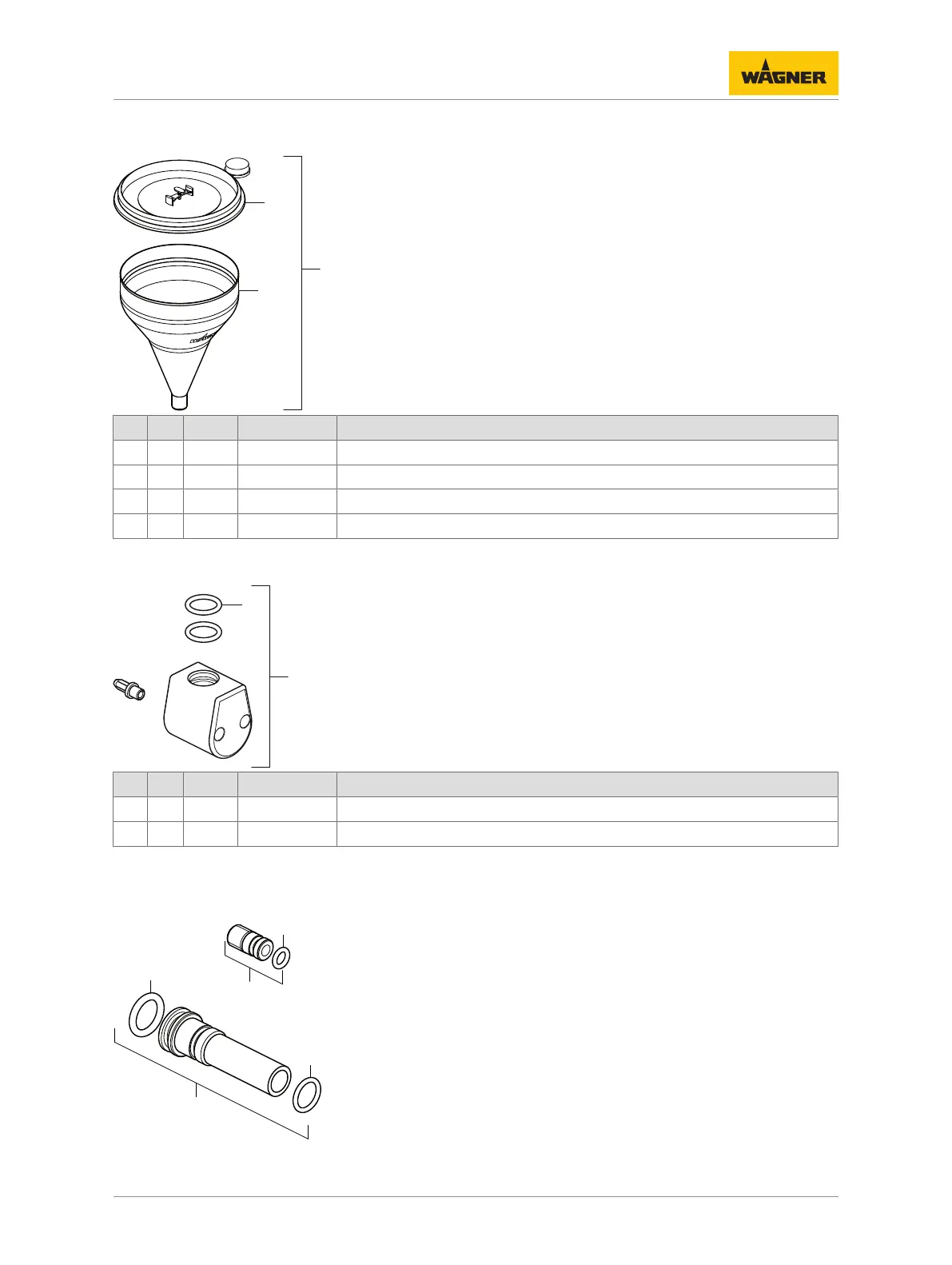

13.5 POWDER CUP
P_05501
4
1, 2
3
Pos
K
Stk
Order no.
Designation
1
1
2324139
1 x cup with cover
2
1
2324140
5 x cup with cover
3
1
2323145
Cup, X1
4
1
2322906
Cover
13.6 CONNECTING PART
1
2
P_01738
Pos
K
Stk
Order no.
Designation
1
1
2324132
Connecting part, ET
2
♦
2
9971313
O-ring
♦
= Wearing parts
13.7 CONNECTING TUBE, COLLECTOR NOZZLE
1
2
3
4
5
P_01739
58
60
