Operating manual Powder Cup Gun PEM-X1 CG
6 Assembly and Commissioning
22 Order number 2326960 | Edition 10/2022

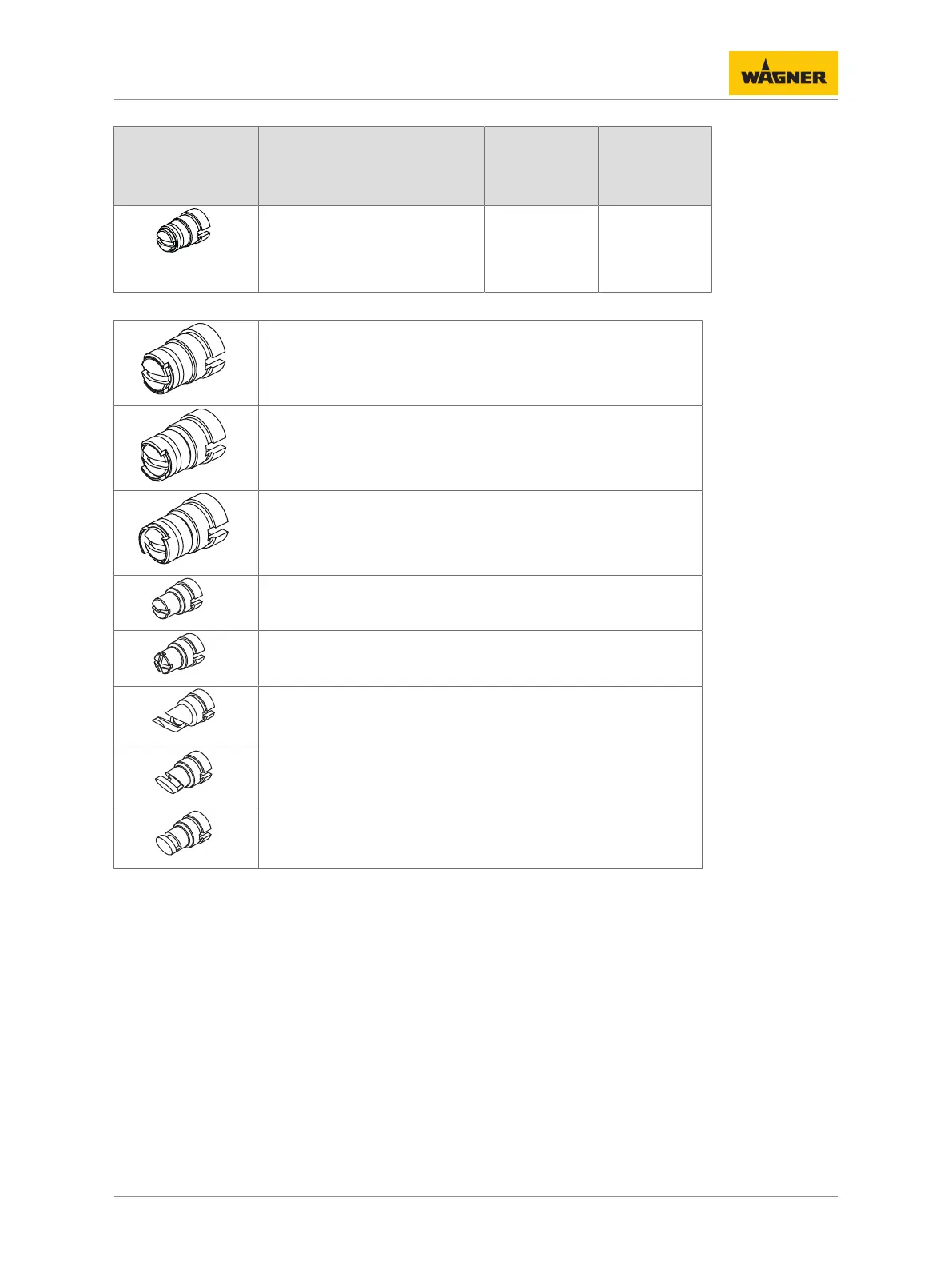

Nozzle Application Distance to
Work piece
(mm)
Powder dis-
charge (g/min)
Universal
Deep and complex part geome-
tries
Parts with large surfaces
120 – 300 50 – 300
The spray width can be adjusted by the sliding ring.
Sliding ring at rear, wide cloud
Cloud opening angle approx. 80°
Sliding ring at front, narrow cloud
Cloud opening angle approx. 60°
Sliding ring at front, turned by 90°, extra narrow cloud
Cloud opening angle approx. 40°
Standard flat jet nozzle with wide area of application
X1 cross nozzle, 90°, for narrow, spot coating
Single powder spray deflection nozzle in 3 fixed angles (30°, 45°
and 60°)
