ELECTRICAL CIRCUIT – OPERATOR

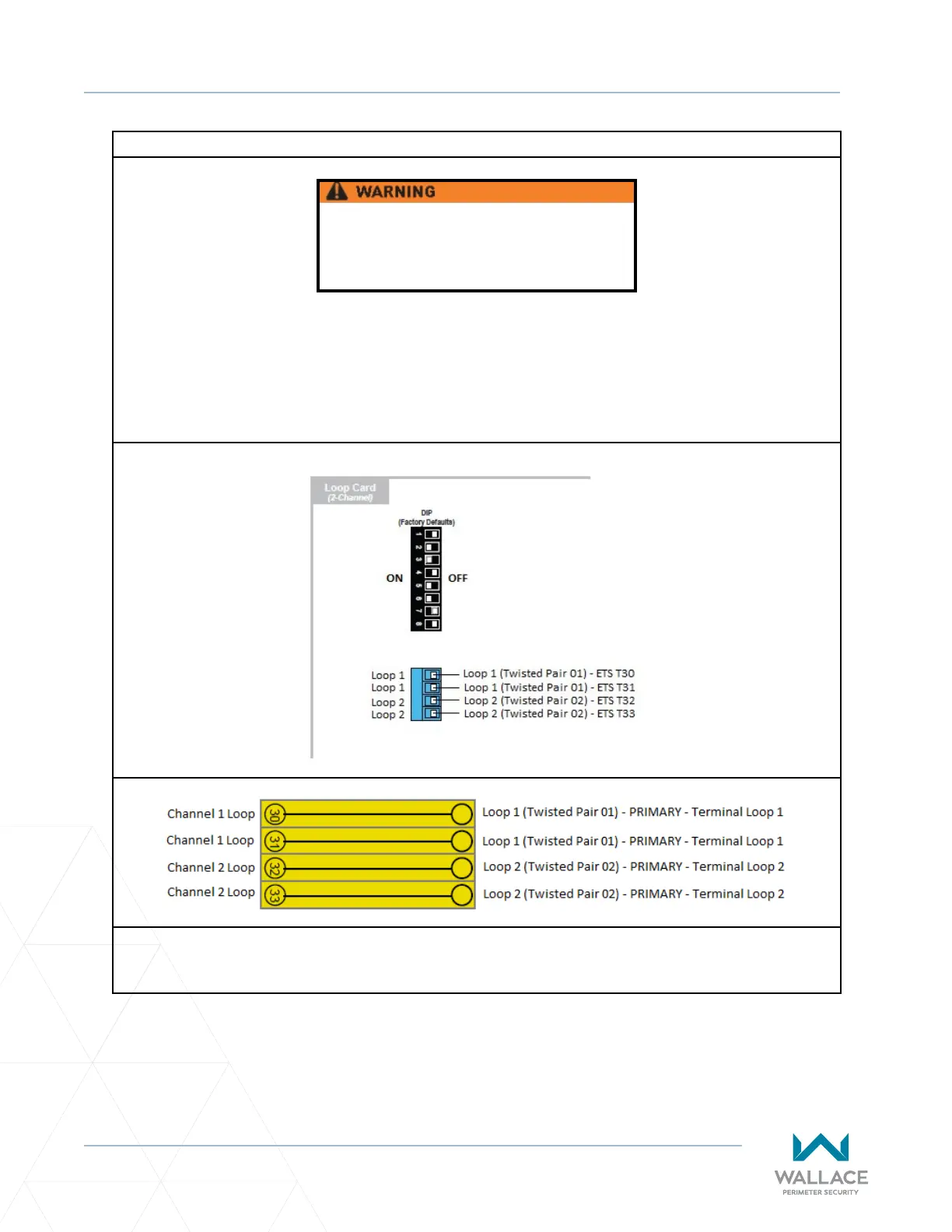

8. VEHICLE LOOPS
Pay close aenon to the funcons
selected for each channel and congure
accordingly.
If an automac exit loop is required, a third detector relay will be required (not supplied by Wallace
Perimeter Security). This auxiliary detector should be powered from terminals #1 and #2 and wired as a
N.O. contact to terminals #1 and #3.
Call Wallace Perimeter Security Technical Support at 1 (866) 300-1110 for assistance, if required.
Always refer to site-specic drawings issued for the project you are working on for actual electrical
connecons and installaon methods.
