Wallace Perimeter Security SPEEDGATE - Page 51

SPEEDGATE Installation and Maintenance Manual Revision 1 - MAY 2023
51
SPEEDGATE INSTALLATION
3. Secure both columns using nuts/washers. Column anchor bolts should be ghtened rmly – they may
need to be loosened during guide channel installaon for PDTT (top track) models. All anchor bolts
should be ghtened to 210 -lbs (284.76 N m). See Figure 11.

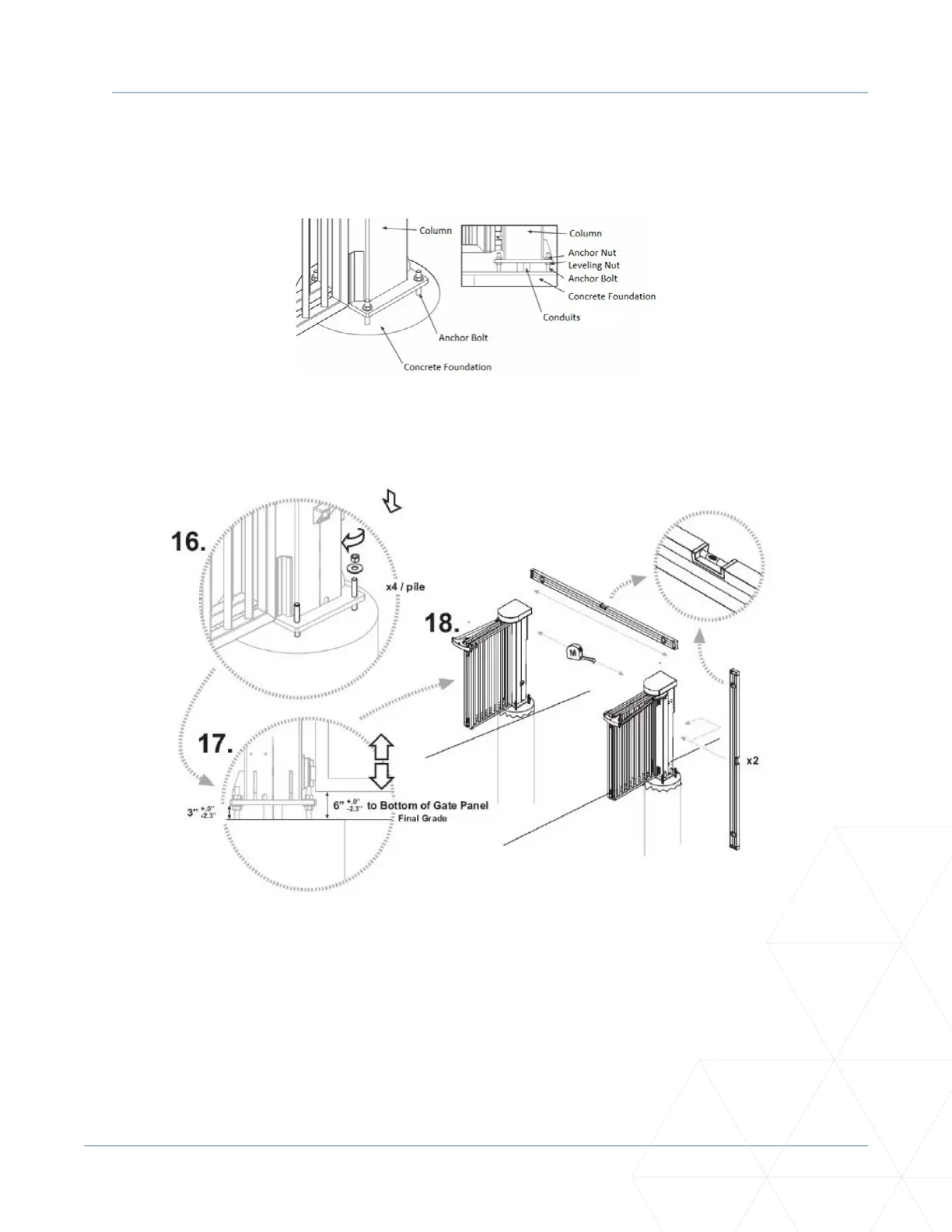

Figure 11. Securing of Columns
