Description of the printer
2
2.4. Extruder
Leg
1. Cable carrier
2. Pellet hose
3. Material sensor
4. Firecap module (see paragraph 8.11 Temperature controls)
5. Cooling fan
6. Extruder motor
7. Barrel zone (see paragraph 8.11 Temperature controls)
8. Nozzle zone (see paragraph 8.11 Temperature controls)

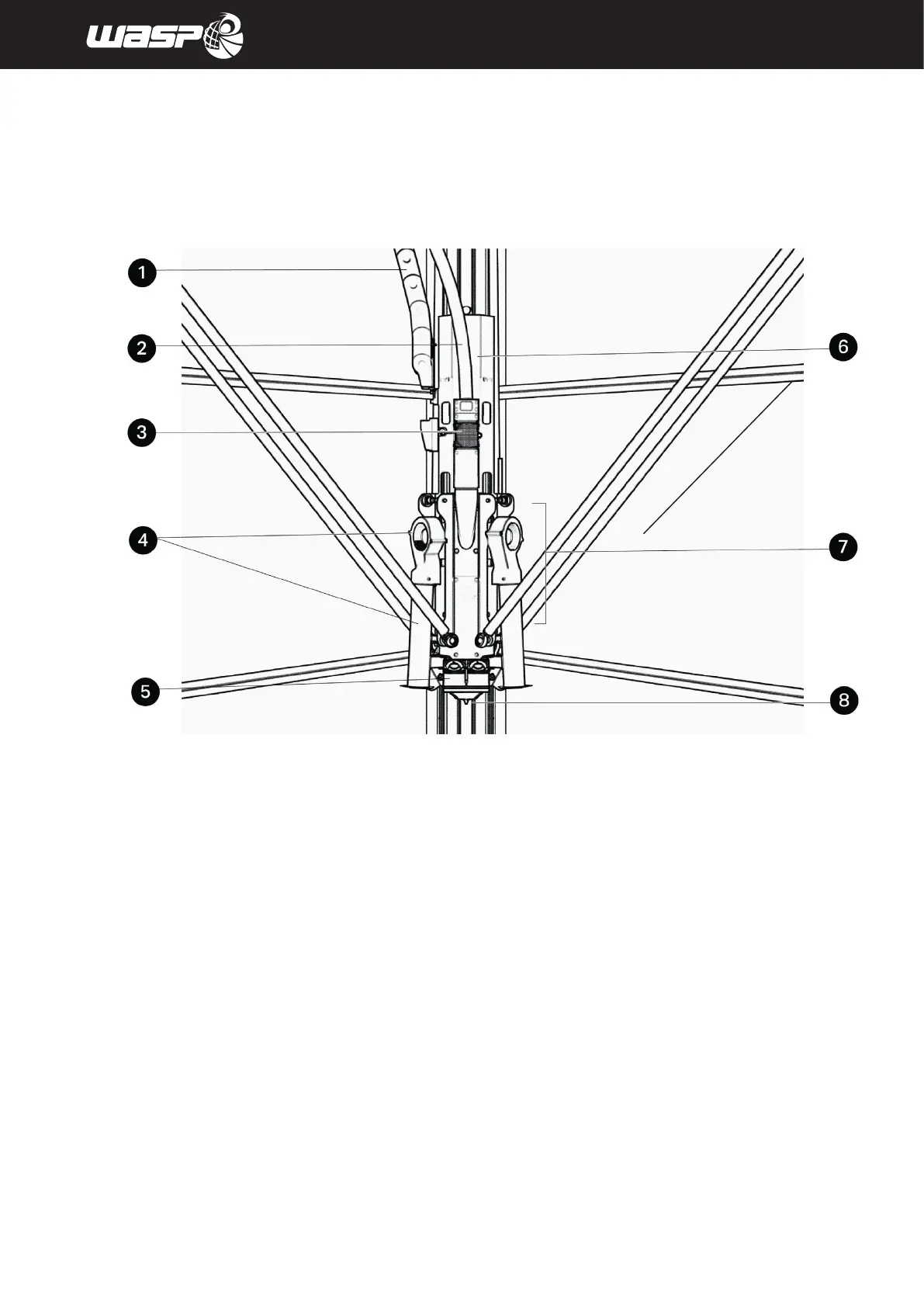

Fig. 2.4 - Extruder
