Ordinary and extraordinary maintanance
7
7.3.3. Manual leveling
ATTENTION:
The manual leveling procedure is carried out by the Manufacturer authorized operator during the
installation.
Incorrect manual levelling procedures can cause problems in machine operation and print quality.
The manual leveling is a procedure that allows you to adjust the inclination of the buildplate in order to match the
printer’s reference. A bad leveling can be the cause of a non-homogenous sticking to the bed on the first layer.
The command is found in ADVANCED>TOOLS>MANUAL LEVELING
Based on the three-point principle, the machine moves the tool to the vertices of an equilateral triangle
proportional to the aluminum bed.(fig 7.3.3 a)
You will need a proper tool with 1 mm thickness to set the distance between the bed and the nozzle.(fig 7.3.3 b)
At each point, by rotating a screw, the distance between the tool and the bed is adjusted. (fig 7.3.3 c-d)
Once completed, verify that the height in the center of the bed is similar to the other points. (fig 7.3.3 f)
If it’s not, contact the Manufacturer for support.
).

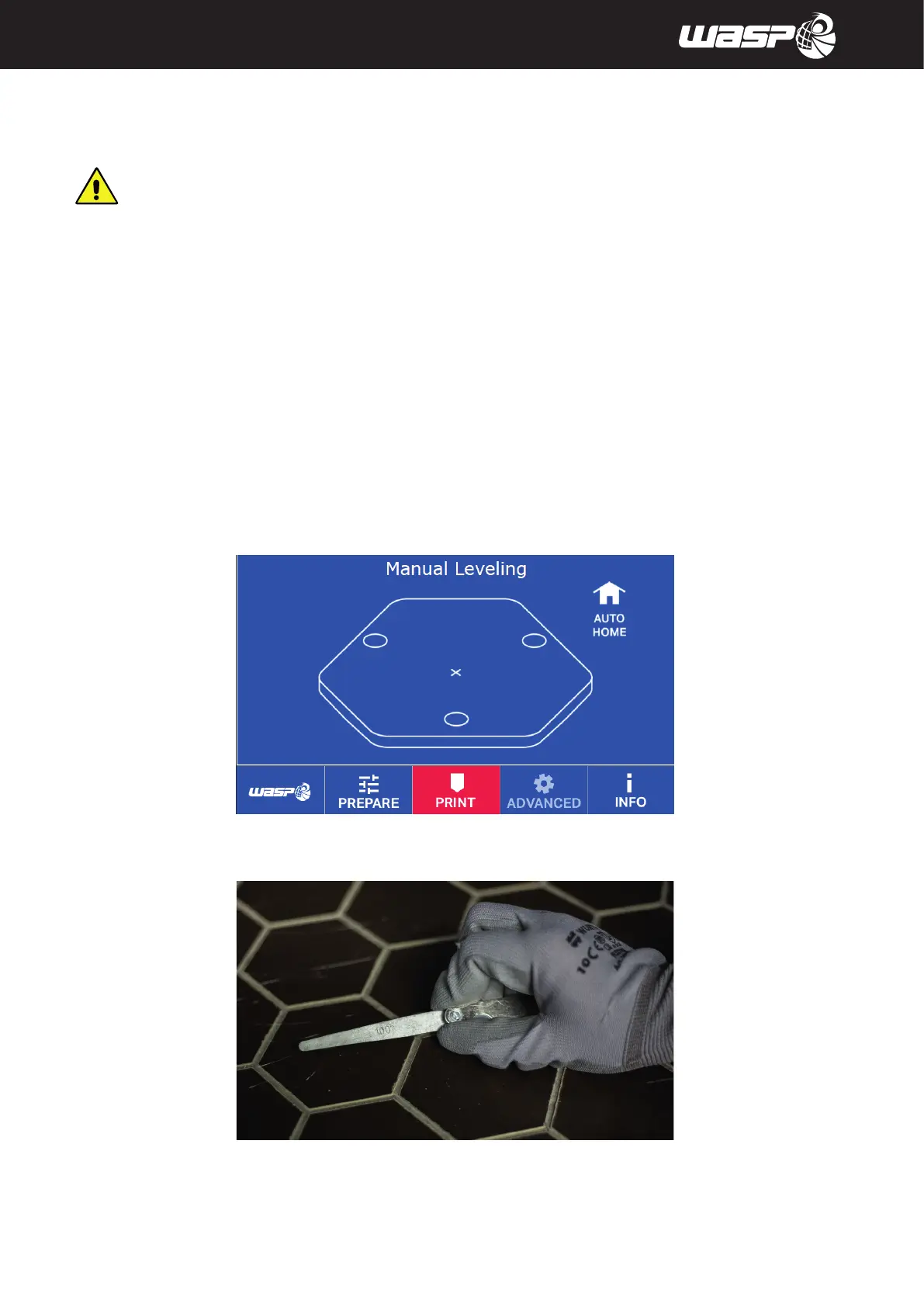

Fig. 7.3.3 - Manual Leveling
fig 7.3.3 b
fig 7.3.3 a
