Ordinary and extraordinary maintanance
7

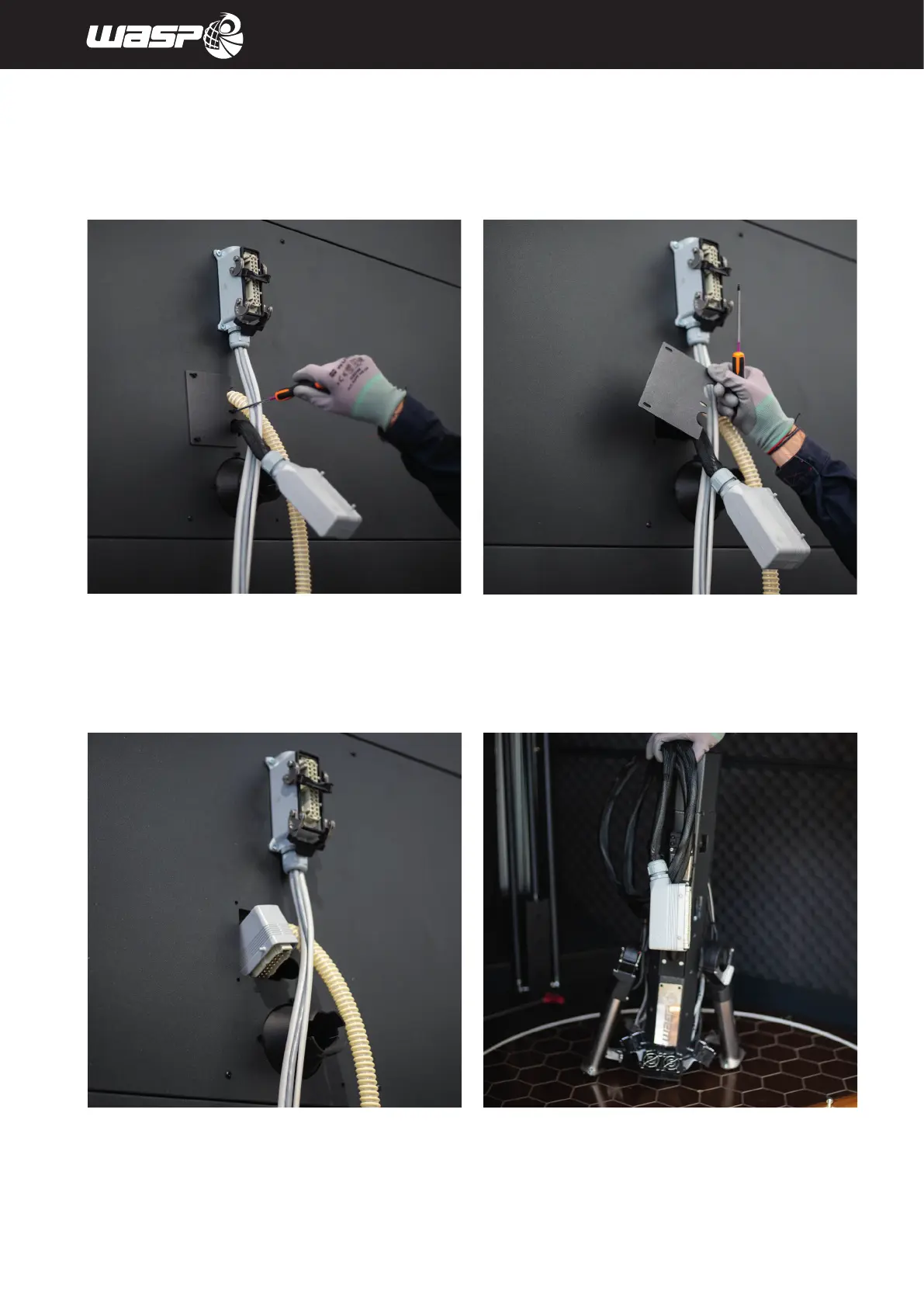

fig 7.3.2 m - Uncrewing the panel fig 7.3.2 n - Removing the panel
fig 7.3.2 o - Removing the connector from the inside fig 7.3.2 p - Remove the extruder from the machine
Fig. 7.3.2 - Changing the extruder
