7.2.1. Pellet filter
Clean or replace filter
The inlet for the pellet on the extruder has a filter that protects particles from being released on the
machine.
In order to maintain the filter proceed like this:
1. Use a cross screwdriver to loosen the screws on the side of the cover. (Fig 7.2.1 a)
2. Remove the the cover by pulling it (Fig 7.2.1 b)

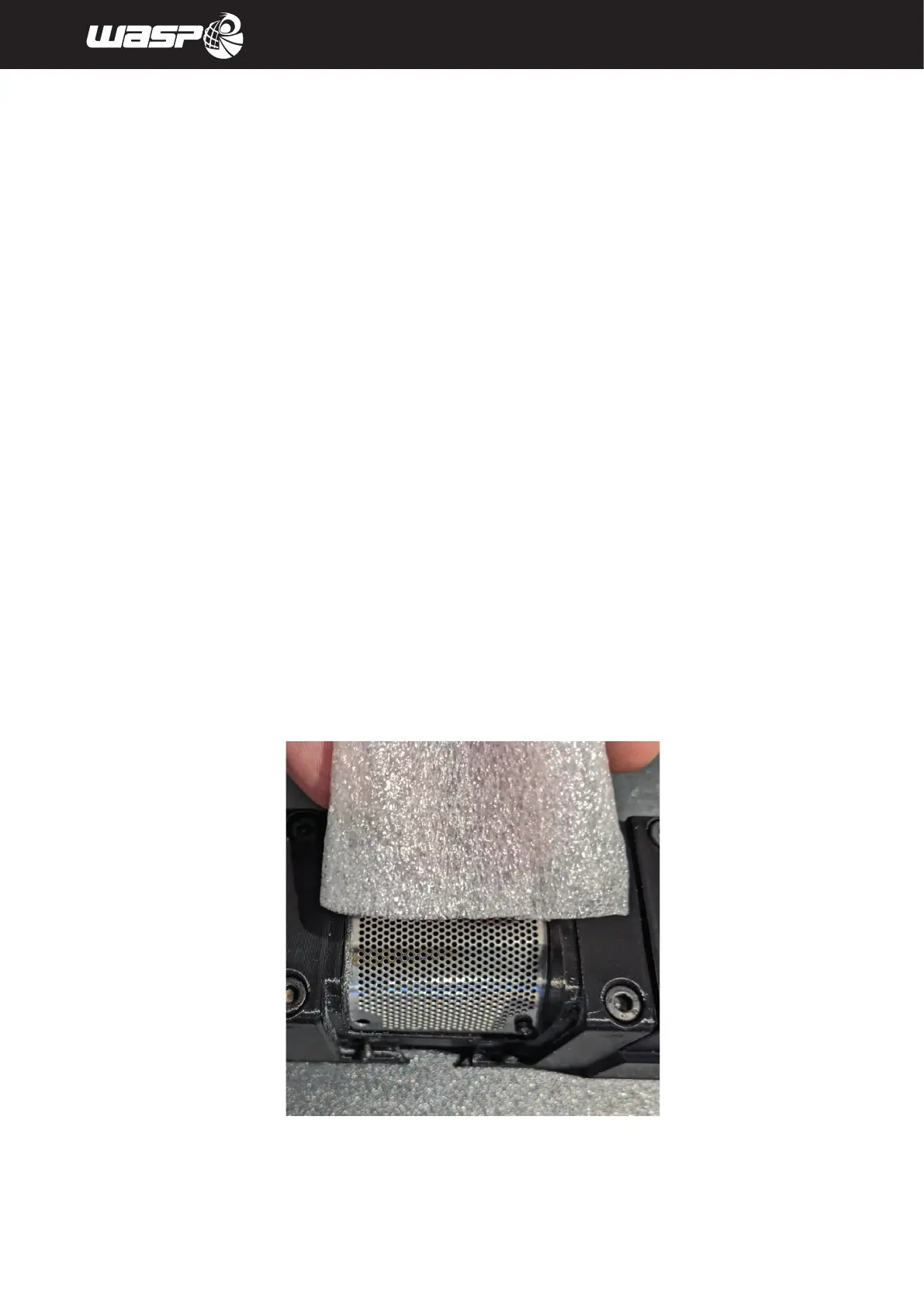

3. Extract the filter and clean it with compressed air or replace it. (Fig 7.2.1 c)
fig 7.2.1 c
Fig. 7.2.1- Cleaning the pellet filter
