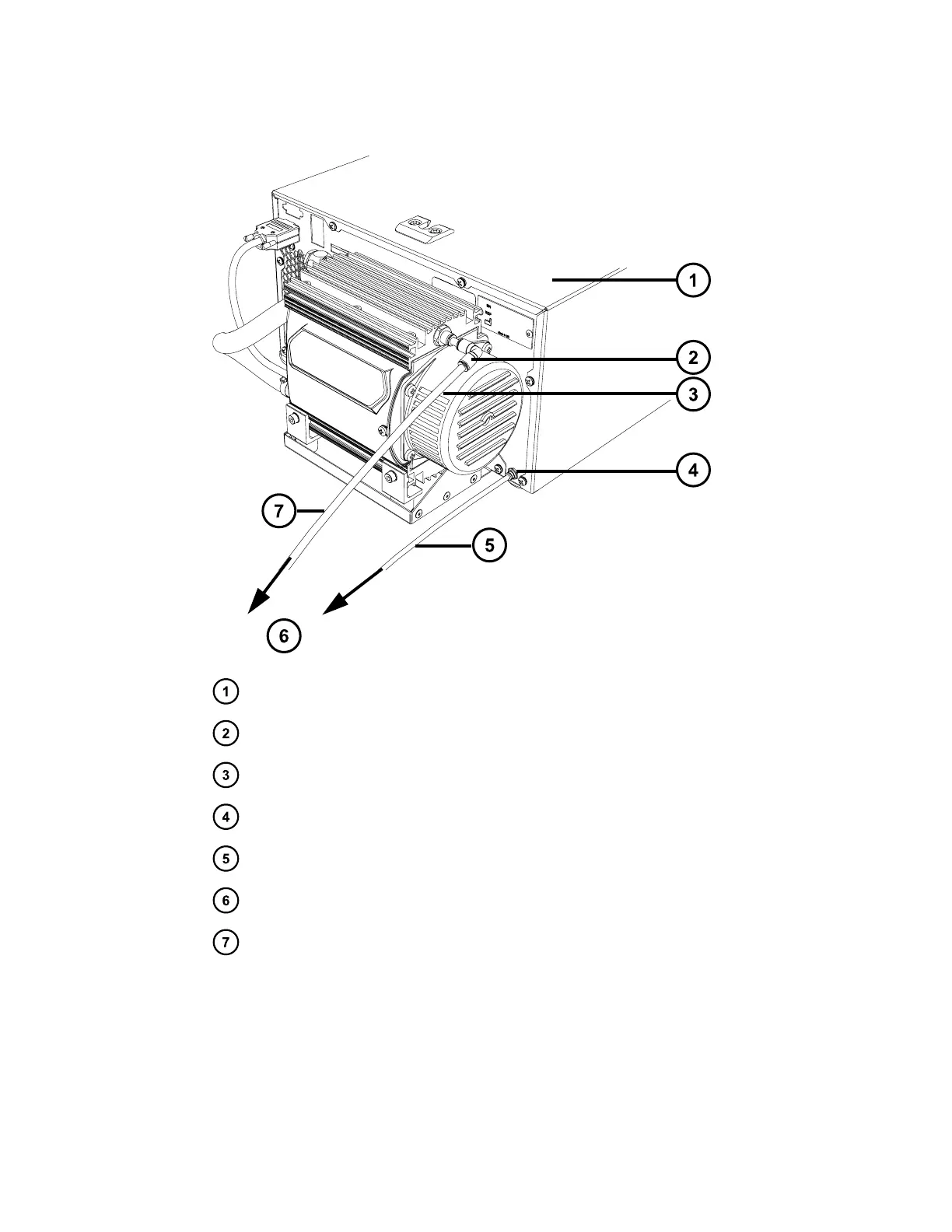

Figure D–14: Waste connections
ACQUITY QDa detector
6-mm elbow
Diaphragm pump (Standard QDa only)
4-mm bulkhead fitting (KAB only)
4-mm O.D. drain tubing (KAB only)
Route both tubes to the bottle-stopper assembly on the 2.5-L waste container
6-mm O.D. tubing (Standard QDa only)
Note:
• Performance QDa detectors use a separate rotary backing pump, not an attached
diaphragm pump.
• The 4-mm bulkhead fitting and 4-mm O.D. drain tubing is only used with “KAB” models
and earlier.
June 15, 2017, 715003956 Rev. F
Page 105
