Notice: To prevent damage to the instrument, ensure that these criteria are
met:
• The drain tubing is not submerged in solvent within the waste container.
• The waste container is not used to collect solvent waste from other
sources.
3. Secure the bottle-stopper onto the 2.5-L bottle (see the figure “2.5-L waste container
tubing” in step 4).
Note: The Performance QDa detector uses a rotary backing pump, which does not require
the 6-mm O.D. drain tube. To minimize unused tubing, cut the 3-m length of 6-mm O.D.
tubing close to the waste container.
4. Position the bottle in a readily accessible location below the instrument.

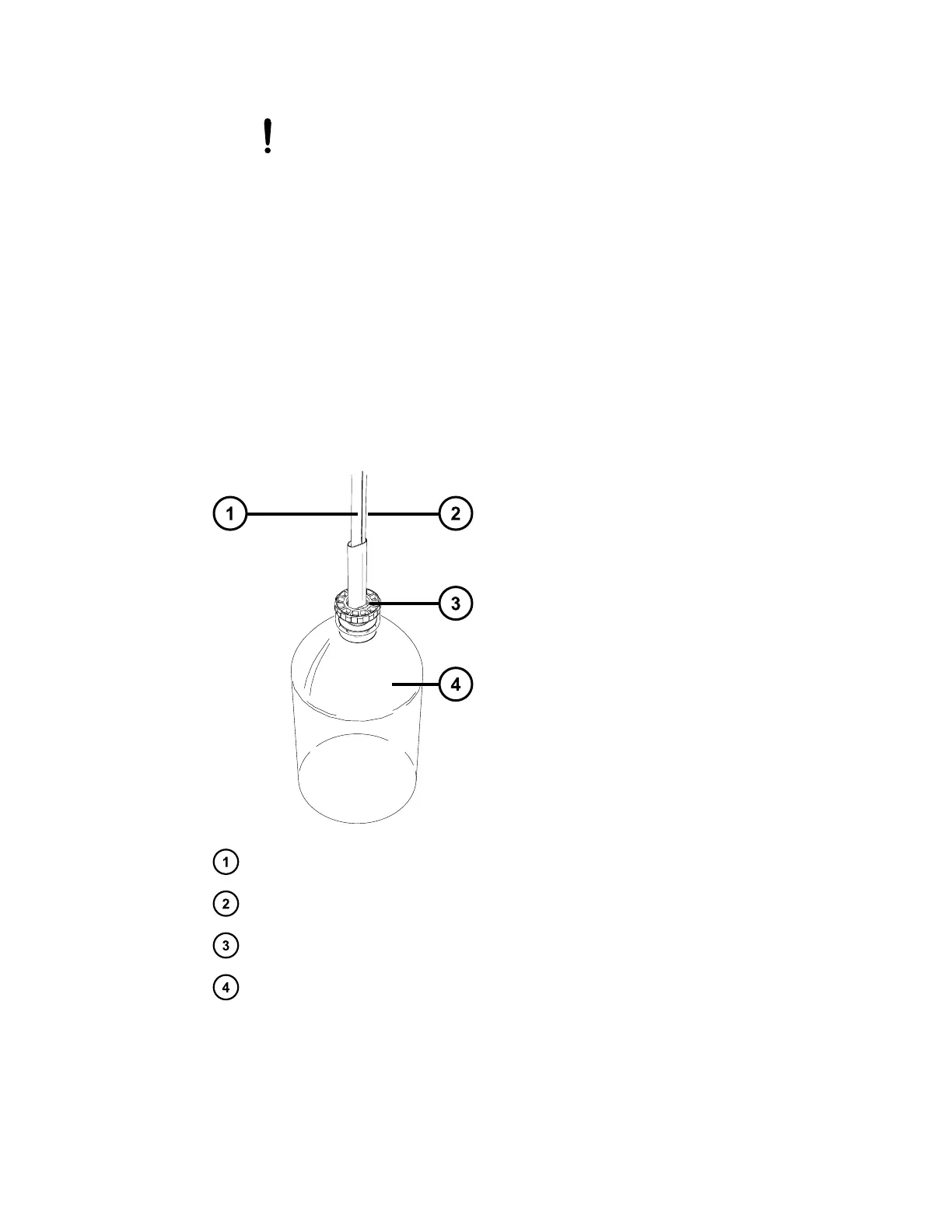

Figure D–15: 2.5-L waste container tubing
6-mm O.D. tubing (3-m hose)
4-mm O.D. drain tubing
Bottle-stopper
2.5-L bottle
