• To waste (blue PEEK tubing connector, in position 1 or 5, depending on the mode of
operation: divert mode/loop injection mode).
• Loop between positions 1 and 4 on the diverter valve (loop injection configuration only).
5. Lift the diverter valve upward to free the hooks on the diverter valve mount on the left side
of the device casing from the slots on the mounting bracket on the instrument case.

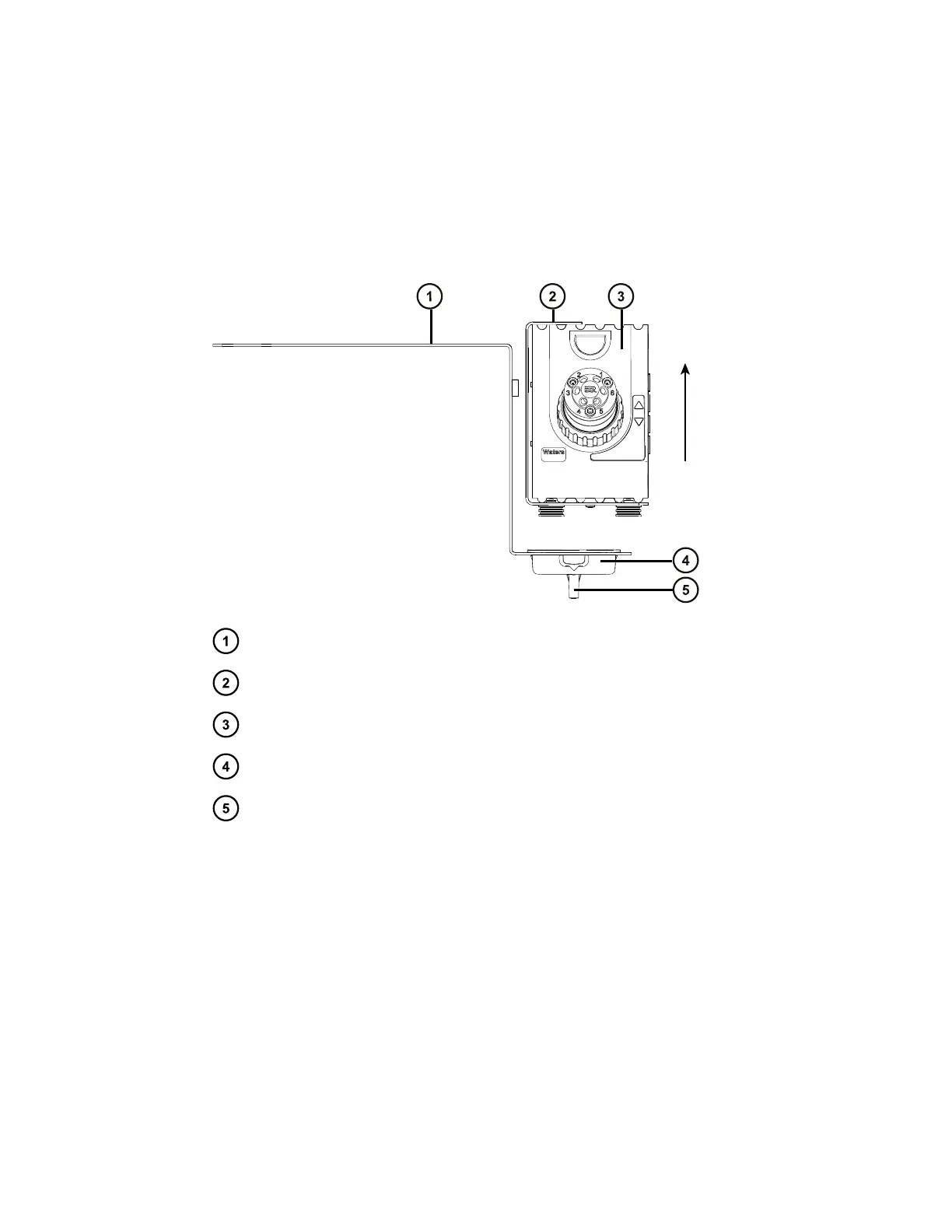

Figure E–16: Removing the diverter valve from the mounting bracket
Diverter valve mounting bracket
Diverter valve mount
Diverter valve
Drip tray
Drip tray waste spur
6. Use the 1/4-inch hex nut socket wrench to unscrew the retaining nuts in the recessed holes
on the diverter valve mounting bracket on the top of the QDa Detector instrument case,
and remove the mounting bracket.
