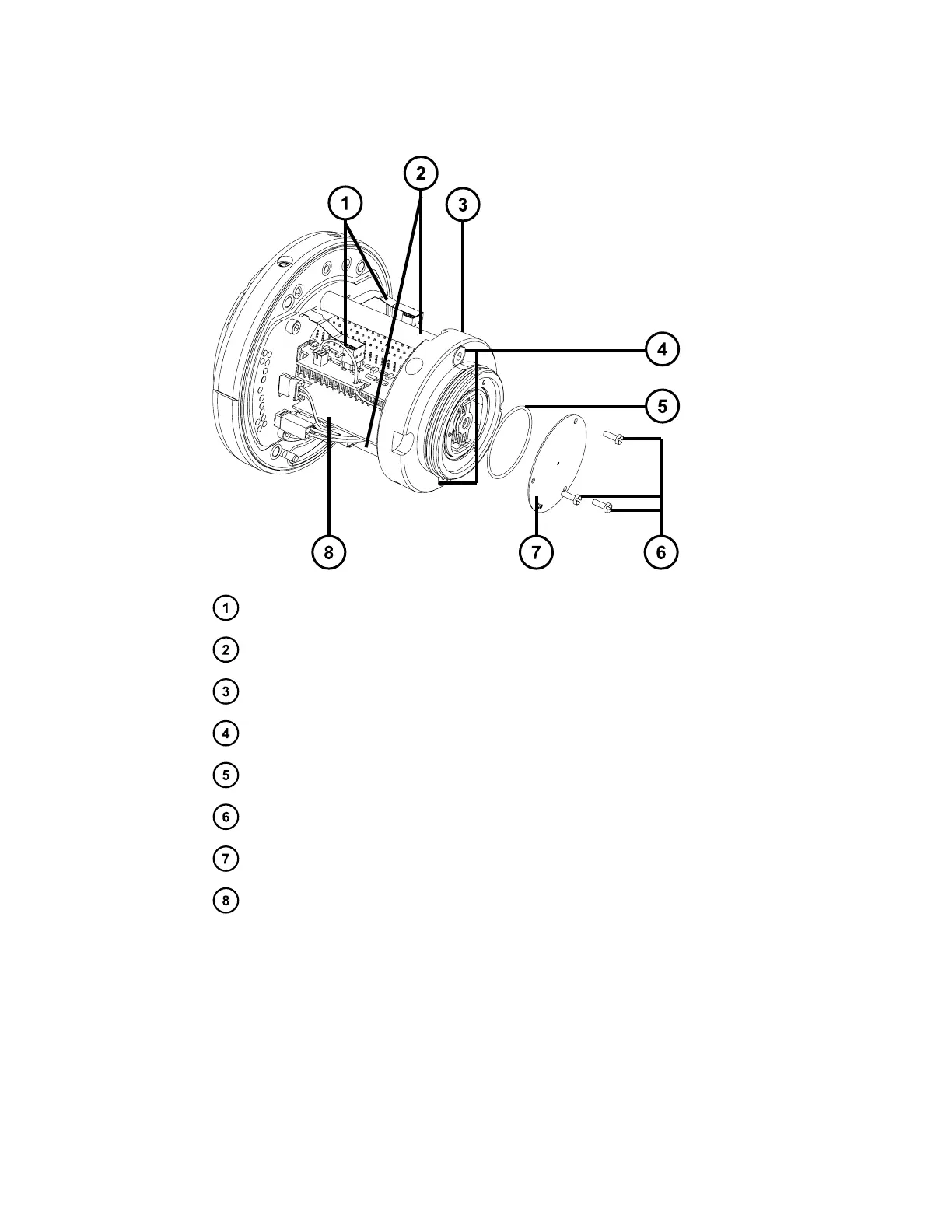

Figure 3–9: Removing the differential aperture
Electrical connectors
Ion guide support rods
Differential aperture support
Differential aperture support screws
O-ring
Differential aperture securing screws
Differential aperture
Ion guide
6. Disconnect the 4 electrical connectors from the ion guide, leaving them attached to the
pumping block.
