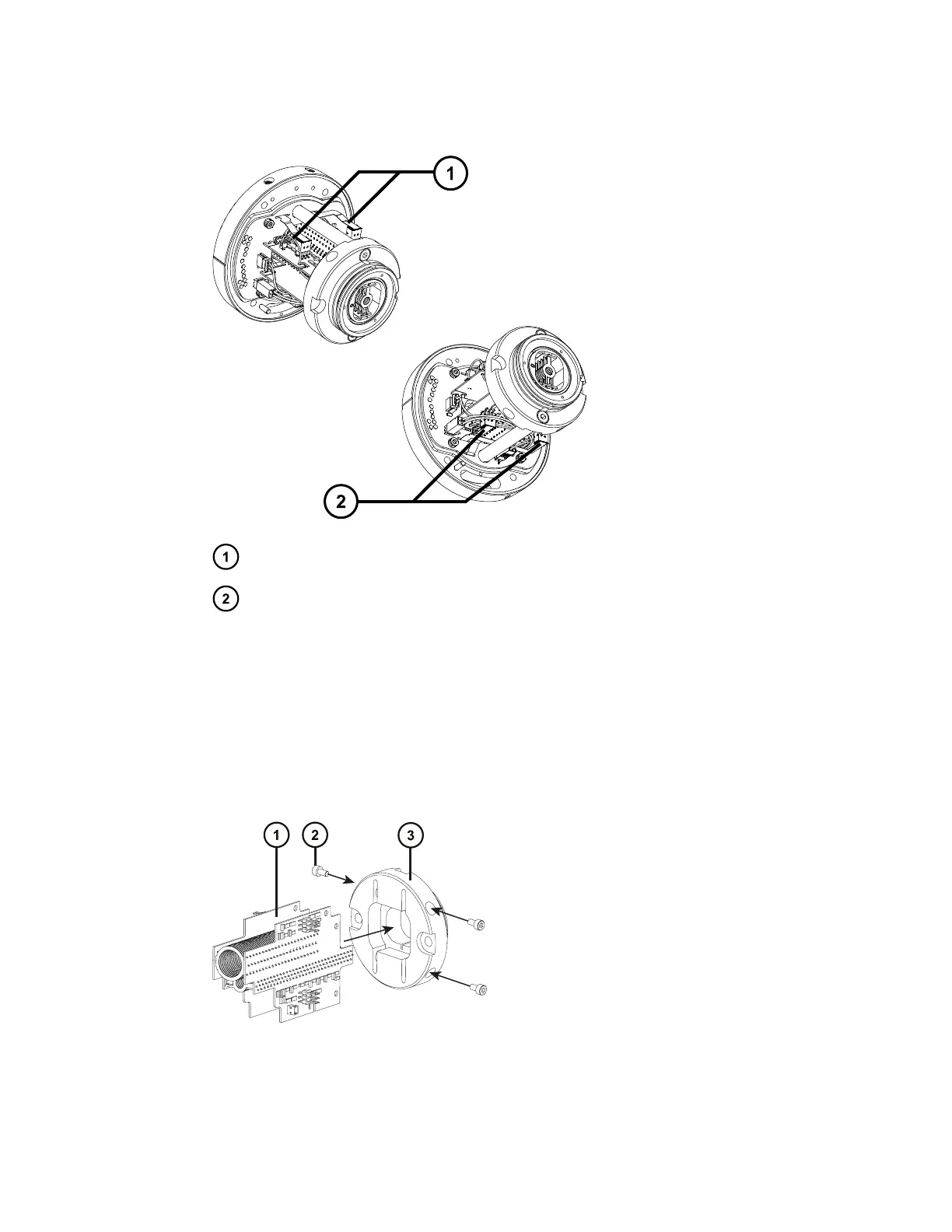

Figure 3–10: Ion guide – electrical connector
Ion guide electrical connectors – top view
Ion guide electrical connectors – underside view
7. Remove the 2 screws securing the differential aperture support to the ion guide support
rods using the 3-mm hex wrench, and then remove the differential aperture support and ion
guide from the pumping block.
Note: The ion guide is attached to the differential aperture support.
8. To detach the ion guide from the differential aperture support, remove the 4 ion guide
securing screws using the 2.5-mm hex wrench.
Figure 3–11: Removing the ion guide
