Wayne-Dalton 800 - Sensing Edge

www.Wayne-Dalton.com
349981 REV2_05/17/2016
©
Copyright 2016 Wayne Dalton, a division of Overhead Door Corporation
18
Installation (continued)

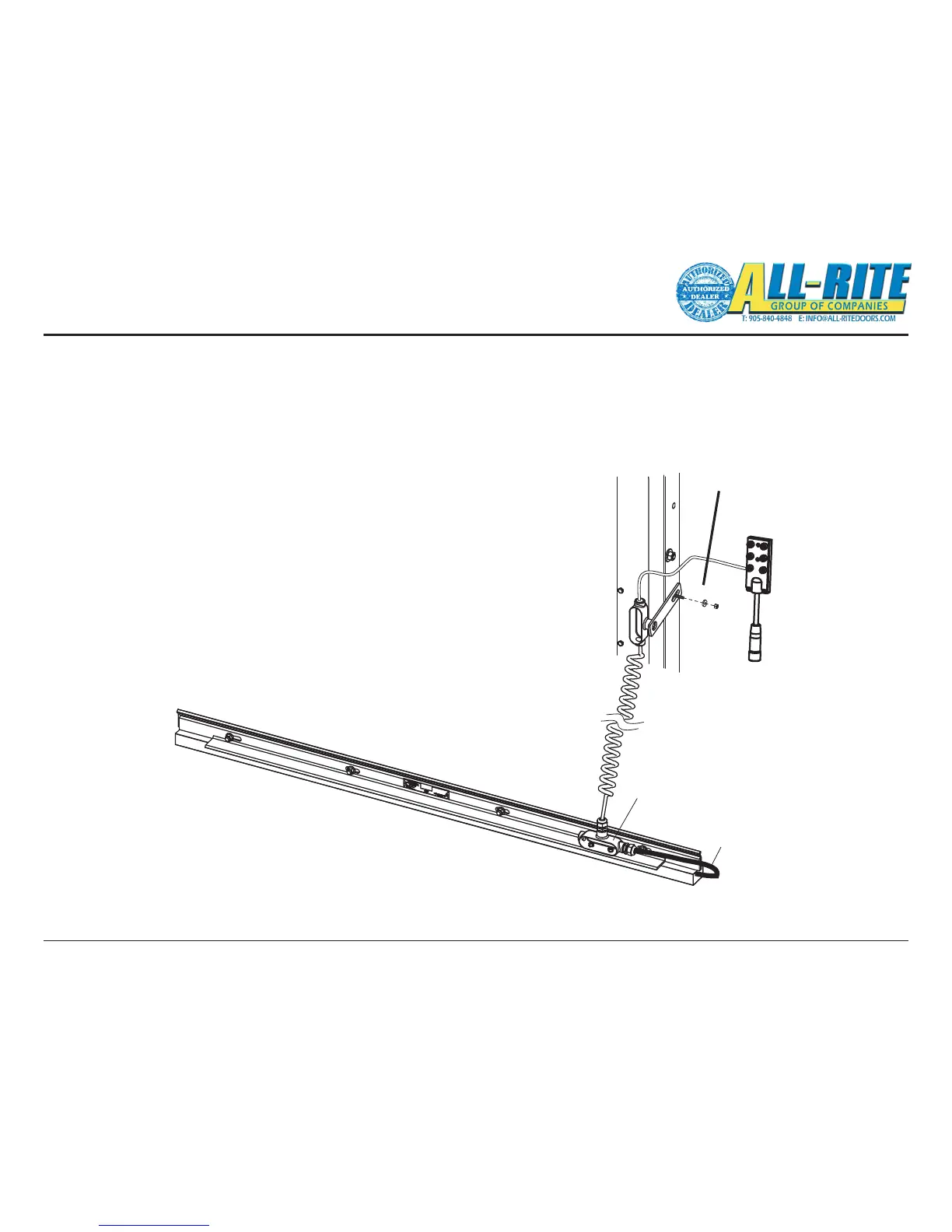

Fig 4–T(b)
14. MOUNTING ... (continued)
E. Sensing Edge conduit box mounting
Sensing Edge was attached to door curtain on page 13, Step 10E.
1. If not factory installed, connect the coil cord to the sensing edge inside the
sealed bottom bar mounted conduit box.
2. Fasten the coil cord conduit box to the drive-side guide, using the supplied
bracket and accessible guide assembly bolt at approx. 2/3 of door opening
height Fig. 4–T(b).
3. Route coil cord to conduit box mounted on guide rail. Ensure that coil cord
remains free from tangling on other components or xtures.
4. Connect the coil cord wire to the supplied 3-wire M12 cable inside the conduit
box. Use only the Black and White wires, cut o the Red wire.
5. Route the supplied M12 cable from the side mounted conduit box to the
junction box connector position 1 labeled “Sensing Edge” FIG 5-J page 28.
Junction
Box
S
E
N
S
I
N
G
ED
G
E
Sensor Conduit Box
Coil Sensor Cable
Guide
Mounted
Sensor
Conduit
Box
Guide
Sensor Cable
Guide Assemble Bolt
}
