1. INSTALLATION DATA SHEET
A. Your “INSTALLATION DATA SHEET” looks like Fig. 3–A. It is found inside the door hardware box. You will need to refer to the data on this sheet during
installation. Record the pertinent data on page 7 of this manual as a backup.
B. Verify that the “Factory Order Number” on the door components matches the one shown on the INSTALLATION DATA SHEET.

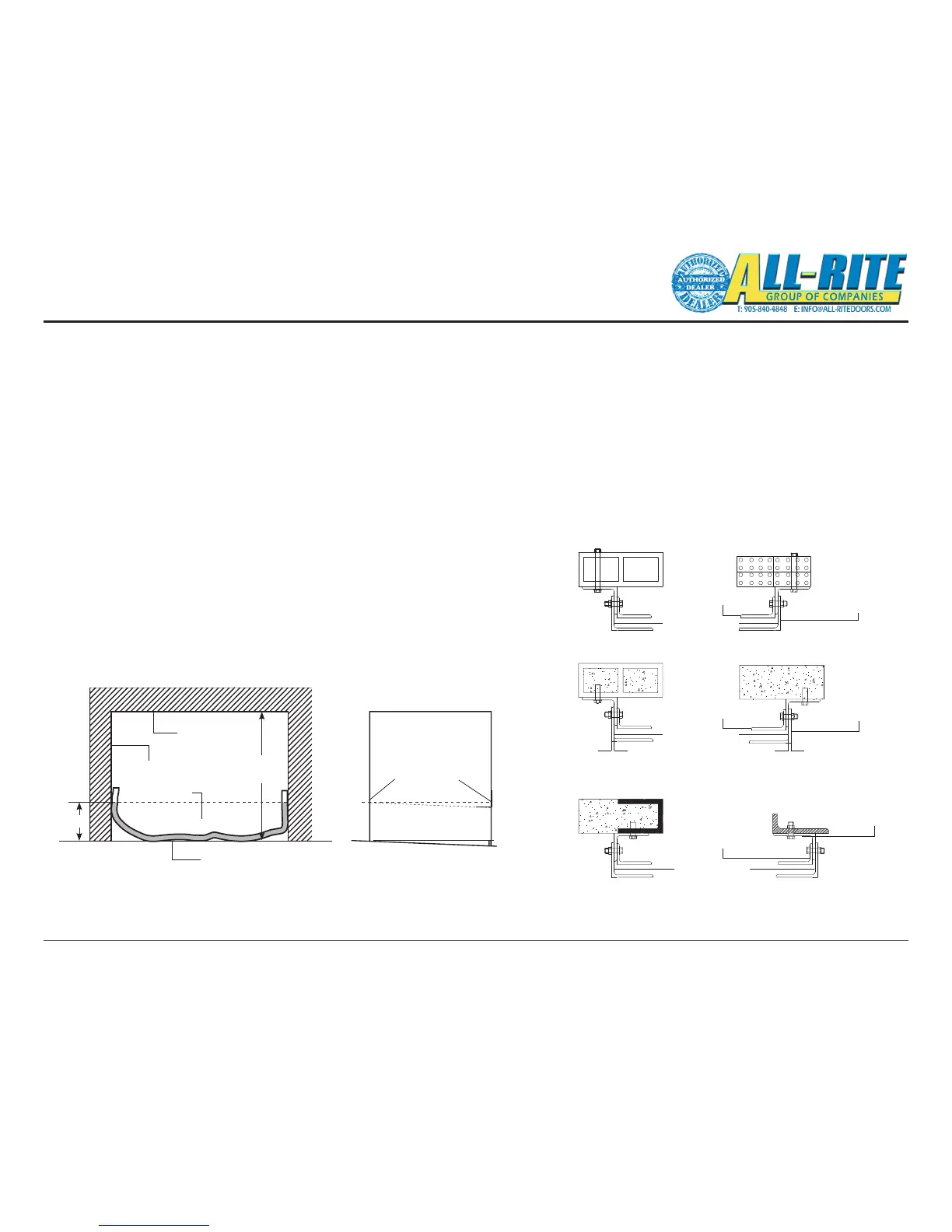

2. PRE-INSTALLATION CHECK LIST
Ensure the door installation can be accomplished before proceeding.
• Check that the wall opening, Fig. 3–B, matches the Opening Width and Height shown on the Installation Data Sheet.
• Check that the sill is level and plumb.
• Verify the guides you received are suitable for the jambs. Compare the guide type on the Installation Data Sheet with Fig. 3–C.
V
V
Fig 3–A
Fig 3–B
Wall Angle
“Z” Guide
Outside Angle
“E” Guide
Middle Angle
Wall
Angle
“C” Dimension
Header
* Laser level may also be used.
Shim equal to difference
UNEVEN FLOOR (exaggerated for
clarity)
Jamb
Water Level*
Sill
Opening
Height
Appox 5’
Difference
Level Marks
Pre-Installation Check List
Middle Angle
Middle Angle
“T” Dimension “T” Dimension
“C” Dimension
“C” Dimension
To Next Page
