Wayne-Dalton 800 - Motor Wiring

www.Wayne-Dalton.com
349981 REV2_05/17/2016
©
Copyright 2016 Wayne Dalton, a division of Overhead Door Corporation
23

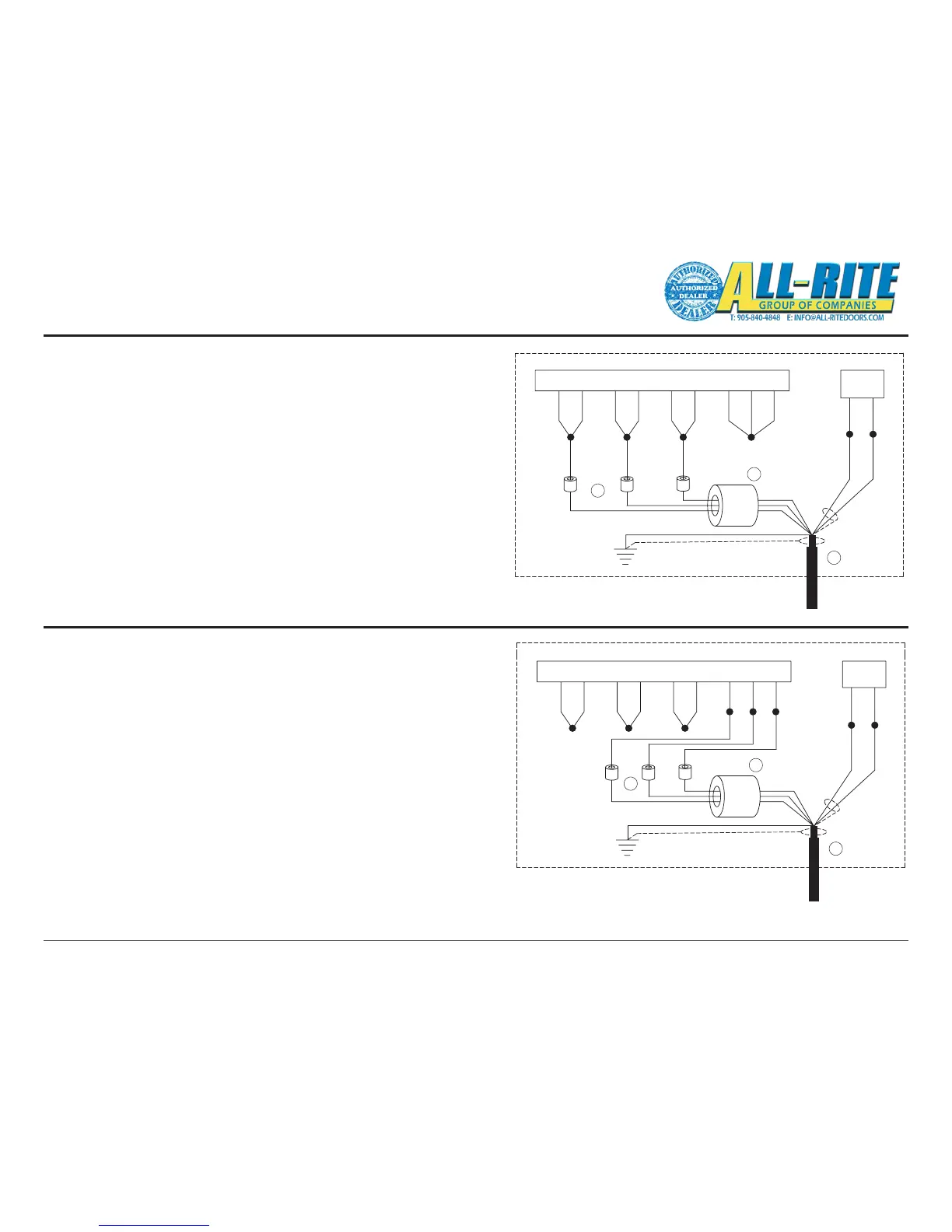

240V Motor Wiring
SUMITOMO MOTOR
MOTOR WINDINGS
MOTOR
BRAKE
VFD MOTORCABLE
TO CONTROLPANEL
T1 T7 T2 T8 T3 T9 T4 T5 T6
2 1 3
3
5 6
GRN/YELO
SHIELD
SHIELD
M N
1
SUMITOMO MOTOR
MOTOR WINDINGS
VFD MOTORCABLE
TO CONTROLP
ANEL
T4 T7 T5 T8 T6 T9 T1 T2 T3
2 1 3
3
5 6
GRN/YELO
SHIELD
SHIELD
M N
1
MOTOR
BRAKE
2
2
FACTORY WIRED, these steps and illustration are for reference only!
NOTES: 1. Slide the three black motor wires through the LARGE
suppression core (800358-0002).
2. Slide each black motor wire individually through one SMALL
EMI suppression core (800358-0001).
3. Make wiring connections as shown.
480V Motor Wiring
FACTORY WIRED, these steps and illustration are for reference only!
NOTES: 1. Slide the three black motor wires through the LARGE
suppression core (800358-0002).
2. Slide each black motor wire individually through one SMALL
EMI suppression core (800358-0001).
3. Make wiring connections as show
Fig 5–A
Fig 5–B
