DSD (DROP STOP DEVICE) FUNCTION CONTINUED...
- After completing electrical connections with the operator, the door-closing test must be conducted with special care.
CAUTION
The pawl may engage the stator during door operation if Drop Stop Device (DSD) is improperly adjusted in the factory. When testing, keep your nger
ready to push the STOP button instantly in the event that the pawl engages the stator. If pawl engages, push the STOP button immediatley! If the Drop
Stop Device (DSD) engages and the motor is not stopped immediatly, severe damage may occur to the door, the Drop Stop Device (DSD), or the motor
operator.
To disengage the Pawl from the Stator ring, refer to reset procedure below.
WARNING
If the door has incurred damage, you must secure the door before disengaging the Drop Stop Device (DSD). Otherwise serious injury or death may occur.
CAUTION
The door installer should be present when the door is rst run electrically. Keep your nger ready to push the STOP button in the event that the Pawl
engages the stator.

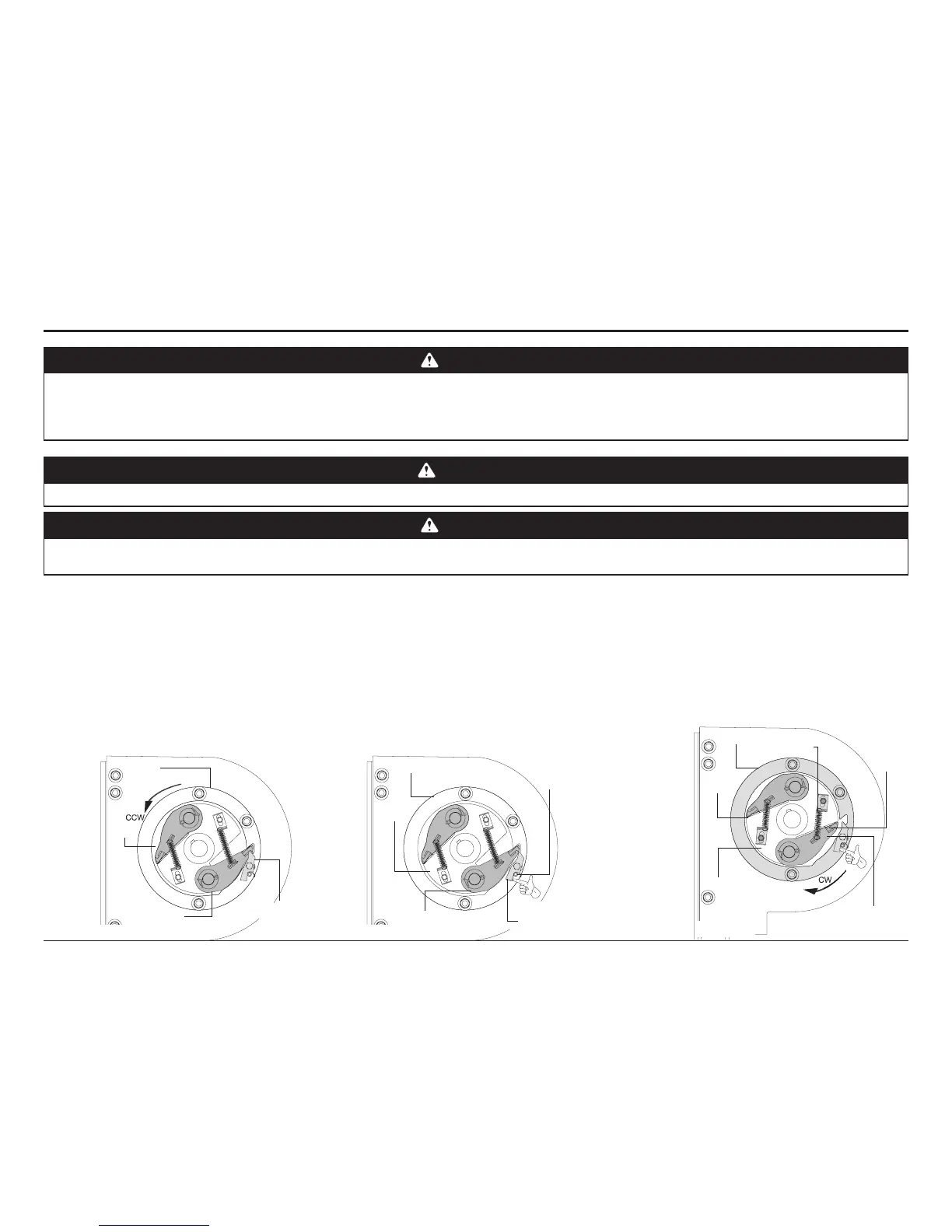

Pawl reset Procedures
NOTE: The latch will prevent the pawl from back rolling if the door bounces when engaging, as shown in Fig. 7-B.
To disengage the Pawl, the operation will need two (2) persons, one to unlock the latch and another to press “OPEN” button on the control panel to disengage
the Pawl.
- To unlock the Latch, press the bottom of the Latch with the forenger, and the elbow of the Latch is resting on the stopper pin as shown. Finger must NOT
touch the pawl or enter the stator ring, as shown in Fig. 7-C.
- Hold still while the second person presses the “OPEN” button to open the door.
- When opening the door to disengage the Pawl, continue pressing the bottom of Latch to ensure the Latch is out of the way of the catch.
- Release nger only after the Pawl is completely out of the notch of the Stator.
If the Catch gets locked by the Latch when disengaging the Pawl, press “CLOSE” button to unlock latch, and then press “STOP” immediately.
Repeat the steps described above until the Pawl is disengaged, as shown in Fig. 7-D.
Rotor
Fig 7–A
Stator
Pawl
Latch In
Locked
Position
Rotor
Fig 7–B
Stator
Pawl
Latch In
Unlocked
Position
Stopper
Pin
Rotor
Fig 7–C
Stator
Pawl
Spring
5/16”
Hex Nut
Adjustable
Spring
Tension
Clip
