Wiring Overview (continued)

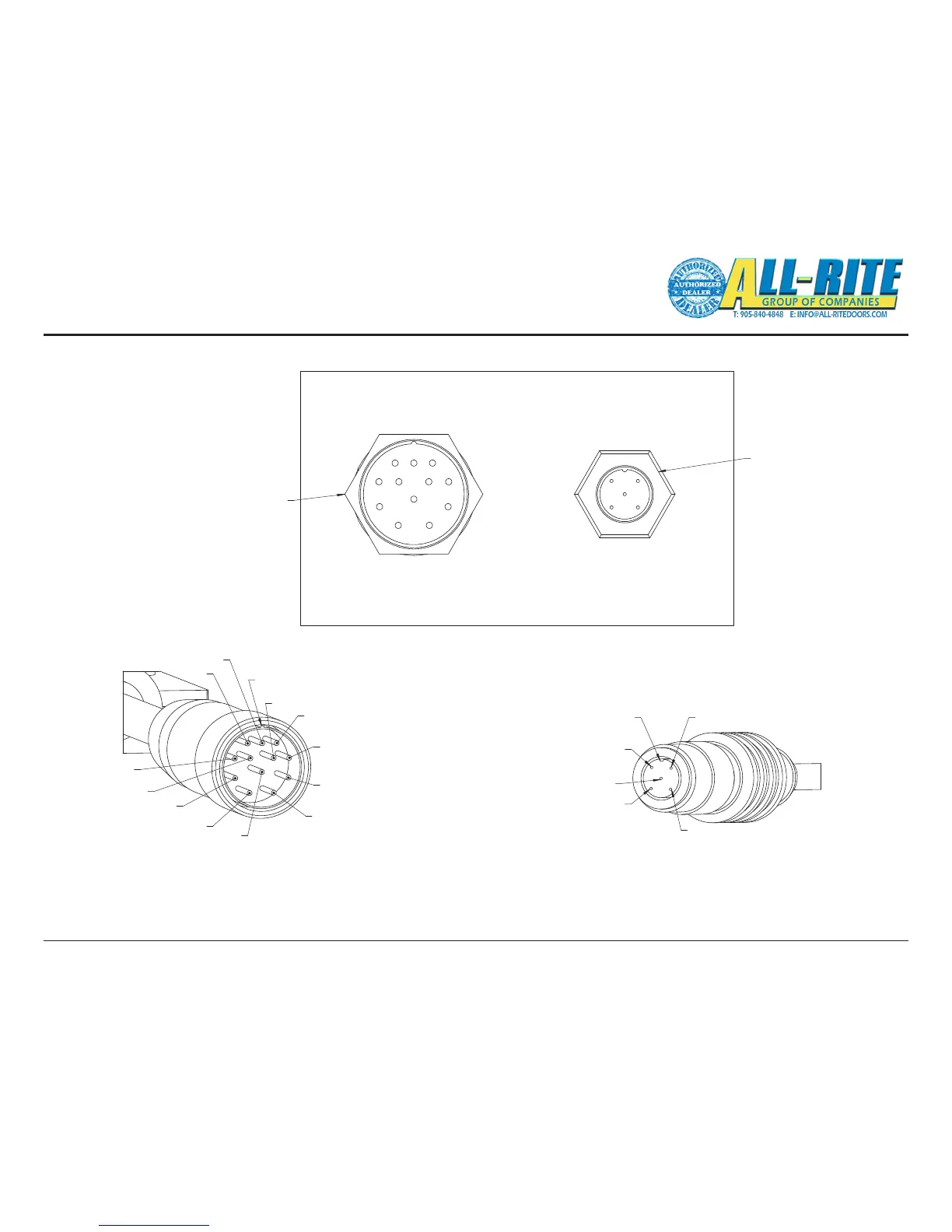

Fig 5–I Cables to Control Panel
5
1
2
3
45
6
7
8
9
1210
11
12
34
TO JUNCTION BOX
SENSING EDGE (WHITE)1.
INTERLOCK (GREEN)2.
NOT USED3.
PHOTOEYE RECEIVER (GRAY)4.
OPTION 1 (PINK)5.
OPTION 2 (RED)6.
NOT USED7.
NOT USED8.
NOT USED9.
10. COMMON (0V) (BLUE)
11. POWER (24V) (BROWN)
12. GND (GREEN/YELLOW)
BOTTOM OF CONTROL PANEL
TO POSITION SENSOR
12V (BROWN)1.
A SIGNAL (WHITE)2.
B SIGNAL (BLUE)3.
OV (BLACK)4.
PULSE (GRAY)5.
FROM JUNCTION BOX POSITION SENSOR CABLE
10
12
1
2
3
4
5
6
7
8
9
11
KEY
5
KEY 1
2
3
4
