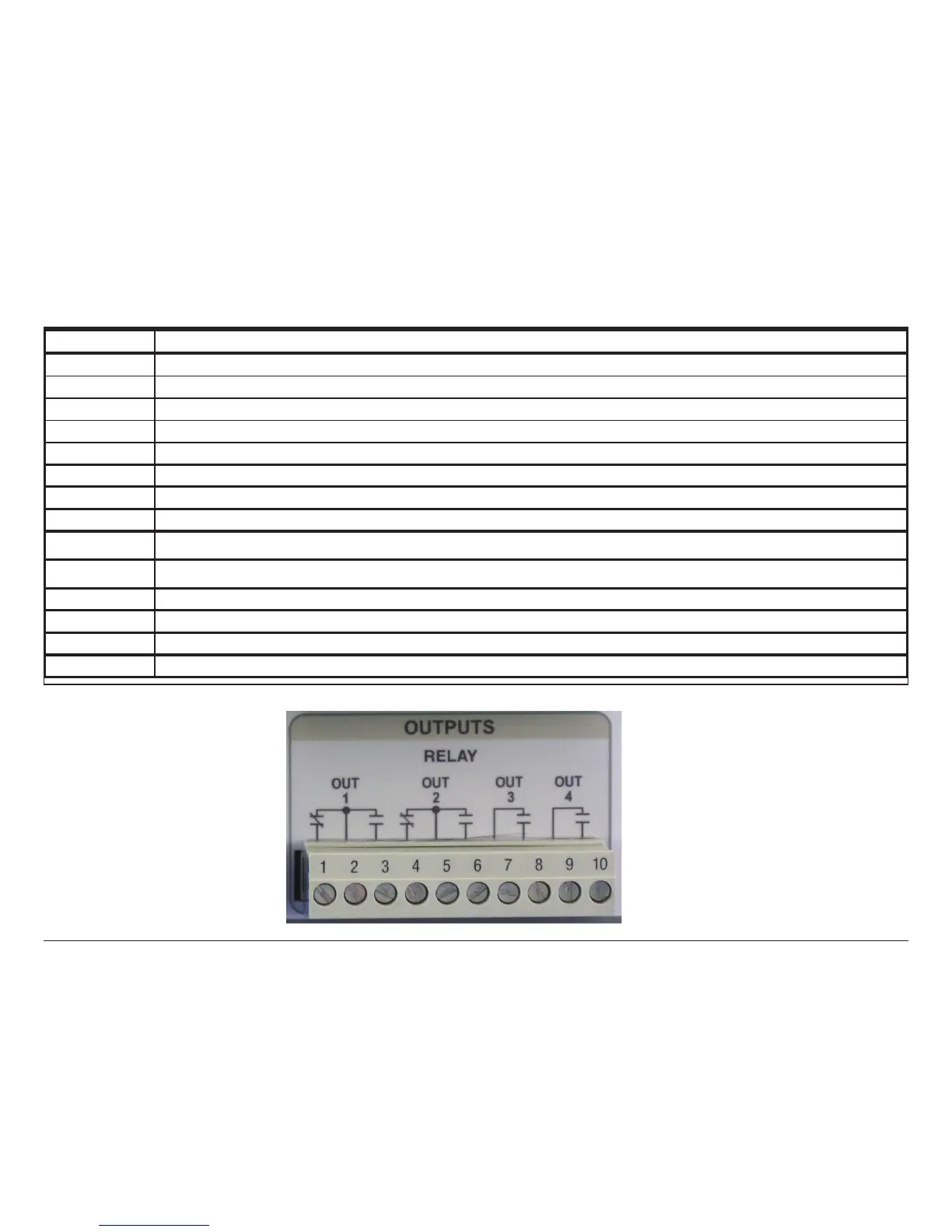

Fig 6–D
INPUT SIGNAL ACTIVATION DESCRIPTION`
Door Moving Output is active when the door is in motion.
Door Not Moving Output is active when the door is not in motion.
Door Open Output is active when the door is at the fully open position.
Door Closed Output is active when the door is at the fully closed position.
Door Not Closed Output is active when the door is above the fully closed position.
Door Open Partial Output is active when the door is at open part 1 position.
Door Opening Output is active when the door is moving in the open direction.
Door Closing Output is active when the door is moving in the close direction.
Delay to Close
Output is active when the Delay To Close timer is greater than zero and the door is commanded to close.The output remains active for the duration of the Delay To
Close timer.
Delay to Open
Output is active when the Delay To Open timer is greater than zero and the door is commanded to open. The Open button must remain active until the Delay To
Open timer has expired, the output will be active during this time. Upon expiration of the timer, the door opens and the output is deactivated.
Auto Close Active Output is active for the duration of the Auto or Man timer during an auto close sequence.
System Error Output is active when DGII is in any error condition.
Pre Warning Active Output is active for the duration of the Auto Timer and during any close sequence.
Open Alarm Active Output is active when Open Alarm Timer is greater then zero.
MENUS (continued)
