Thermo Top C, E Peugeot 307
10
10
1
2
Installing the Cable Harnesses
For all vehicles
- Run the heater unit cable harness along the original
vehicle cable harness / battery positive terminal
from the fuse and relay box to the right and then
behind the original vehicle cooler to the heater unit
installation location.
- Run the metering pump cable harness on the wheel
house back to the cooling water reservoir.
- Run the metering pump cable harness behind the
cooling water reservoir cover to the right side of the
vehicle.
- Secure cable harnesses with cable ties.
- Run the time switch cable harness, blower controller
cable harness (from blower relay K3), and the cable
harness from the supplementary relay K3.1 (only
with automatic air conditioning) from the fuse and
relay box down and through the engine
compartment along the frame side rail to the brake
amplifier.

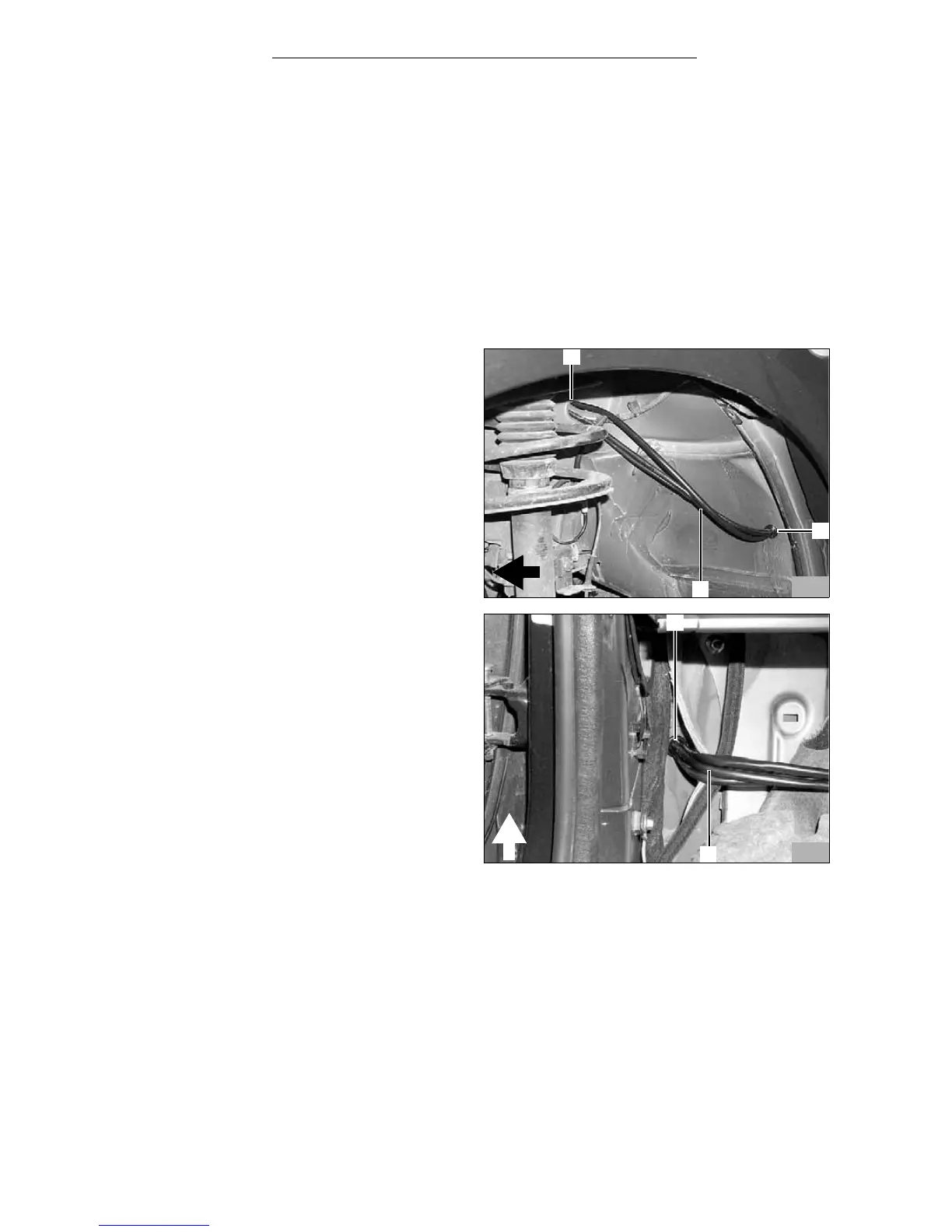

- Run the cable harnesses (3) from the brake
amplifier through the existing feed-through (1) into
the wheel house.
WARNING:
When drilling, watch out for underlying components
and wires.
- Drill Ø 18mm bore hole (2) in passenger
compartment as shown in the figure.
- Insert enclosed cable sleeves (10/1; 9/2) in the bore
hole.
- Run the cable harnesses (9/3; 10/2) from the wheel
house into the passenger compartment as shown in
figure 9 and 10.
- Secure cable harnesses with cable ties.
9
1
2
3
