Webasto Thermo Top C Installation Instructions

Thermo Top C, E Peugeot 307
26

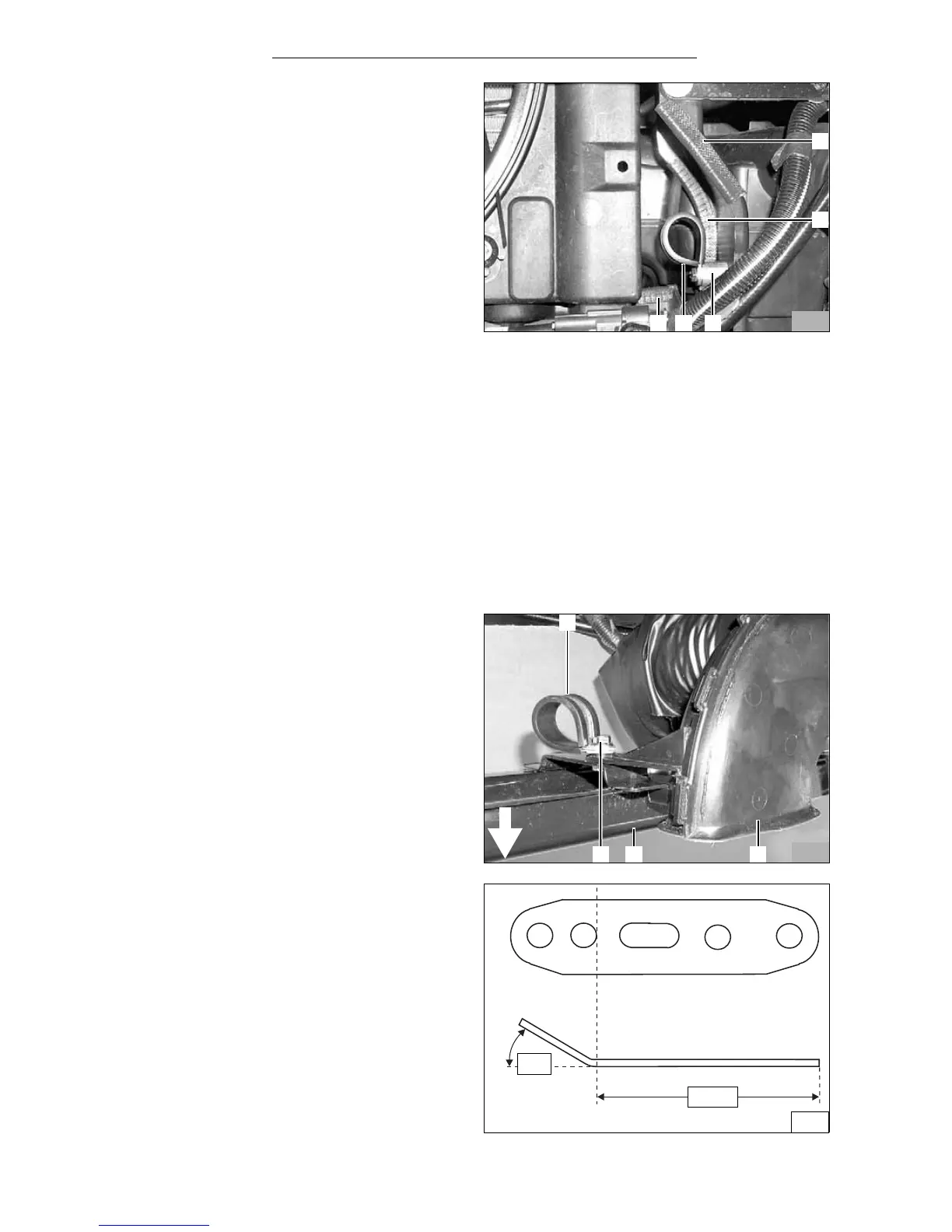

Water connection
All vehicles, except RFK 2.0l gasoline.
Running the hose from the heater unit in the
engine compartment
NOTE:
Position hose clamps so that no other hose can be
damaged!
- Loosely pre-assemble the rubberized 34mm tube
clamps (4) with the 15 mm spacer sleeve (3), M6x30
bolt, body washer and flanged nut on the hole to the
left of the cooler as shown in the figure.
- Cut off three edge protection pieces (1,2,5) from the
enclosed edge protection.
- Slide on and position the three edge protection
pieces according to the figure.
NOTE:
The air inlet channel (2) is not available in all engine
versions.
- Remove the fastening pin (4) if present.
- Loosely pre-assemble the rubberized 34mm tube
clamps (1) according to the figure with the M6x20
bolt and M6 flanged nut together with the air inlet
channel (2) onto the opening in the traverse (3) onto
the opening in the traverse (3) when present.
- Bend the enclosed fastening strip according to the
figure.
48
2
1
5 34
49
1
3 24
50
60mm
30°
