Webasto Thermo Top C Installation Instructions

Peugeot 307 Thermo Top C, E
23
RHY 2.0 l diesel and RHS 2.0 FAP diesel

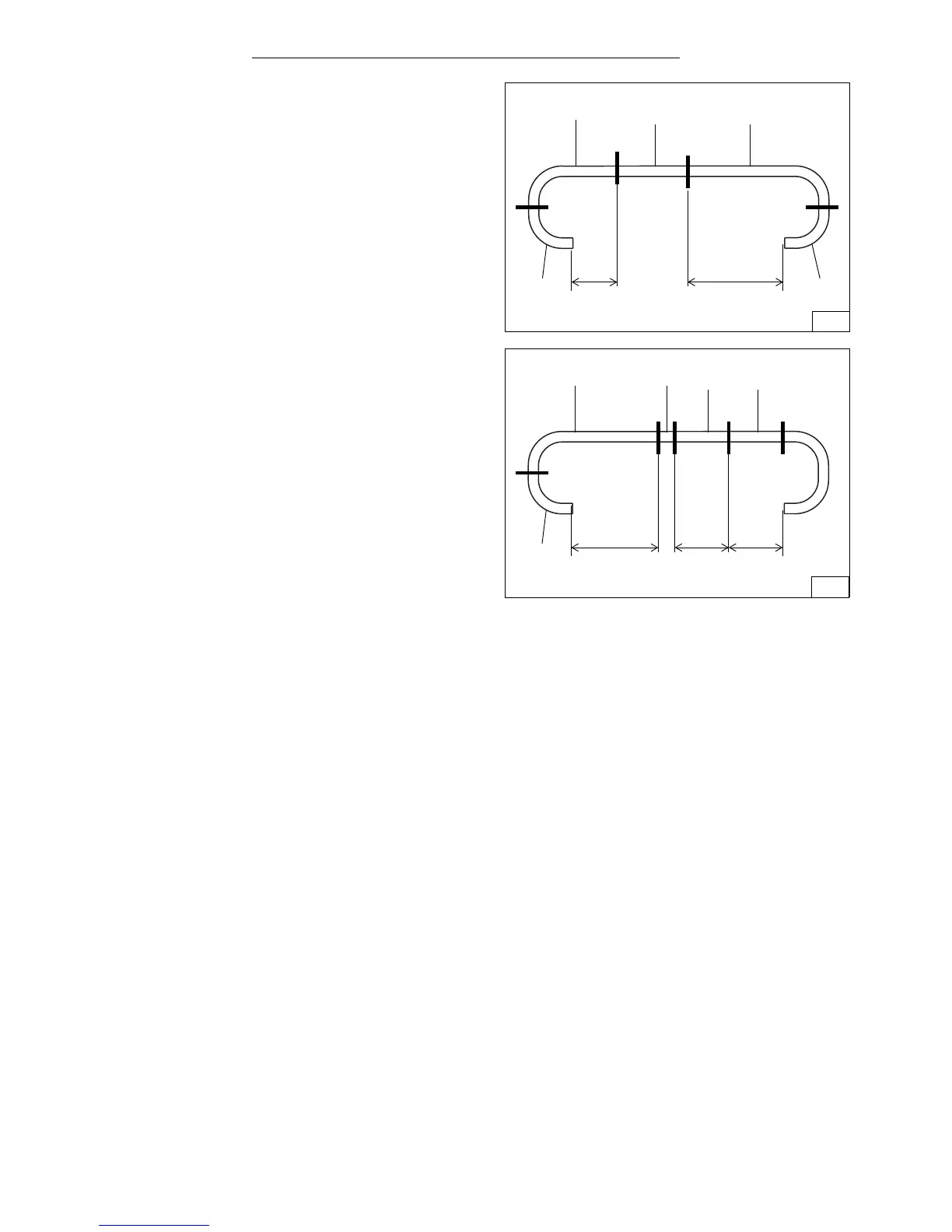

- Cut the supplied water hose into two sections, as
shown:
1 x 80 mm + 90° bend (1)
(preassembled on the heater unit)
1 x 1,200 mm + 90° bend (2)
(from the 80mm long water hose (1) to the 480mm
long water hose (2)).
Cut the water hose supplied in the kit into three
sections, as shown:
1 x 1,150 mm + 90° bend (1)
(from the heater unit water inlet to the 350mm long
water hose (3)).
1 x 480 mm straight (2)
(from the 1200 mm long water hose (42/2) to the
original vehicle water hose / heat exchanger water
inlet).
1 x 350 mm straight (3)
(from the 1,150mm long water hose (1) to the original
vehicle water hose / engine exhaust).
80
42
Section
1200
Section
Section
21
350
31
1150
43
Section
480
2
Section
