Webasto Thermo Top C Installation Instructions

Thermo Top C, E Peugeot 307
18

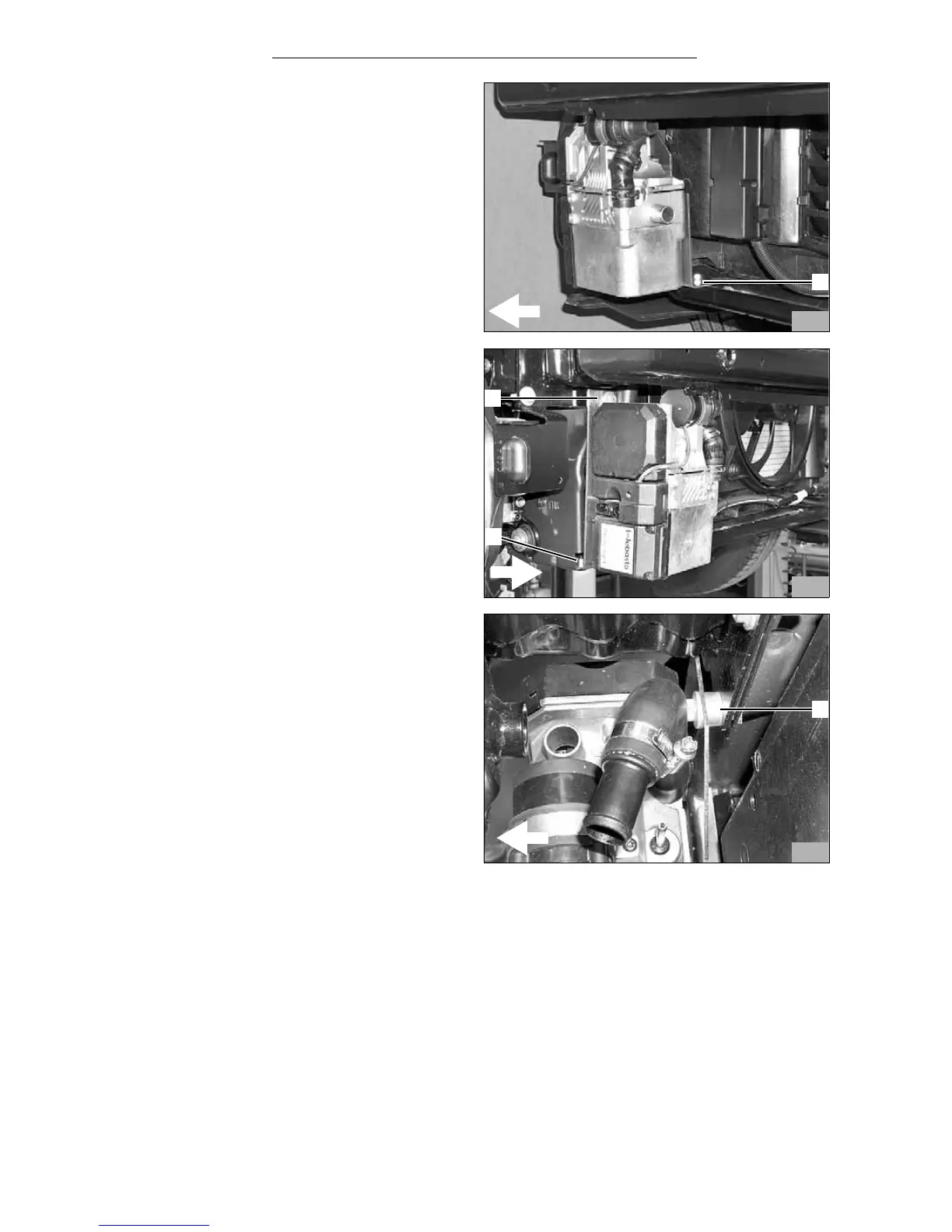

Installing the heater unit
- Assemble the bracket with heater unit on the
preassembled M6x20 bolt and the original vehicle
bolt (31/2) as shown in figure 30 and figure 31.
NOTE:
Insert a 10mm spacer washer between the bracket
and the crossarm at position (31/2; 32/1).
- Fasten the heater unit bracket to position (1) with
the original vehicle nut.
- Fasten the heater unit bracket to position (30/1) with
the flanged nut as shown in figure 30.
- Fasten the heater unit bracket to position (1) with
the original vehicle bolt and 10 mm spacer washer.
30
1
31
1
2
32
1
