Peugeot 307 Thermo Top C, E
49

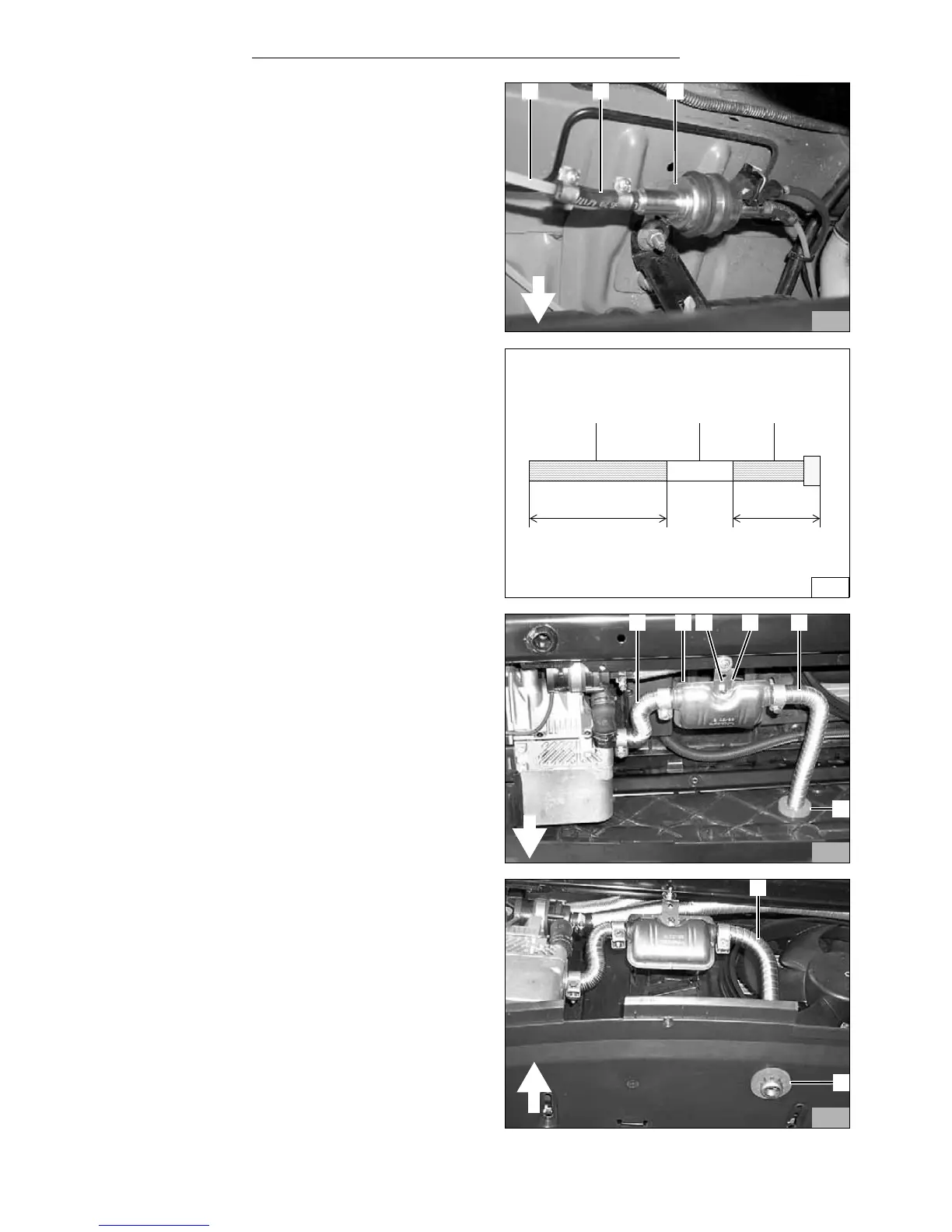

- Run the Mecanyl fuel pipe (131/1; 132/1) to the
metering pump (3) and cut into sections.
- Fasten the Mecanyl fuel line (1) to the suction side
of the metering pump (3) with a hose section (2) and
hose clamps.
Exhaust System
WARNING:
When assembling the exhaust system, ensure
sufficient space to the hoses and lines components.
- Shorten the exhaust pipe and exhaust pipe end
piece as shown in the figure.
- Tighten the exhaust silencer (2) to the fastening
strap (4) with the M6x20 bolt (3) and flanged nut.
- Put the 150 mm long exhaust pipe (1) on the heater
unit, tighten with the hose clamp and shape as
shown in the figure.
- Slide the 150 mm long exhaust pipe (1) on the
exhaust silencer (2) and fasten with the hose clamp.
- Put the exhaust pipe end piece (5) on the exhaust
silencer (2) and tighten with the hose clamp
- Drill a Ø 42mm bore hole at position (6) in the
panelling according to the figure.
- Align and shape the exhaust pipe end piece (1) as
shown in Figure 2 and insert this in the panelling
with the red rubber profile (2) with groove.
exhaust pipe
150 330
Section
Heater unit silencer
End section
133
132
31 2
134
2
41 5
3
6
135
1
2
