Webasto Thermo Top C

Peugeot 307 Thermo Top C, E
15
Thermo Call TC1.1 option
NOTE:
Please observe the general installation instructions for
the TC1.1 option.

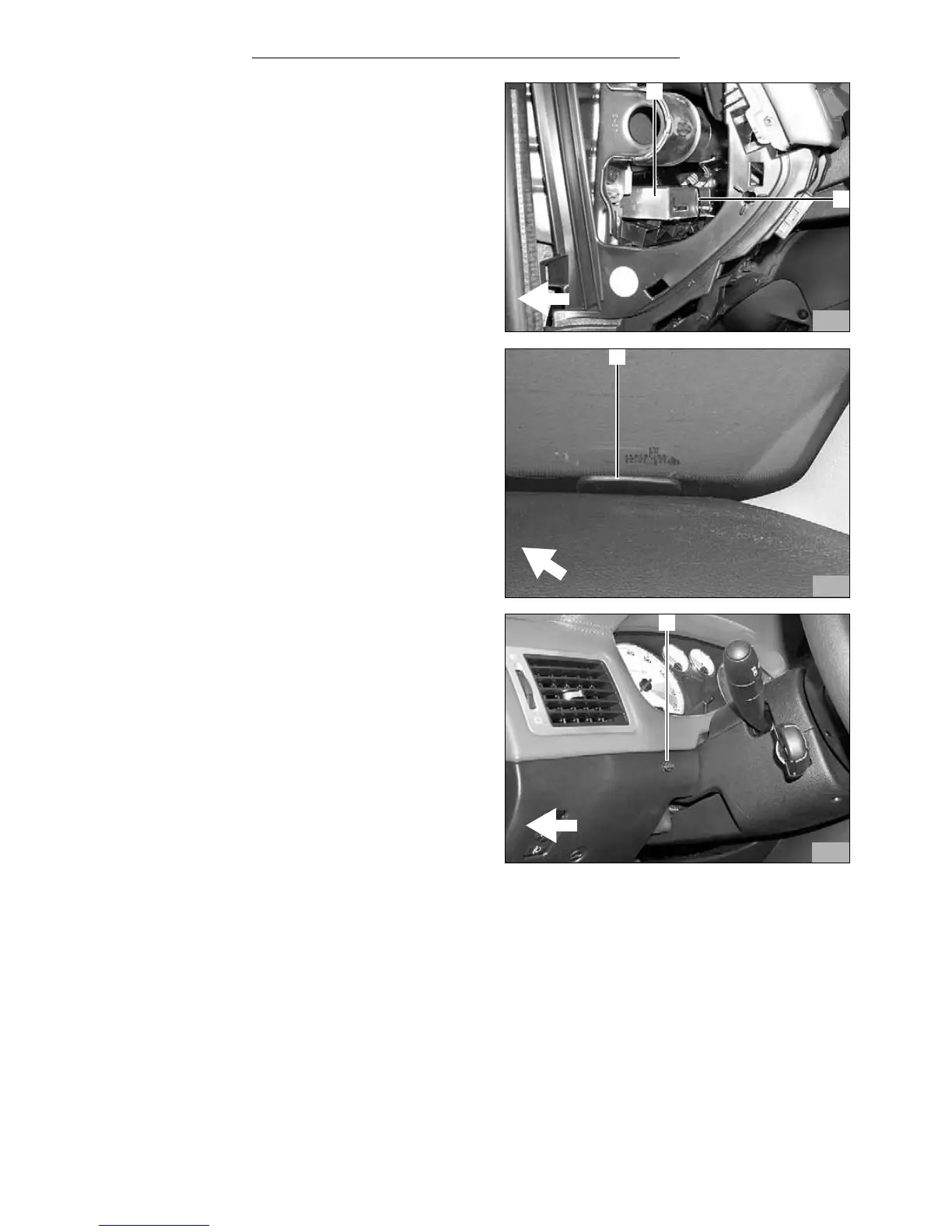

- Position the receiver (1) on the fuse holder.
- Position the receiver (1) with the cable clip (2) on the
fuse holder.
NOTE:
Clean/degrease the mounting surface for the antenna
before fitting the antenna!
- Attach the antenna (1) as shown in the figure.
- Run antenna cable to the receiver.
- Assemble the tip switch (1) as shown in the figure.
- Make all connections according to the enclosed
installation instructions.
- Secure all wiring harnesses with cable ties
1
20
2
1
21
1
22
