Webasto Thermo Top C Installation Instructions

Peugeot 307 Thermo Top C, E
25
RFK 2.0 l gasoline

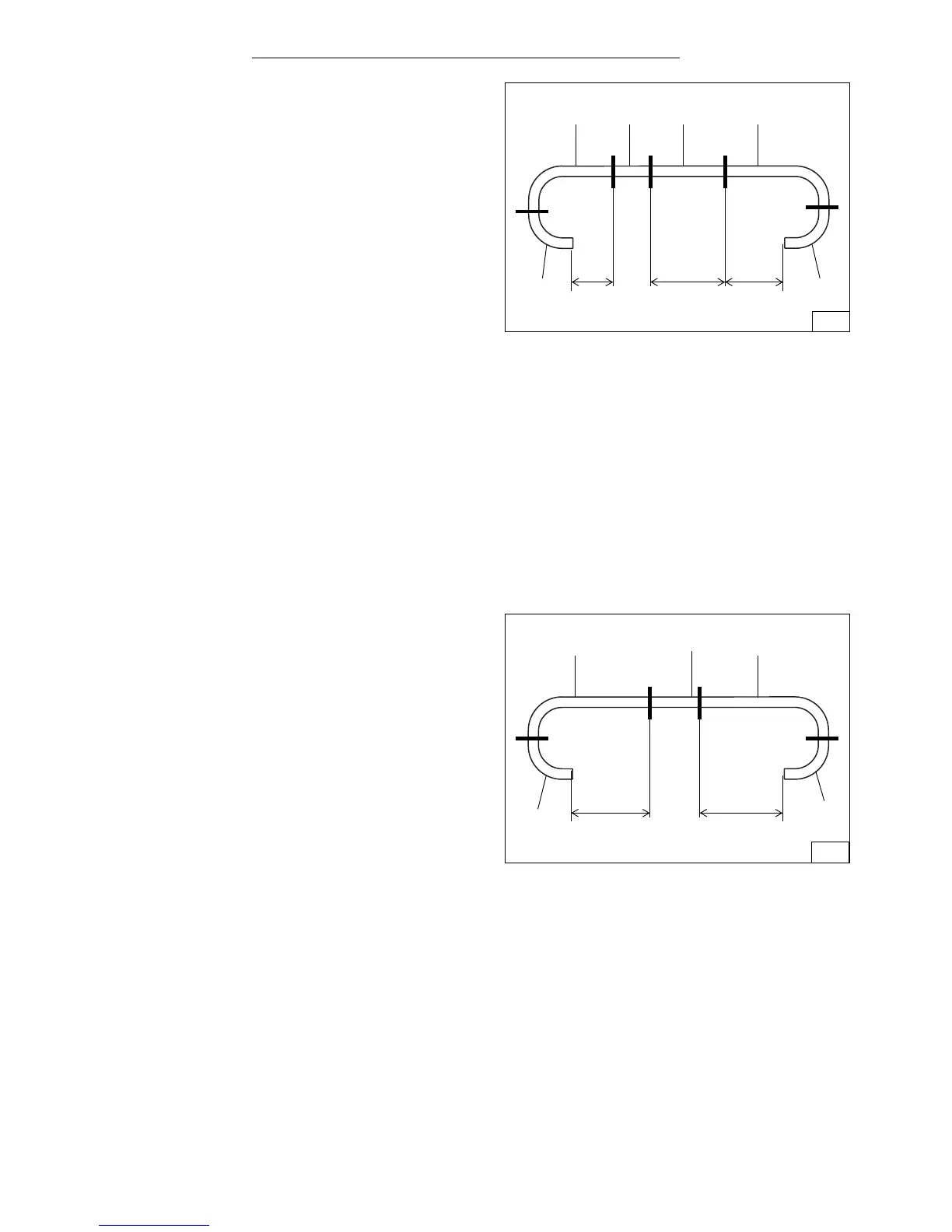

- Cut the supplied water hose into three sections, as
shown:
1 x 80 mm + 90° bend (1)
(preassembled on the heater unit)
1 x 880 mm + 90° bend (3)
(from the heater unit water inlet to the 920mm long
water hose (47/1)).
1 x 1,000 mm straight (2)
(from the 970mm long water hose (47/2) to the
original vehicle water hose / heat exchanger water
inlet).
- Cut the water hose supplied in the kit into two
sections, as shown:
1 x 920 mm + 90° bend (1)
(from the 880 mm long water hose (46/3) to the
original vehicle water hose / engine exhaust).
1 x 970 mm + 90° bend (2)
(from the 80 mm long water hose (46/1) to the
1,000mm long water hose (46/2)).
80
46
Section
880
Section
Section
2
1000
1 3
970
2
920
47
Section
Section
1
Section
