Webasto Thermo Top C Installation Instructions

Thermo Top C, E Peugeot 307
6

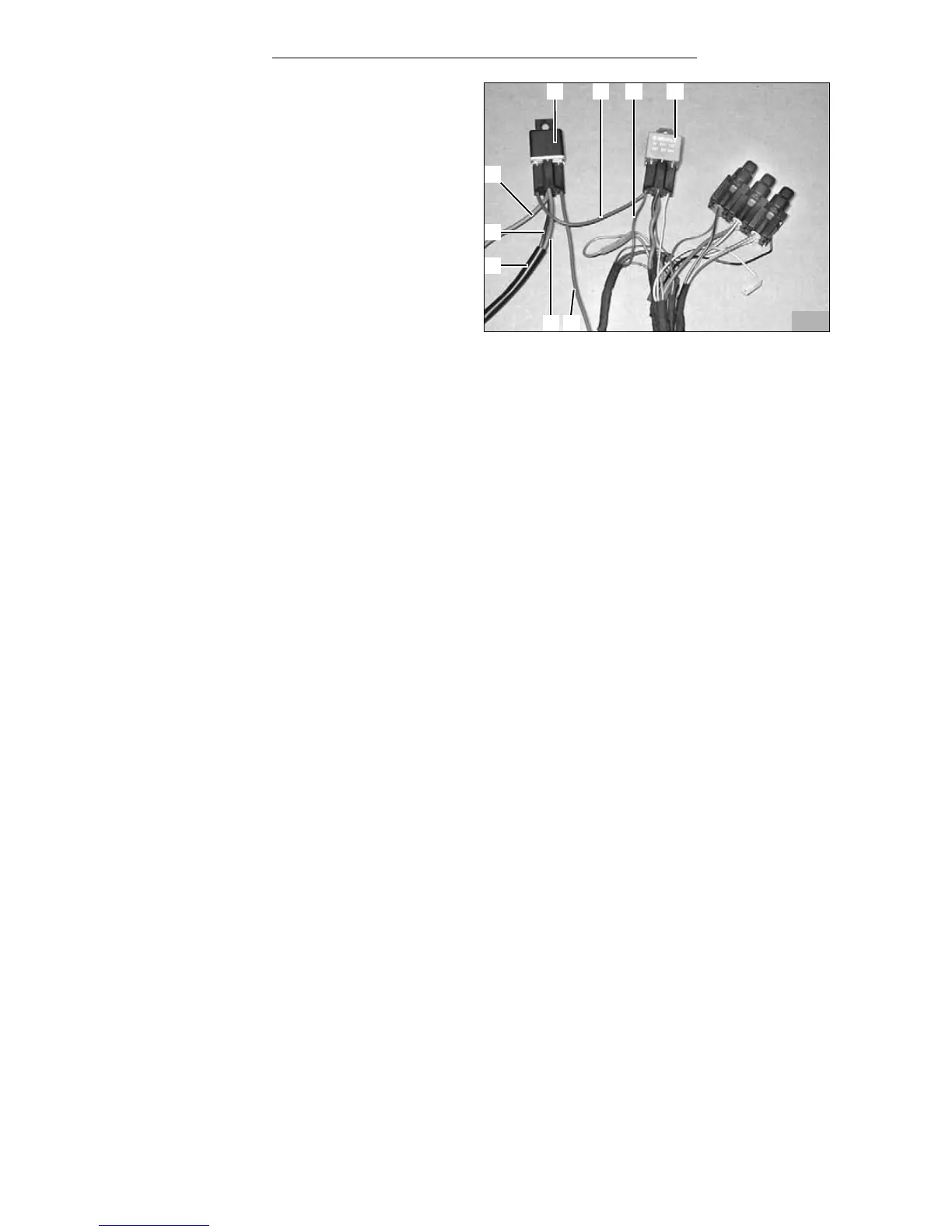

Cable harness assembly
Pre-assembly for automatic air
conditioning
- Cut two a 300 mm section and two 100 mm sections
each from the enclosed brown 2.5 mm wire
2
.
- Uncrimp the brown wire (3) from the K3 blower relay
(4) terminal 85.
- Connect the cut brown 2.5 mm wire
2
that is 100 mm
long (2) and the brown wire (3) to the K3 blower
relay (4) terminal 85.
- Connect the free end of the brown 2.5 mm wire
2
that is 100 mm long (2) to the supplementary relay
K3.1 (1) terminal 85.
- Connect the cut brown 2.5 mm wire
2
that is 300mm
long (9) to the supplementary relay K3.1 (1) terminal
87a.
- Connect the enclosed red 0.75mm wire
2
that is
500mm long (5) to the supplementary relay K3.1 (1)
terminal 86.
- Connect the enclosed black wire (6) to the
supplementary relay K3.1 (1) terminal 30.
- Connect the remaining brown wire (8) to the
supplementary relay K3.1 (1) terminal 87.
- Pull the brown wire (8) and black wire (6) together
into the enclosed insulating hose (7).
3
1
6
42
9
8
7
5
3
