Peugeot 307 Thermo Top C, E
29
KFW 1.4 l gasoline and
NFU 1.6 l gasoline with shift gears
NOTE:
Position hose clamps so that no other hose can be
damaged!

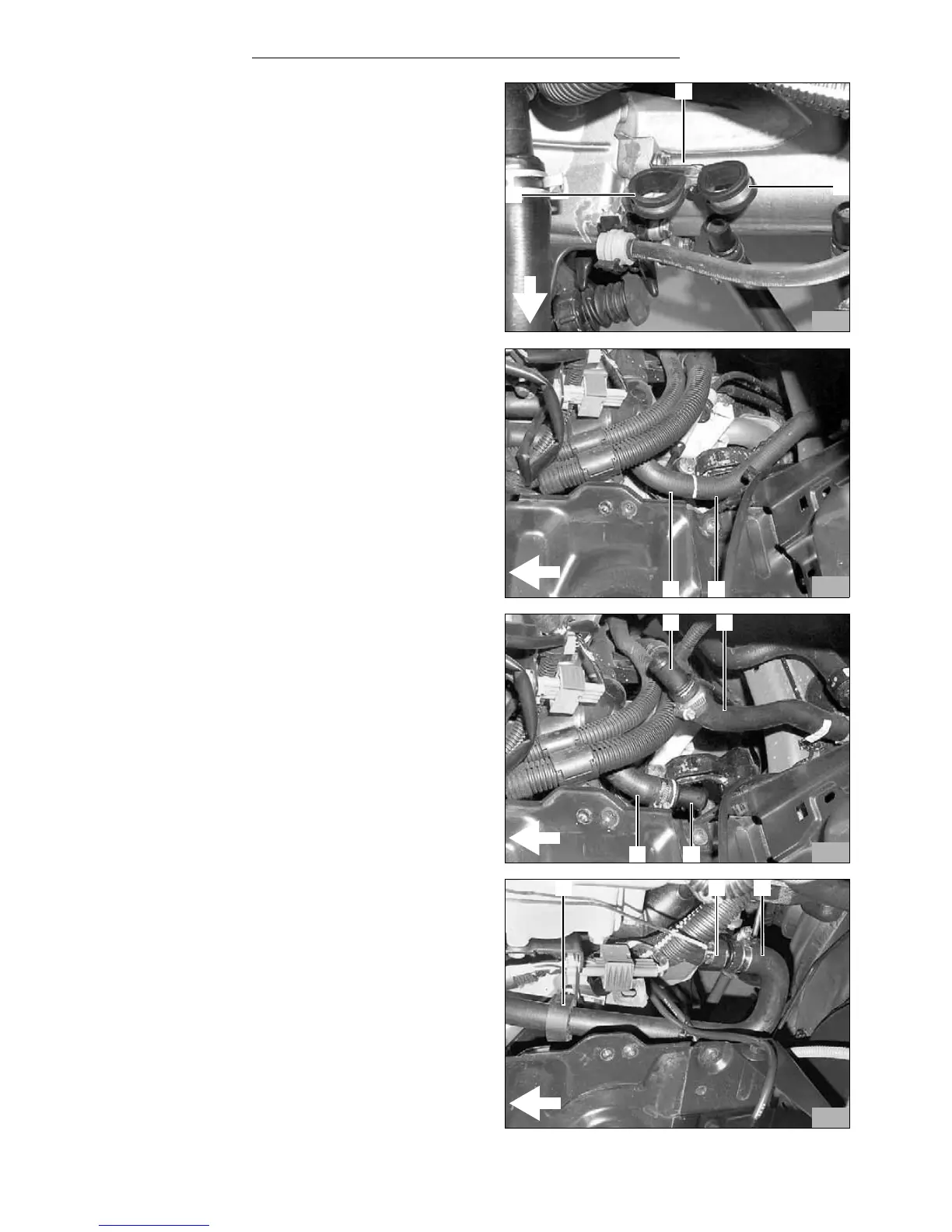

- Drill enclosed angle bracket (1) open to Ø 8.5mm on
the short leg.
- Fasten the bracket (1) to the gear according to the
figure with the enclosed screw.
- Loosely pre-assemble the two rubberized 29mm
tube clamps (2.3) onto the bracket according to the
figure with the M6x20 bolt and M6 flanged nut.
- Clamp the vehicle's own water hose (1, 2) from the
engine water outlet to the heat exchanger water inlet
with hose clamps.
- Separate the original vehicle water hose at the mark
according to the figure.
- Insert connecting pipes 17x20 (3) in original vehicle
hose section (4) from the engine outlet and fasten
with hose clamps.
- Insert connecting pipe 17x20 (1) in original vehicle
hose section (2) to the heat exchanger and fasten
with hose clamps.
- Slide the 400mm long water hose (3) with 180° bend
onto the original vehicle hose section (2) from the
engine water outlet, align according to the figure and
fasten with hose clamp.
- Slide the black rubber profile (1) on the 400mm long
water hose (3).
59
2
1
3
60
2 1
61
4 3
1 2
62
1
2 3
