Thermo Top C, E Peugeot 307
46
Fuel connection
WARNING:
Open the vehicle's tank-cap lock, ventilate the tank
and then re-close the tank-cap lock.
Catch any fuel running off with an appropriate
container.
Install the fuel line so that it is protected from impact
by rocks! Fit the fuel line and cable harness with edge
protectors around sharp edges.

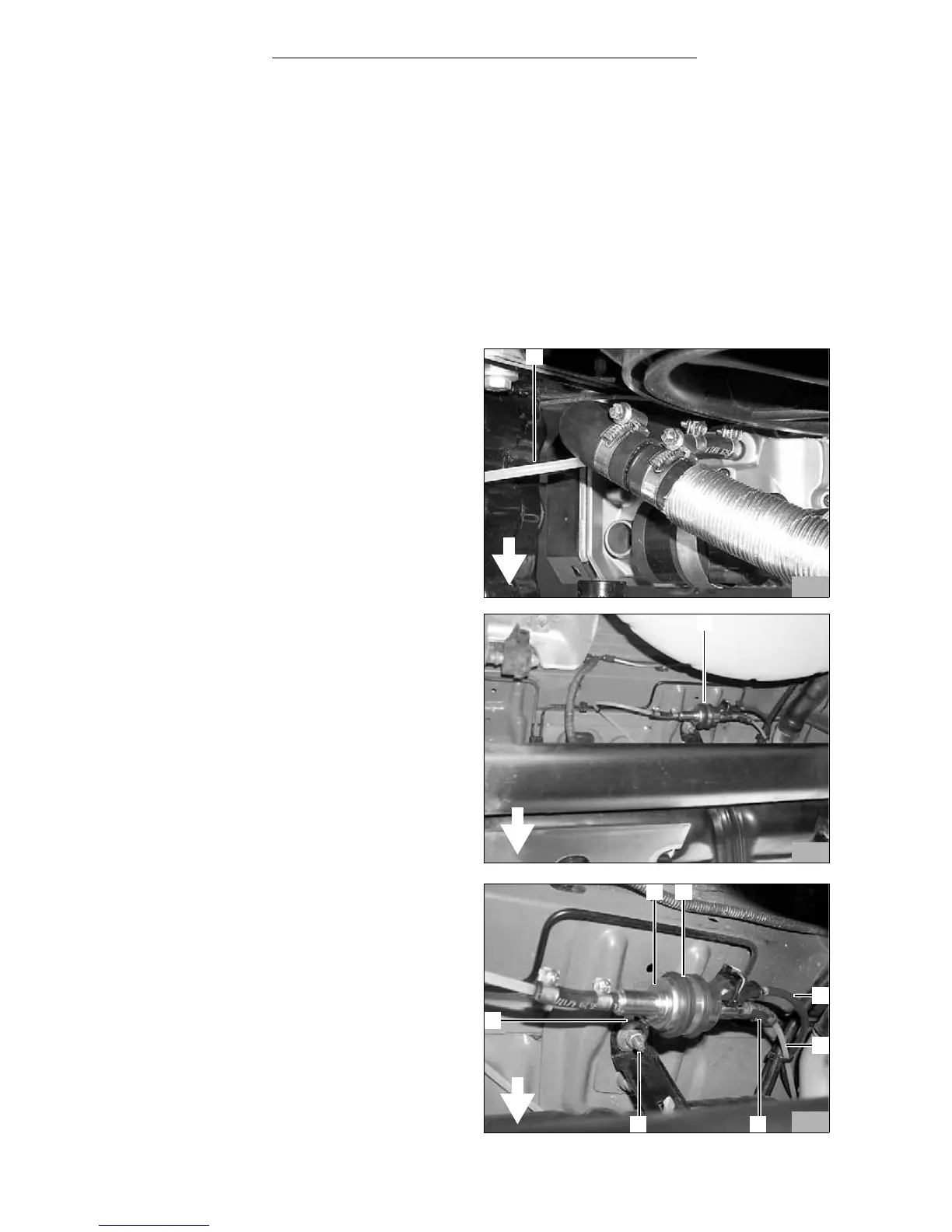

- Fasten the 5,000 mm long Mecanyl fuel line (1) to
the heater unit with hose section and Ø 10mm hose
clamps as shown in the figure.
- Run the Mecanyl fuel pipe (1) on the wheel house to
the engine compartment rear bulk.
- Route the Mecanyl fuel line together with the
metering pump cable harness along the original
vehicle fuel lines on the engine compartment rear
bulk down and from there on the underbody to the
fuel tank.
Metering pump
NOTE:
Note the installation position of the metering pump,
see the "Installation Instructions"!
The metering pump (1) is installed behind the vehicle
fuel tank as shown in the figure.
- Fasten the bracket (7) to the stay bolts (6) on the
tank mount with the oblong hole as shown in the
figure.
- Fasten the metering pump (1) with silent block,
rubber tube clamp (2) and flanged nuts to the short
end of the bracket (7).
- Run the cable harness for the metering pump (3)
and the Mecanyl fuel pipe (4) from the heater unit
along the fuel tank to the metering pump.
- Cut the metering pump cable harness (3) on the
metering pump (1) into sections, put on the
protective rubber sleeve, crimp on the flat
connector, complete the connector housing, and put
the cable harness on the metering pump.
- Cut the Mecanyl fuel line (4) (from the heater unit)
and connect with the hose section (5) and the 10
mm hose clips to the pressure side of the metering
pump (side with the connector).
- Secure fuel line and cable harness with cable ties.
121
1
122
1
123
1
3
7
6
2
4
5
