Webasto Thermo Top C Installation Instructions

Peugeot 307 Thermo Top C, E
45

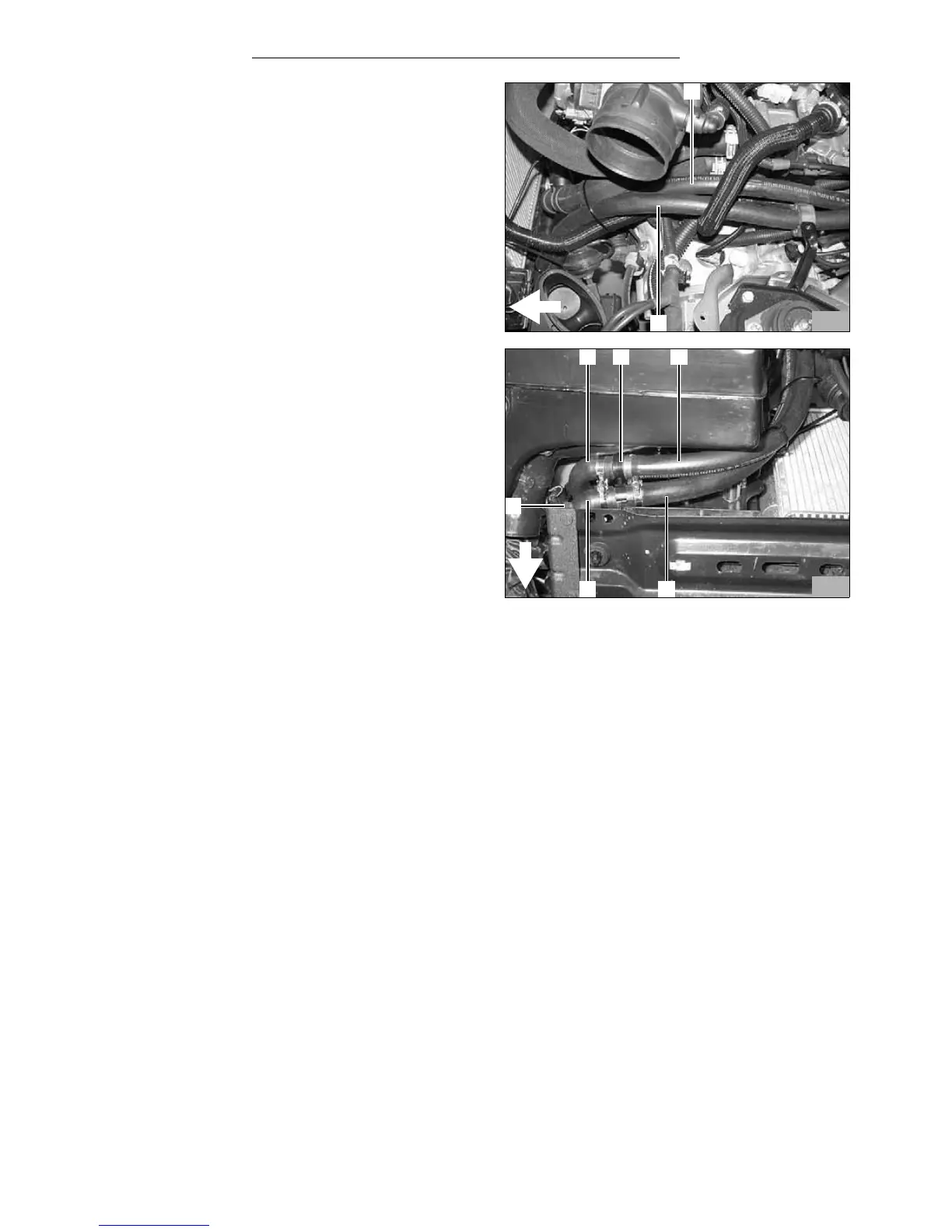

- Run the 1,000mm water hose (1) and 920 mm long
water hose (2) in the engine compartment as shown
in the figure.
- Connect the 920mm long water hose (4) and 880
mm long water hose (5) with the 20/20 connecting
pipe and hose clamps.
- Connect the 1,000mm long water hose (3) and
970mm long water hose (1) with the 20/20
connecting pipe and hose clamps.
- Cut down the enclosed cloth fuel hose (6) to approx.
35mm.
- Slide the cloth fuel hose (6) on the original vehicle
bolt.
- Insert the spacer bracket (2) according to the figure.
- Align all water hoses.
- Tighten all rubberised tube clamp.
- Align all rubber profiles.
- Secure all water hoses with cable ties.
119
1
2
120
3
2
1
5 4
6
