Webasto Thermo Top C Installation Instructions

Thermo Top C, E Peugeot 307
20
NFU 1.6 l gasolinewith automatic drive

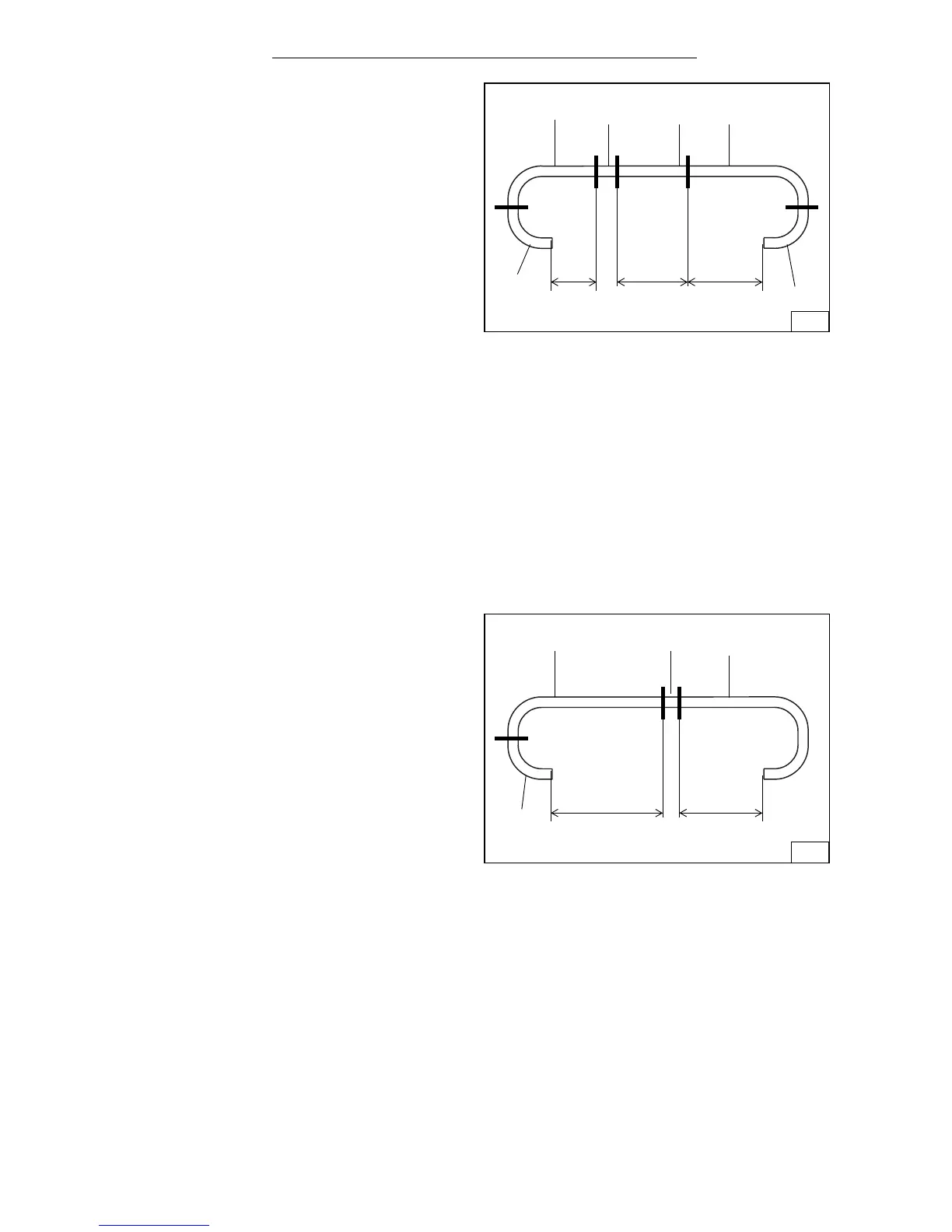

- Cut the supplied water hose into three sections, as
shown:
1 x 80 mm + 90° bend (1)
(preassembled on the heater unit)
1 x 660 mm straight (2)
(from the 1200 mm long water hose (3) to the
original vehicle water hose / heat exchanger water
inlet).
- 1 x 1,200 mm + 90° bend (3)
(from the 80mm long water hose (1) to the 660 mm
long water hose (2)).
- Cut the water hose supplied in the kit into two
sections, as shown:
1 x 1,150 mm + 90° bend (1)
(from the heater unit water inlet to the 650mm long
water hose (2)).
1 x 650 mm + 180° bend (2)
(from the 1,150mm long water hose (1) to the
original vehicle water hose / engine water outlet).
1200
31
80
36
Section
660
2
Section
Section
1
1150
37
Section
650
2
Section
