Webasto Thermo Top C Installation Instructions

Peugeot 307 Thermo Top C, E
5
Preliminary work
- Remove years that do not apply from the duplicate
label.
- Attach the duplicate label (type label) in the
appropriate location.
Engine Compartment
WARNING:
Disconnect the battery.
- Remove the batters and the bracket.
- Open the cooler cap, let off pressure.
- Close the cooler cap again.
- Remove the air filter housing
- Remove the cable holder.
Only for vehicles with diesel engines.
- Remove the engine cover.
Only for vehicles with 8 Hz engines.
- Remove the battery holder.
Vehicle Exterior
- Open the filler cover, release the pressure in the fuel
system, close the filler cover.
- Remove the front left wheel-house panel
- Remove the front bumper.
- Remove the underbody panel on the right in front of
the original vehicle tank.
Interior
- Remove the lower dashboard panel on the driver’s
side.
- Remove the A pillar and rocker panel strip in the foot
area on the driver's side.
- Lift up the rear seat bench.
- Remove the service cap on the tank mounting.
Heater unit installation location

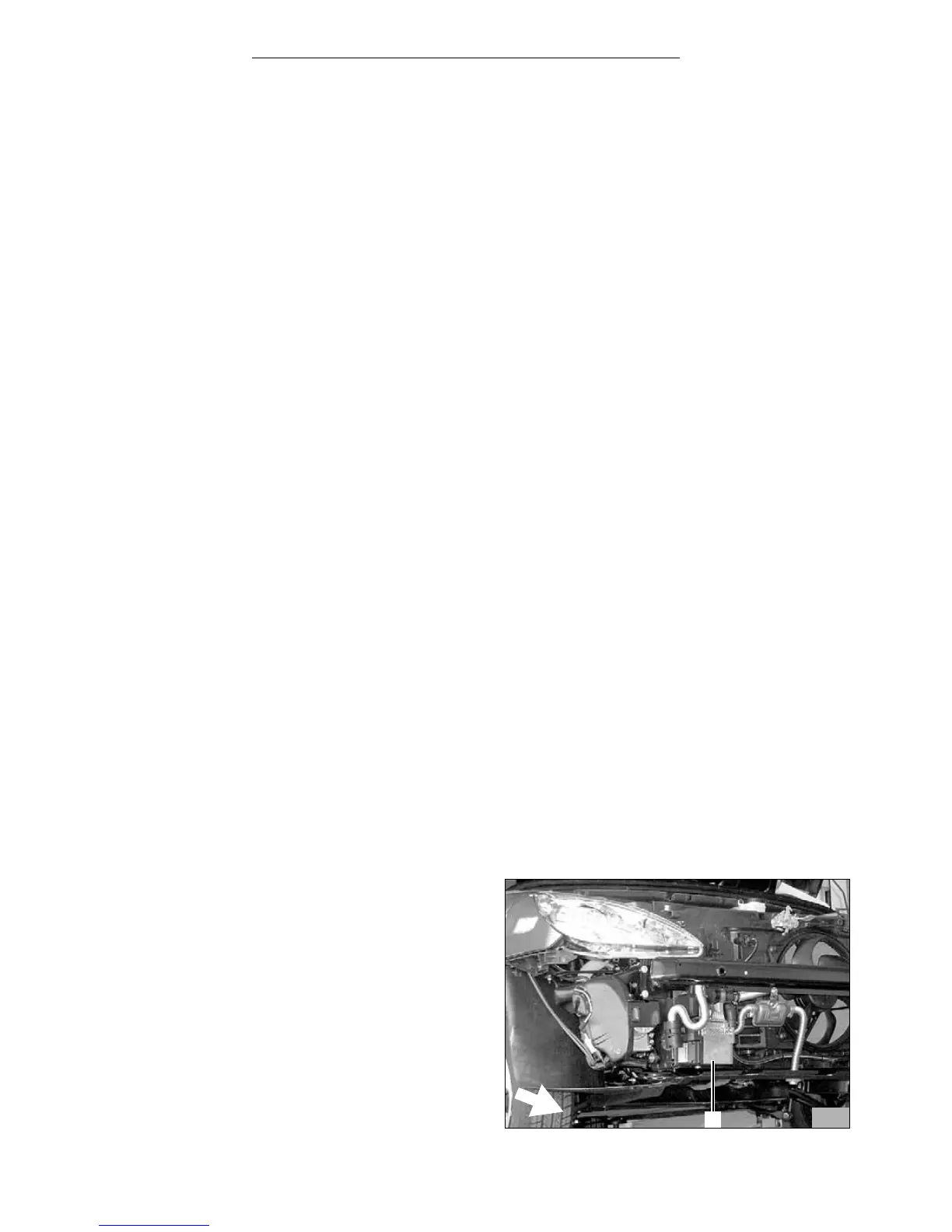

The heater unit (1) is installed on the front right behind
the bumper according the to the figure.
This is installed vertically, with the exhaust outlet to
the left.
2
1
