Webasto Thermo Top C Installation Instructions

Thermo Top C, E Peugeot 307
12
Manual air conditioning

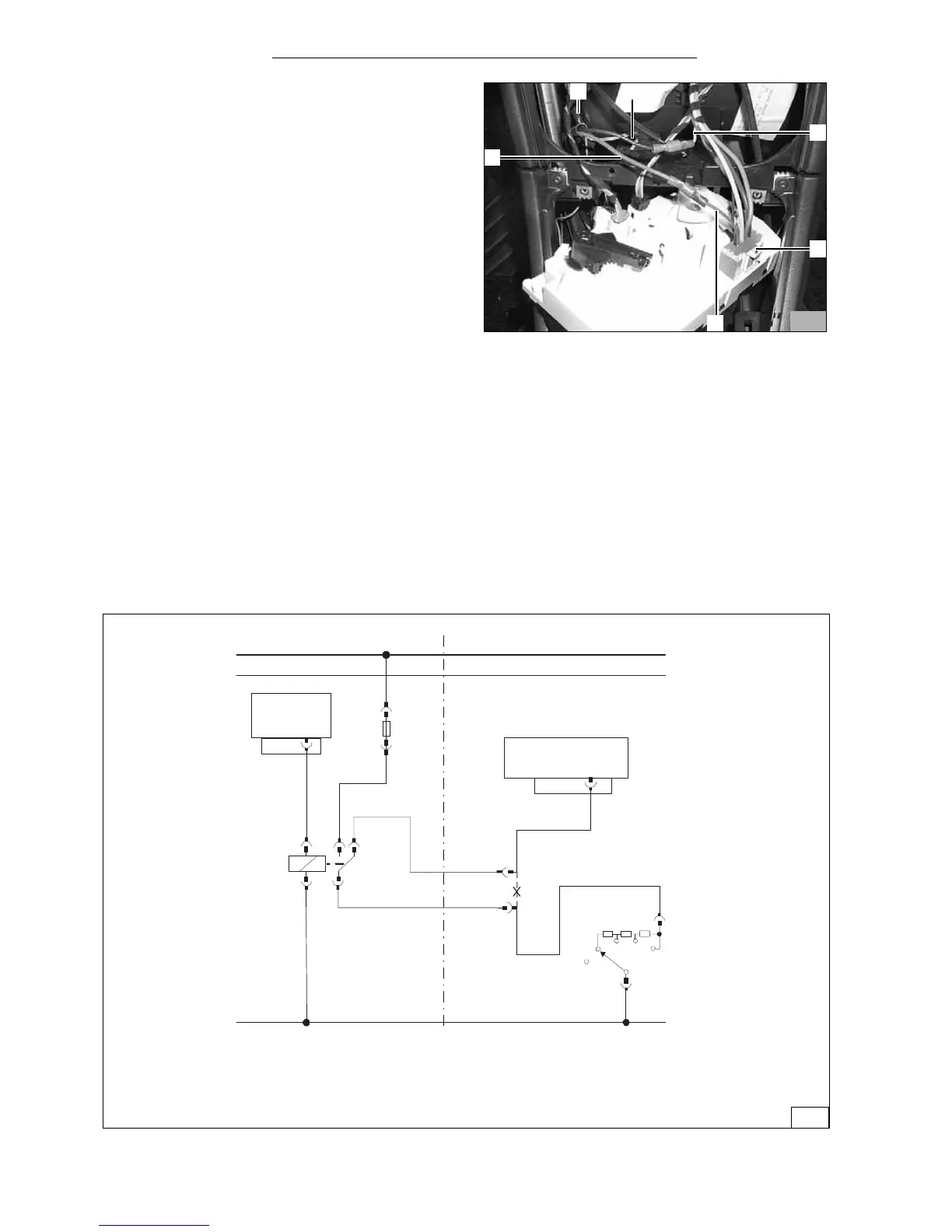

Re-connect the connections with the enclosed round
connectors in accordance with circuit diagram Figure 15
The air conditioning control is triggered at pin 4 on the
5 pin connector in the air conditioning control.
- Run the blower control cable harness (1) as shown
in figure 22 to the air conditioning control.
- Separate the white wire (3.5) to the air conditioning
control approx. 50mm before pin 4 on the 5 pin
connector (4) in the air conditioning control.
- Connect the white wire (5) to the air conditioning
control as shown in the figure with the red wire (6)
K3/87a blower relay.
- Connect the white wire (3) to the resistor group as
shown in the figure with the black wire (2) K3/30
blower relay.
NOTE:
On the vehicles checked with passenger
compartment monitoring, no alarms were triggered
during heating operation (test with maximum blower
speed).
Triggering the passenger compartment monitoring is
not provided for in the current vehicles.
14
1
6
5
3
2
4
gn/
ws
sw
br
rt/ws
Webasto
31
30
15
Peugeot 307
rt
Pin 4
HG
X1
F3
10A
WG
ws
ws
K3
87a
87
86
85
30
Pin 4
KB
ST 01
KB Klimabedienteil
ST 01 Stecker 5- polig
WG Widerstandsgruppe
14
