Fuel take-off for diesel engine
The fuel is extracted with the fuel extractor from the
tank mounting.

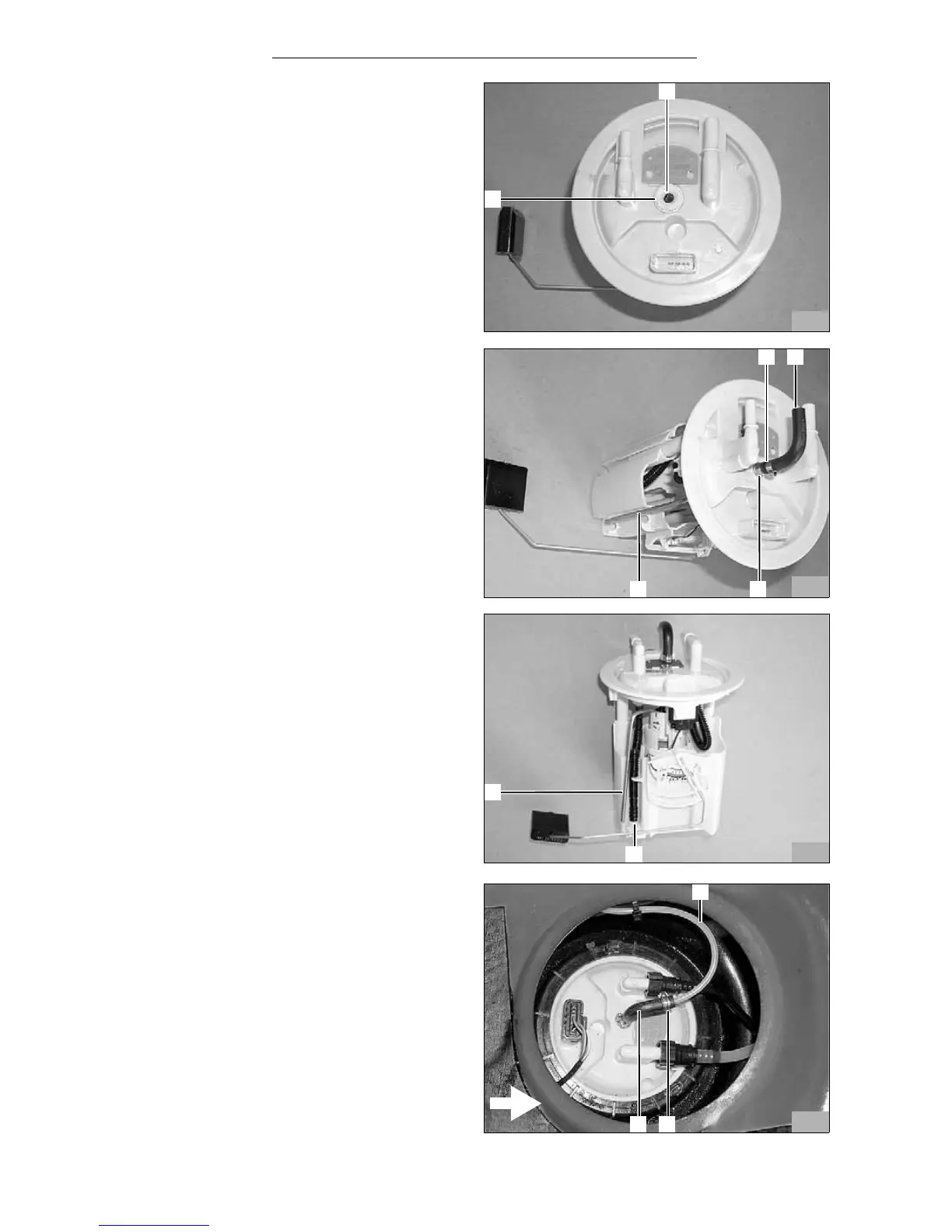

- Remove tank mounting according to manufacturer's
instructions
- Transfer the hole image (1) with the enclosed body
washer (2) to the tank mounting according to the
figure.
- Drill Ø 6.0mm bore hole (1) in the tank mounting
according to the figure.
- Shape and cut the tank extracting device according
to the enclosed template.
- Fasten the tank extracting device (3.4) in the tank
mounting according to the enclosed installation
instructions.
- Slide on the enclosed 90° moulded hose (2) (inner
diameter increasing from 3.5 mm to 4.5 mm) with
the ø3.5 mm end on the tank extracting device (3).
- Fasten the 90° moulded hose with the enclosed 9
mm universal clamp (1) according to the figure.
- Install the tank mounting again according to
manufacturer's instructions.
NOTE:
Figure 130 shows the HDi FAP tank mounting.
- Run the tank extracting device (2) along the fuel
return line (1) as shown in the figure.
- Insert the 1000 mm long Mecanyl fuel line (1) in the
90° moulded hose (3) and fasten with 10 mm
universal clamp (2) according to the figure.
129
1 2
3
4
128
2
1
130
2
1
131
1
23
