Peugeot 307 Thermo Top C, E
47
Fuel take-off for gasoline engine

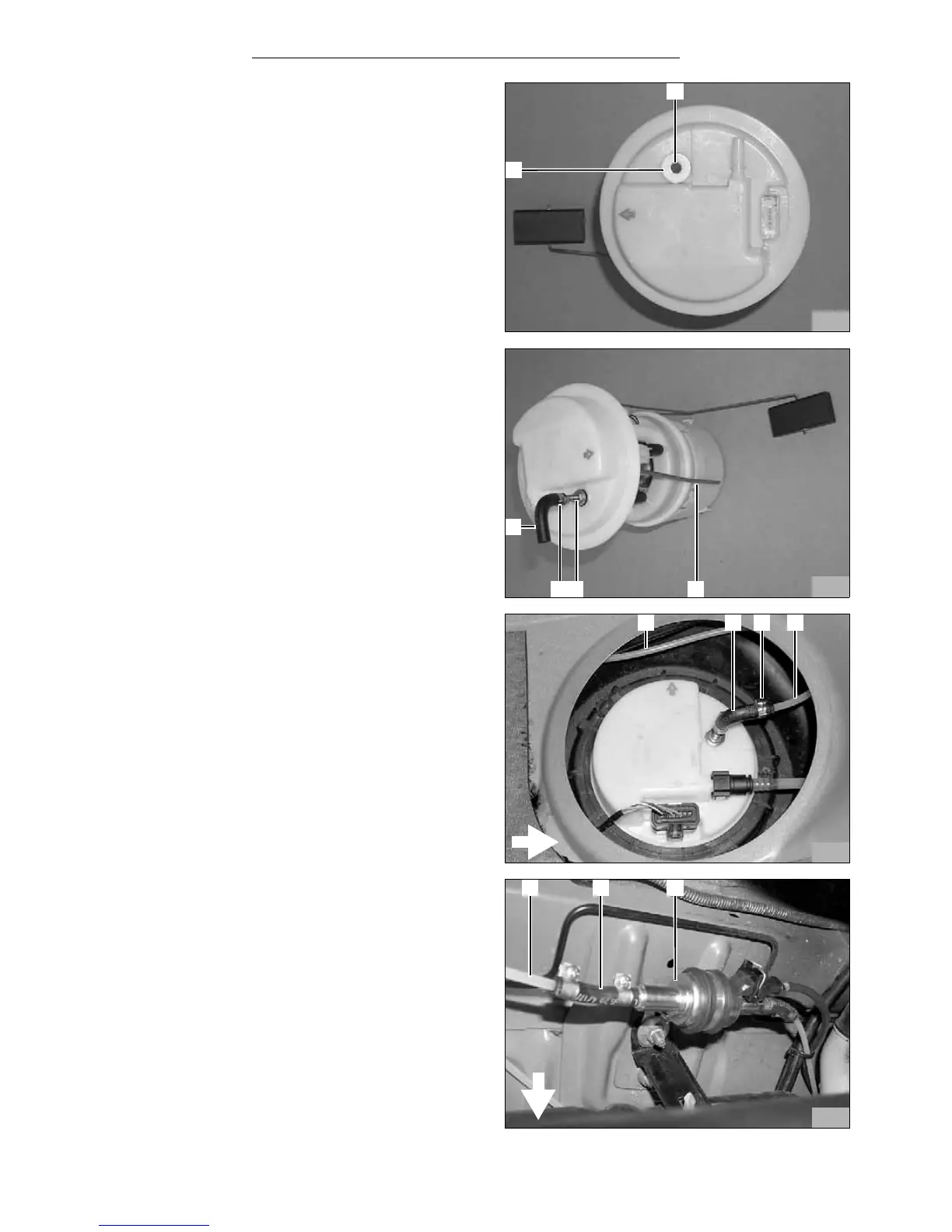

The fuel is extracted with the fuel extractor from the
tank mounting.
- Remove tank mounting according to manufacturer's
instructions
- Transfer the hole image (1) with the enclosed body
washer (2) to the tank mounting according to the
figure.
- Drill Ø 6.0mm bore hole (1) in the tank mounting
according to the figure.
- Shape and cut the tank extracting device according
to the enclosed template.
- Fasten the tank extracting device (1,2) in the tank
mounting according to the enclosed installation
instructions.
- Slide on the enclosed 90° moulded hose (4) (inner
diameter increasing from 3.5 mm to 4.5 mm) with
the ø3.5 mm end on the tank extracting device (2).
- Fasten the 90° moulded hose with the enclosed 9
mm universal clamp (3) according to the figure.
- Install the tank mounting again according to
manufacturer's instructions.
- Insert the 1000 mm long Mecanyl fuel line (1,4) in
the 90° moulded hose (2) and fasten with universal
clamp (3) according to the figure.
- Run the Mecanyl fuel pipe (126/1,4; 127/1) to the
metering pump (3) and cut into sections.
- Fasten the Mecanyl fuel line (1) to the suction side
of the metering pump (3) with a hose section (2) and
hose clamps.
124
2
1
126
1 2 3 4
125
4
3 2 1
127
31 2
