Webasto Thermo Top C Installation Instructions

Peugeot 307 Thermo Top C, E
31
NFU 1.6 l gasoline with automatic drive

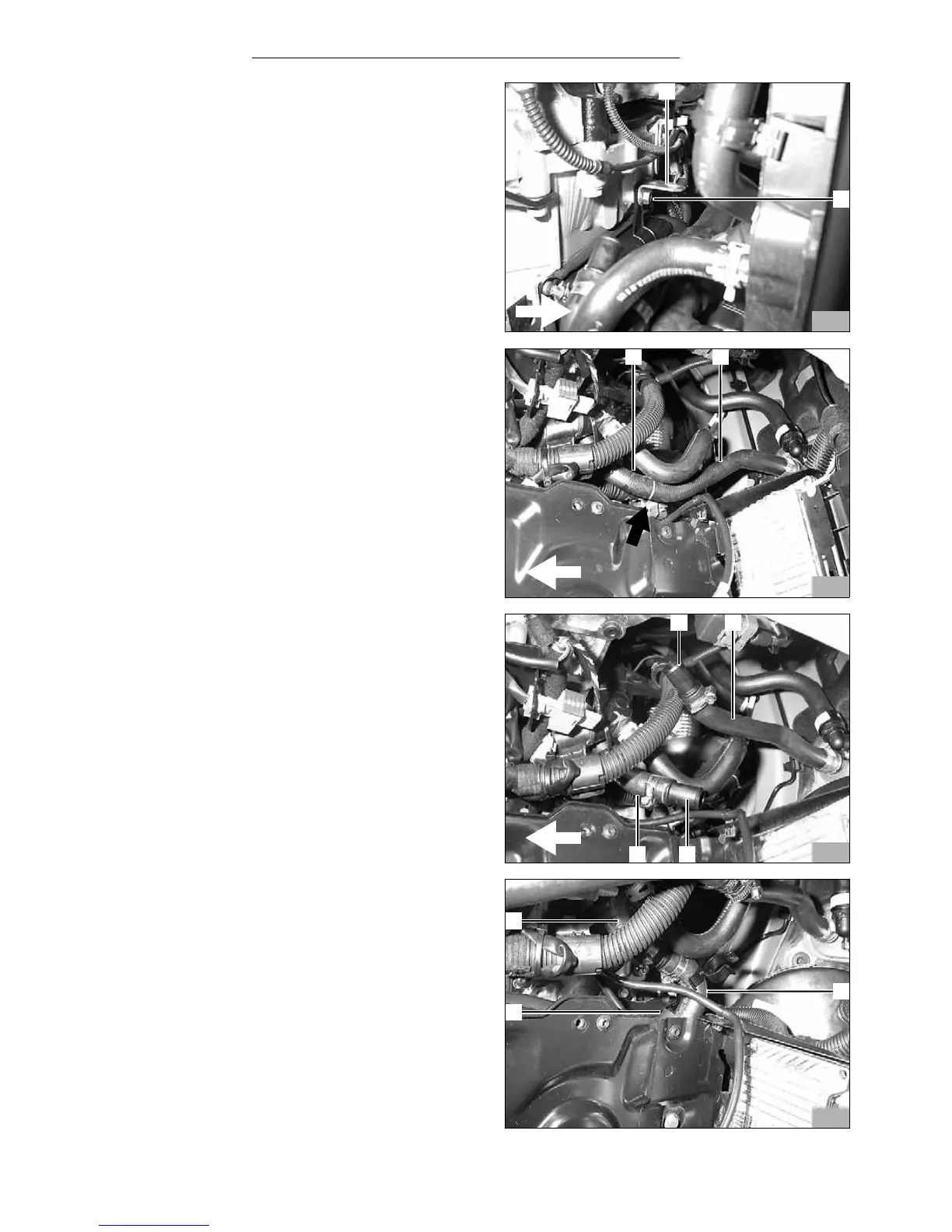

NOTE:
Insert two washers between the original vehicle hose
mounting and the bracket (1) to compensate for the
beads.
- Secure the enclosed bracket (1) to the engine block
with the original vehicle bolt (2), insert two washers
between the hose bracket and the bracket.
- Clamp the vehicle's own water hose (1, 2) from the
engine water outlet to the heat exchanger water inlet
with hose clamps.
- Separate the original vehicle water hose (1,2) as
shown in the figure (arrow).
- Insert connecting pipes 17x20 (3) in original vehicle
hose section (4) from the engine outlet and fasten
with hose clamps.
- Insert connecting pipe 17x20 (1) in original vehicle
hose section (2) to the heat exchanger and fasten
with hose clamps.
- Slide the 650 mm long water hose (2) with 180°
bend onto the connecting pipe (68/3) from the
original vehicle hose section for the (3) engine water
outlet, align as shown in the figure and fasten with
hose clamp.
- Slide the black rubber profile (1) onto the 650 mm
water hose (2) and position under the battery
mounting as shown in the figure.
66
1
2
67
1
2
68
1
2
34
69
2
1
3
