Thermo Top C, E Peugeot 307
32

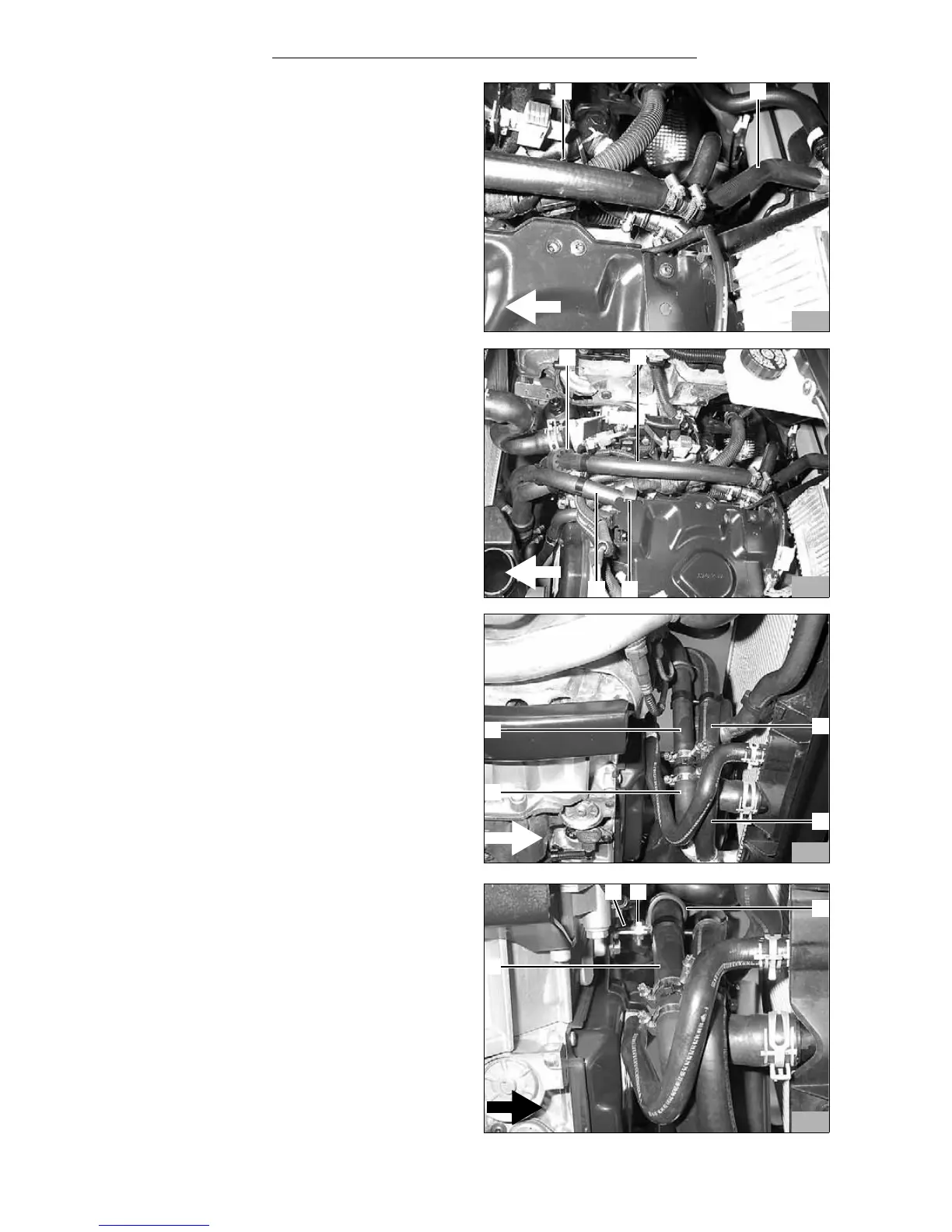

- Fasten the 660mm long water hose (1) on the
connecting pipe (68/1) to the original vehicle hose
section (2) and secure with hose clamps.
- Slide the black rubber profile (3) onto the water hose
(4) and position according to the figure.
- Slide the black rubber profile (1) onto the water hose
(2) and position according to the figure.
- Run the both water hoses (2,4) in the engine
compartment as shown in the figure.
- Connect the water hose (2) to the heater unit water
inlet with the water hose (1) from the heater unit
water outlet and secure with a hose clamp.
- Connect the water hose (3) from the engine water
outlet with the water hose (4) from the heater unit
water inlet and secure with a hose clamp.
- Fasten the water hose (1) for the heat exchanger-
heater unit water outlet to the bracket (2) with the 29
mm rubberised tube clamp (4), M6x20 bolt (3) and
flanged nut as shown in the figure.
70
1
2
71
2
4
1
3
72
3
2
4
1
73
4
32
1
