Webasto Thermo Top C Installation Instructions

Peugeot 307 Thermo Top C, E
11

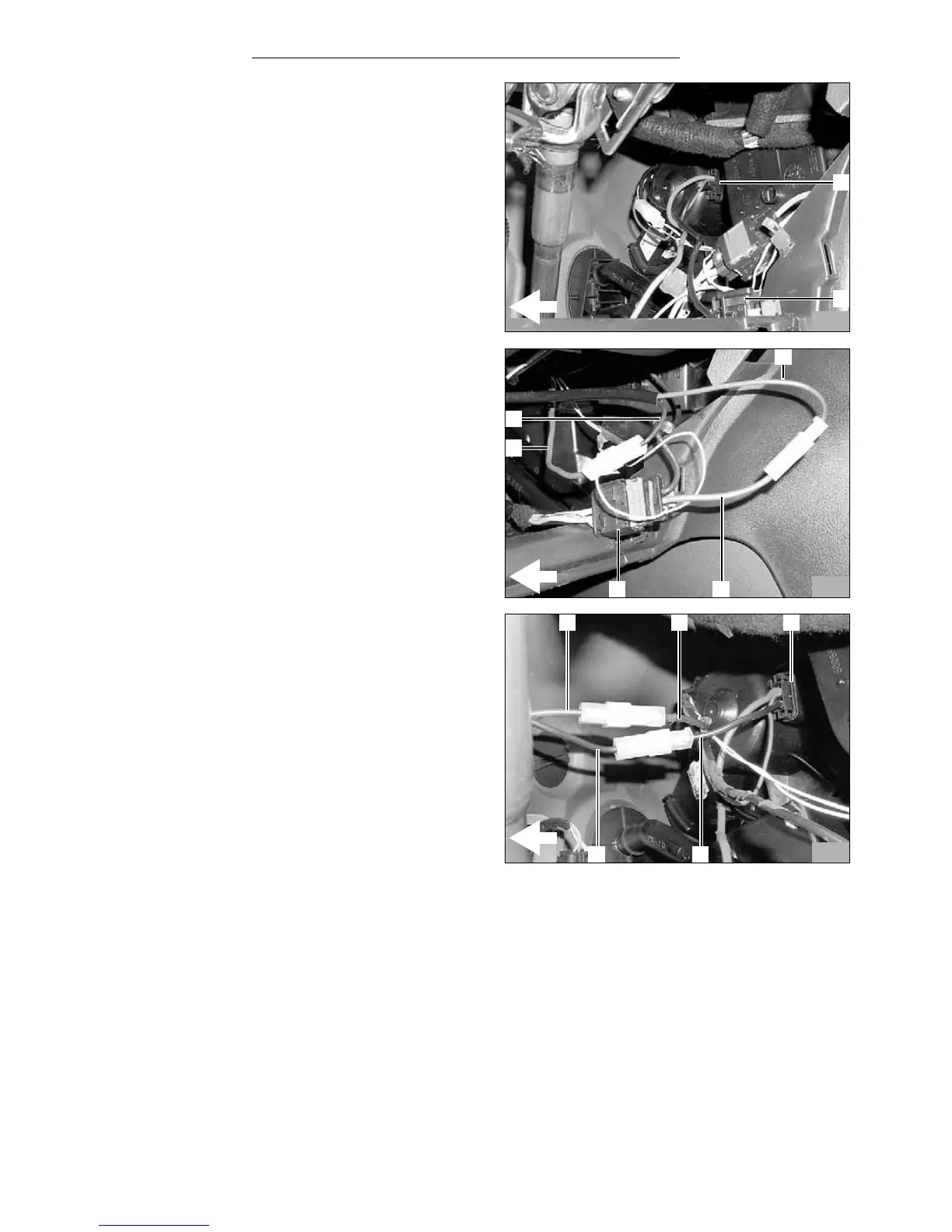

Blower control
Automatic air conditioning
NOTE:
The positive triggering of the blower engine is
between the six-pin plug connection (2) pin 3 and the
two pin connector (1) pin 2 on the blower motor.
- Separate the red wire (2.4) from the original vehicle
fuses to the blower motor approx. 500 mm before
the connector (3) pin 3.
- Connect according to illustration 4 in the circuit
diagram.
- Connect the red (rt) wire (1) from the blower relay
K3/87a with the red (rt) from the original vehicle
fuse.
- Connect the black wire (5) from K3/30 with the red
(4) wire to the blower motor.
NOTE:
The ground triggering of the blower motor is between
the two pin connector (3) on the blower motor pin 1
and the 6 pin connector on the blower controller pin 4.
- Separate the original vehicle black wire (2,4) from
the blower motor to the blower regulator pin 1 as
shown in the figure approx. 50 mm before the
connector (3).
- Connect according to illustration 4 in the circuit
diagram.
- Connect the brown wire (1) from the supplementary
relay K3.1/87 with the black wire (2) to the blower
controller.
- Connect the black wire (5) from the supplementary
relay K3.1/30 with the black wire (4) from the blower
motor.
NOTE:
On the vehicles checked with passenger
compartment monitoring, no alarms were triggered
during heating operation (test with maximum blower
speed).
Triggering the passenger compartment monitoring is
not provided for in the current vehicles.
11
1
2
12
1
2
4
3
5
13
1 2 3
4
5
