Webasto Thermo Top C Installation Instructions

Peugeot 307 Thermo Top C, E
21
RFN 2.0 l gasoline

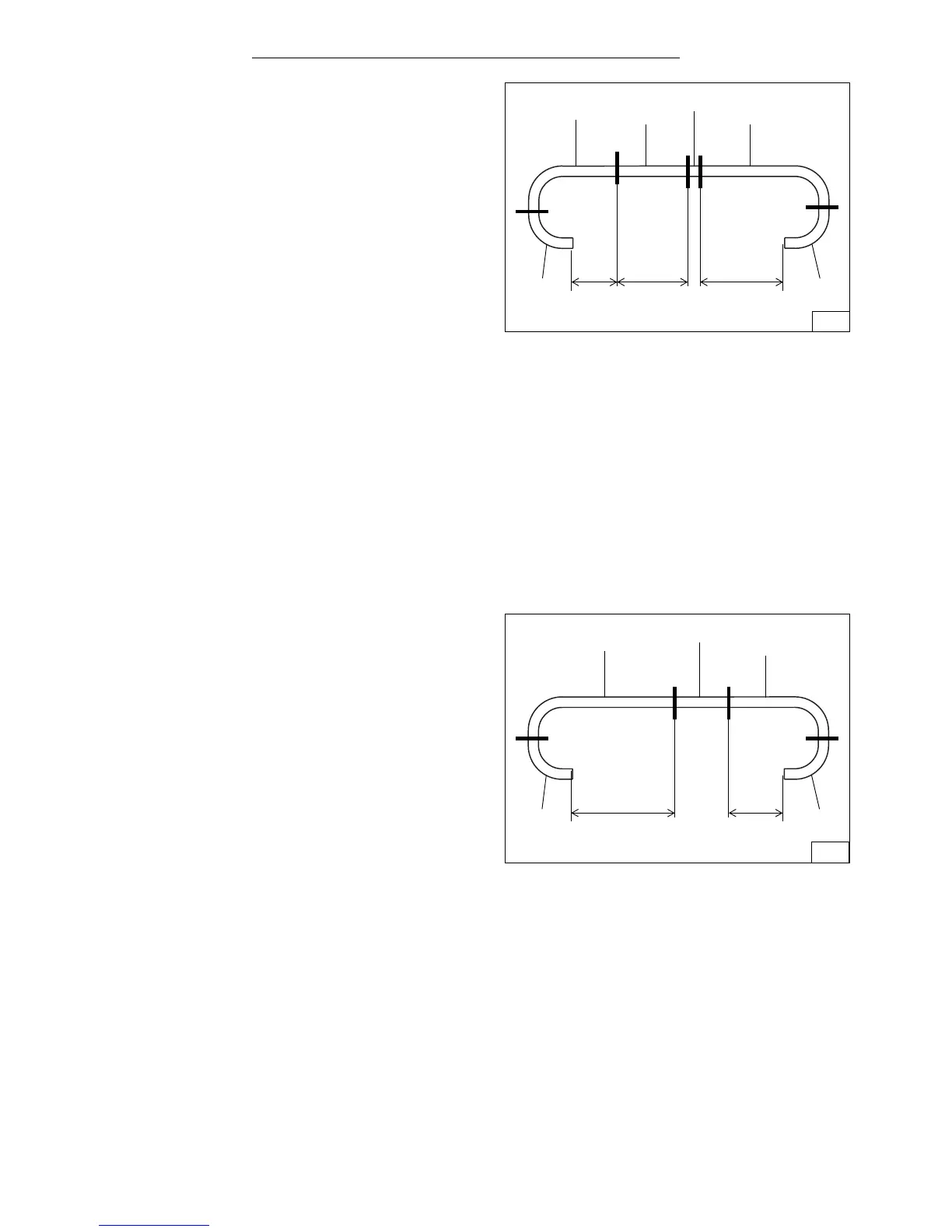

- Cut the supplied water hose into two sections, as
shown:
1 x 80 mm + 90° bend (1)
(preassembled on the heater unit)
1 x 700 mm straight (2)
(from the 1200 mm long water hose (3) to the
original vehicle water hose / heat exchanger water
inlet).
1 x 1,200 mm + 90° bend (3)
(from the 80mm long water hose (1) to the 700mm
long water hose (2)).
- Cut the water hose supplied in the kit into three
sections, as shown:
1 x 1,150 mm + 90° bend (1)
(from the heater unit water inlet to the 580mm long
water hose (2)).
1 x 580 mm + 90° bend (2)
(from the 1,150mm long water hose (1) to the
original vehicle water hose / engine exhaust).
80
38
Section
1200
Section
31 2
700
Section
580
21
1150
39
Section
Section
Section
