Webasto Thermo Top C Installation Instructions

Thermo Top C, E Peugeot 307
16

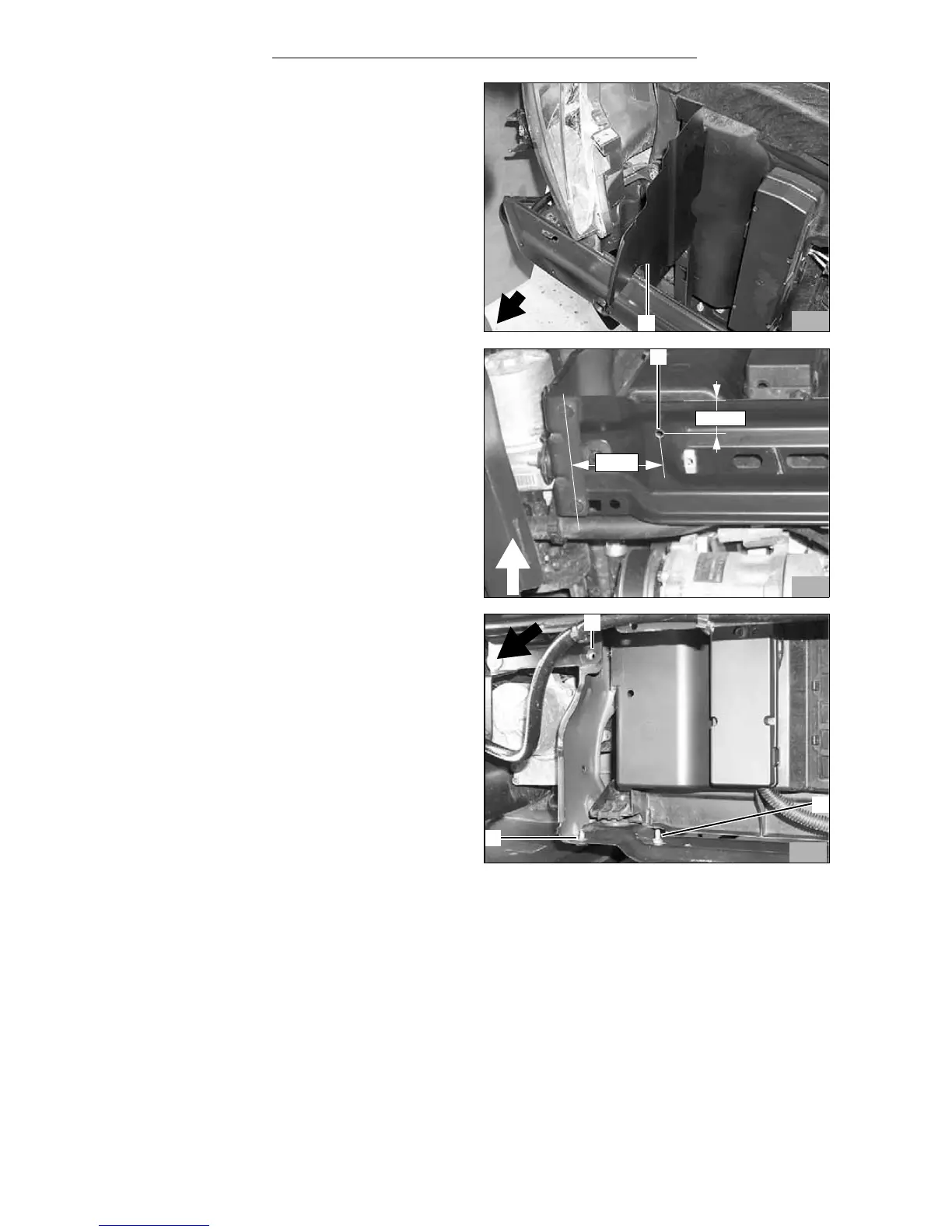

Installing the Heater Unit
Preparing the Installation Location
For vehicles with wind deflector
- Remove wind deflector (1) and dispose.
For all vehicles
- Transfer the hole image (1) to the cross strut as
shown in the figure.
- Drill a Ø 7.0mm bore hole according to the figure.
- Insert the M6x20 screw (2) from below in the hole
(24/1) and from above add two washers and a bolt
protector.
- Unscrew the original vehicle bolt in position (1).
- Unscrew the original vehicle nut in position (3).
25
2
3
1
23
1
24
37mm
91mm
1
