Webasto Thermo Top C Installation Instructions

Thermo Top C, E Peugeot 307
24
RHR 2.0 l HDI

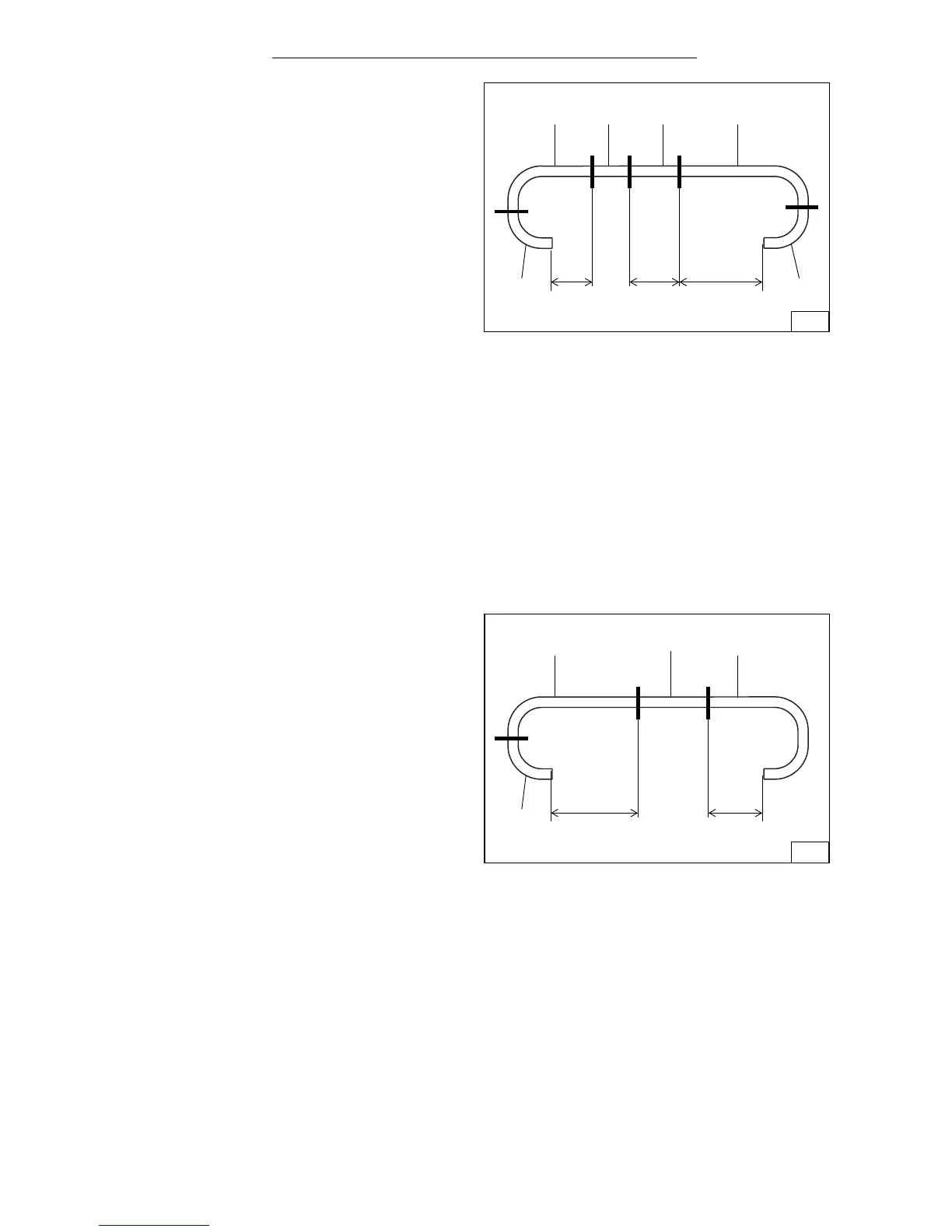

- Cut the supplied water hose into three sections, as
shown:
1 x 80 mm + 90° bend (1)
(preassembled on the heater unit)
1 x 1,200 mm + 90° bend (3)
(from the 80mm long water hose (1) to the 440mm
long water hose (2)).
1 x 440 mm straight (2)
(from the 1200 mm long water hose (3) to the
original vehicle water hose / heat exchanger water
inlet).
- Cut the water hose supplied in the kit into two
sections, as shown:
1 x 1,150 mm + 90° bend (1)
(from the heater unit water inlet to the 500mm long
water hose (2)).
1 x 500 mm + 180° bend (2)
(from the 1,150mm long water hose (1) to the
original vehicle water hose / engine exhaust).
80
44
Section
1200
Section
Section
2
440
1 3
500
2
1150
45
Section
Section
1
