Webasto Thermo Top C Installation Instructions

Peugeot 307 Thermo Top C, E
9
Preassembly and installation with
manual air conditioning
NOTE:
Pay attention to the free movement of the housing
cover.
Remove any reinforcements in the relay box near the
fastening points for the blower relay and the fuse
holder.
WARNING:
When drilling, watch out for underlying components
and wires.

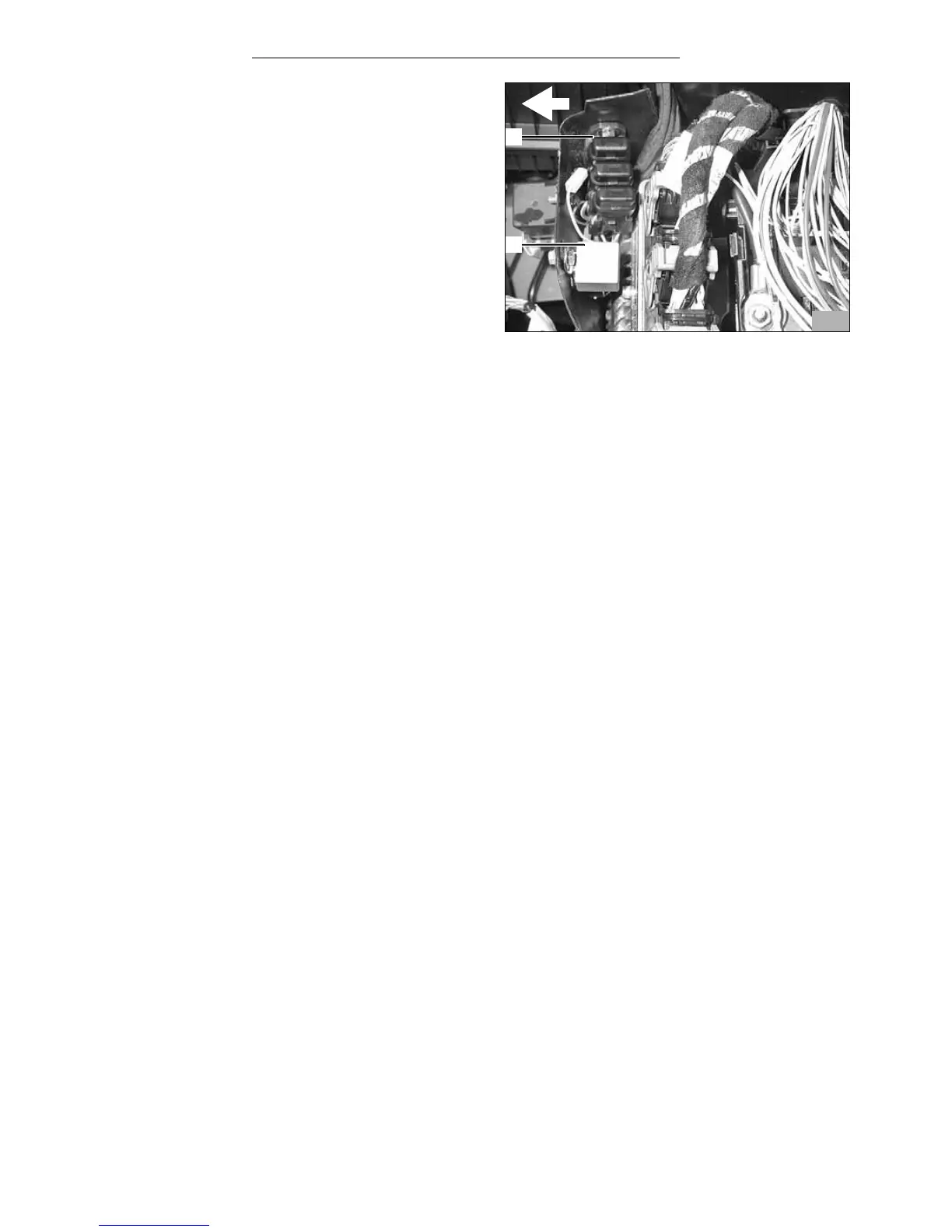

- Bore 2 holes of Ø 5.5 mm in the fuse and relay box.
- Fasten the fuses (1) and K3 blower relay (2) with 2
M5x12 bolts, 4 washers, and 2 M5 flanged nuts as
shown.
- Replace the F3 fuse with the enclosed 10 amp fuse.
- Connect the positive wire to the positive terminal in
the fuse and relay box.
- Connect the ground wire to the battery negative
terminal
8
1
2
