Webasto Thermo Top C Installation Instructions

Thermo Top C, E Peugeot 307
30

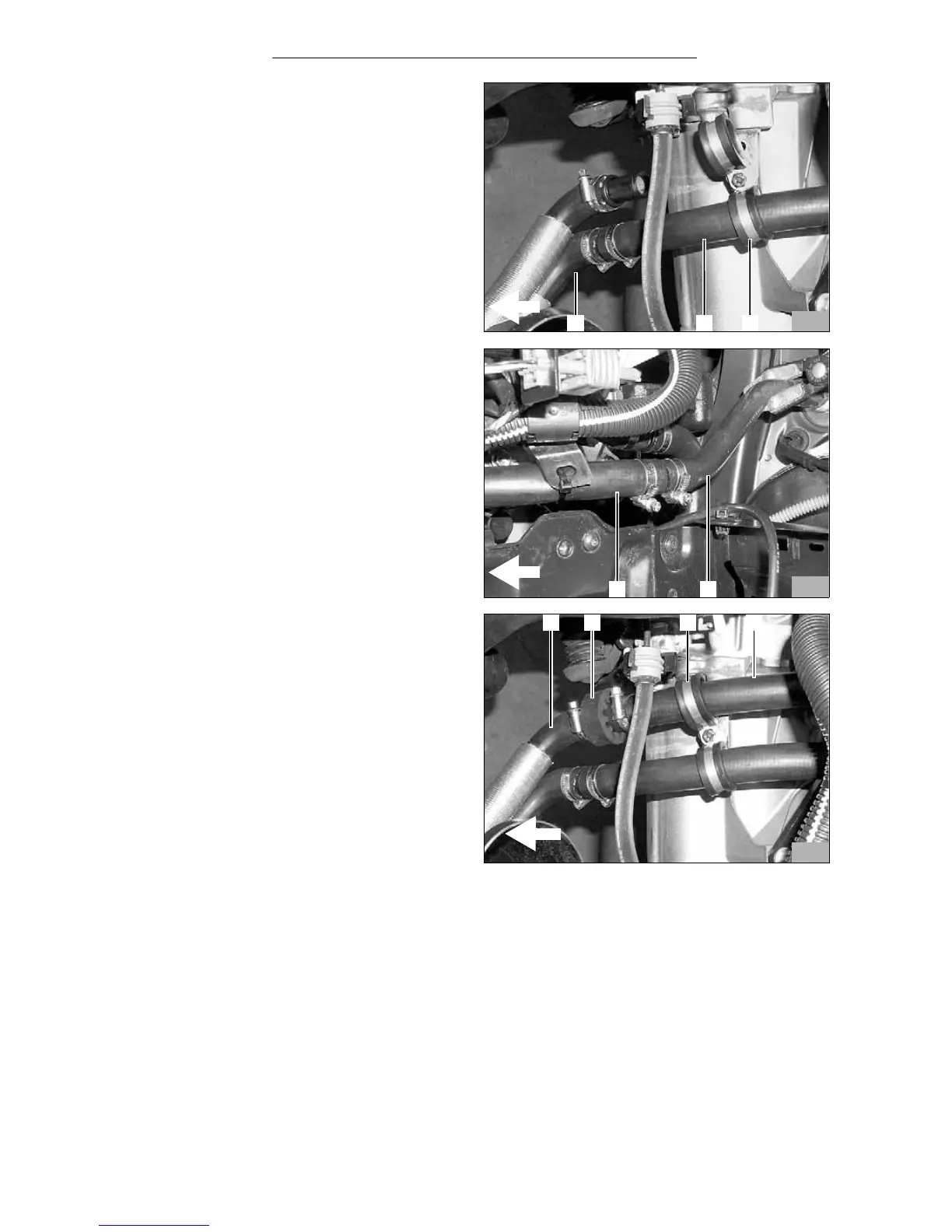

- Run the 400mm long water hoses (2) through the
left rubberized tube clamp (1) as shown in the figure.
- Fasten the 400mm long water hose (2) on the
connecting pipe in the 1150 mm long water hose (3)
and secure with hose clamps
- Slide the 380mm long water hose (2) onto the
original vehicle hose section (1) to the heat
exchanger water inlet according to the figure and
fasten with hose clamp.
- Run the 380mm long water hoses (4) through the
right rubberized tube clamp (3) as shown in the
figure.
- Slide the 380mm long water hose (4) onto the
1,200mm long water hose section (1) to the heater
unit water inlet, also slide on the black rubber profile
(2) and fasten both water hoses with hose clamp.
- Align all water hoses.
- Tighten all rubberised tube clamp.
- Align all rubber profiles.
- Secure all water hoses with cable ties.
65
1 2 3 4
64
2 1
63
2 13
