Thermo Top C, E Peugeot 307
44

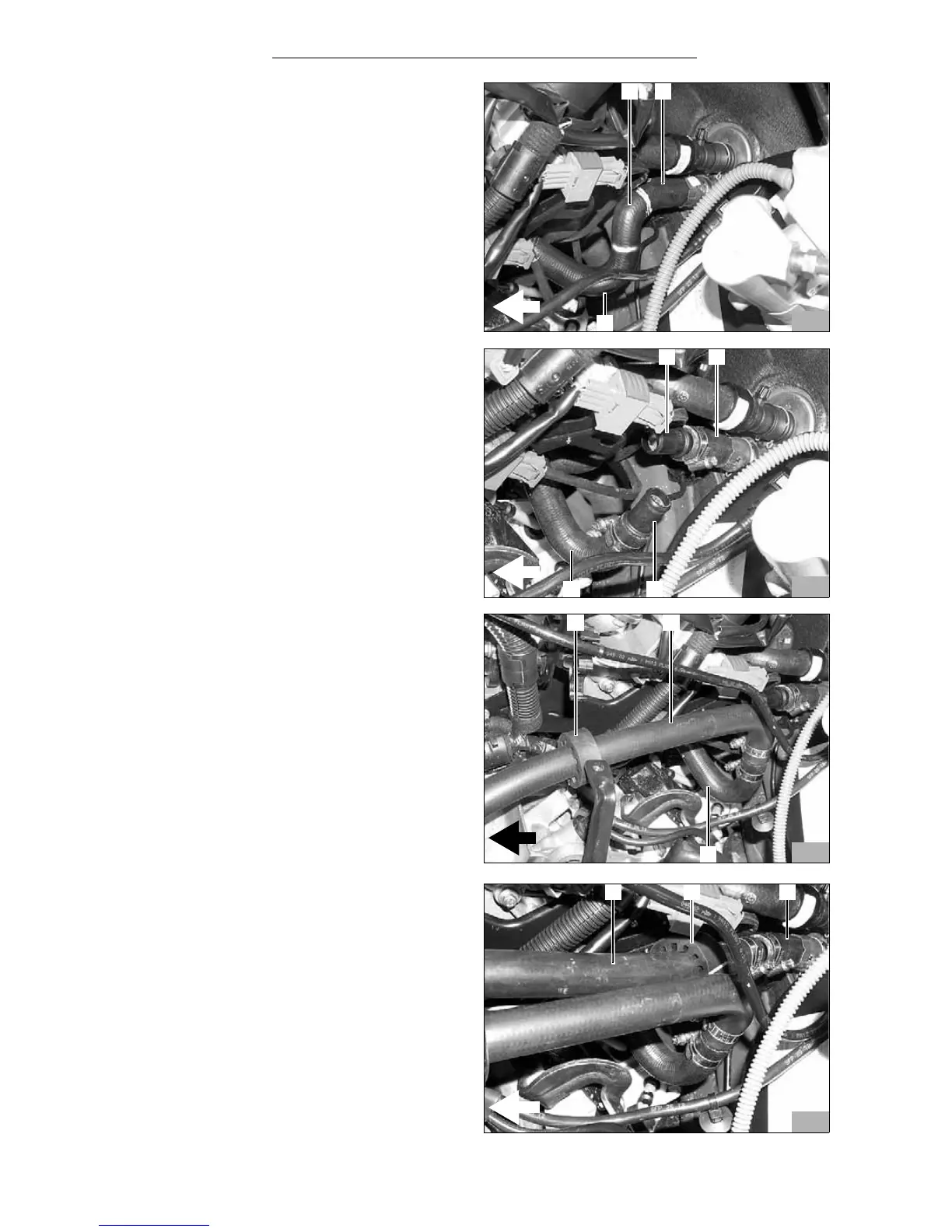

- Clamp the vehicle's own water hose (1,2,3) from the
engine water outlet to the heat exchanger water inlet
with hose clamps.
- Separate the original vehicle water hose at the mark
according to the figure.
- Dispose of the separated hose section (1).
- Insert connecting pipes 18x20 (3) in original vehicle
hose section (4) from the engine outlet and fasten
with hose clamps.
- Insert connecting pipe 18x20 (1) in original vehicle
hose section (2) to the heat exchanger and fasten
with hose clamps.
- Slide the 920mm long water hose (2) with 90° bend
onto the original vehicle hose section (3) from the
engine water outlet, align according to the figure and
fasten with hose clamp.
- Slide the black rubber profile (1) on the 920mm long
water hose (2) and position according to the figure.
- Slide the 1,000mm long water hose (1) onto the
original vehicle hose section (3) to the heat
exchanger water inlet according to the figure and
fasten with hose clamp.
- Slide the black rubber profile (2) on the 1,000mm
long water hose (1) and position according to the
figure.
115
1 2
3
116
4 3
1 2
118
1 2 3
117
1
3
2
