Peugeot 307 Thermo Top C, E
43

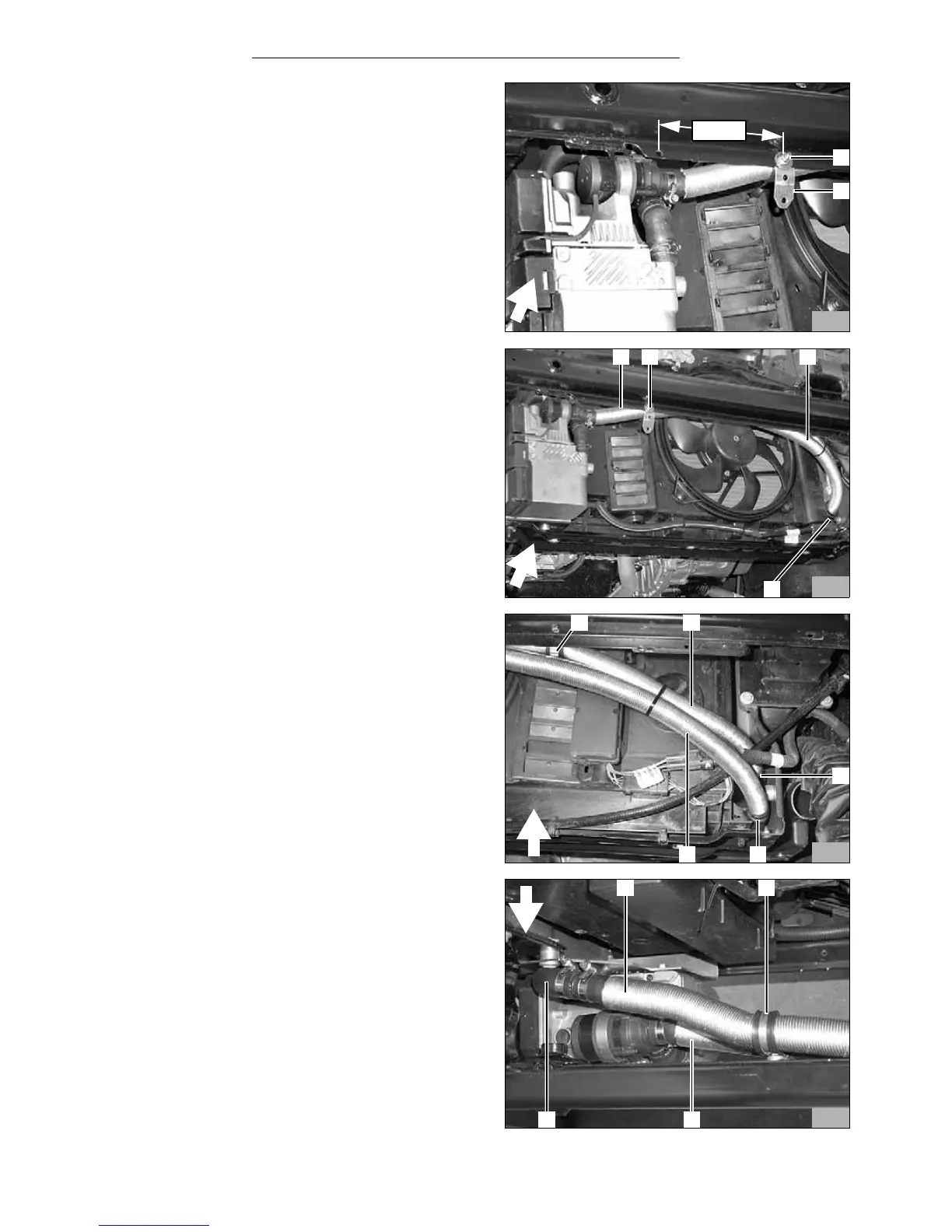

- Drill a Ø 6.5mm bore hole at position (1) in the cross-
piece according to the figure.
- Insert the preassembled fastening strap (2) into the
hole with the bolt (109/4) according to the figure and
fasten to the cross-piece with the body washer and
the flanged nut.
- Slide the 1,000 mm heat protection hose on the
880mm long water hose.
- Slide the 1,000 mm heat protection hose on the
970mm long water hose.
- Run the 880mm long water hose (112/1,3; 46/3 or
113/5) on the heater unit water inlet.
- Run the 880mm long water hose (1,3) through the
lower tube clamp at position (2) to the left.
- Run the 880mm long water hose (1,3 or 112/5)
through the lower tube clamp at position (113/4) in
the engine compartment.
- Fasten the 880mm long water hose (3) with hose
clamps onto the heater unit water inlet.
- Slide the 970mm long water hose (114/1; 47/2) onto
the water hose (4).
- Run the 970mm long water hose (1) through the
upper tube clamp at position (2) to the left.
- Run the 970mm long water hose (114/1 or 113/2)
through the tube clamp (113/1) and tube clamp
(113/3) in the engine compartment.
- Fasten the 970mm long water hose (1) with hose
clamps onto the water hose (4).
111
2
1
150mm
112
1 32
4
113
1 2
3
45
114
4 3
2
1 2
