Webasto Thermo Top C Installation Instructions

Thermo Top C, E Peugeot 307
28

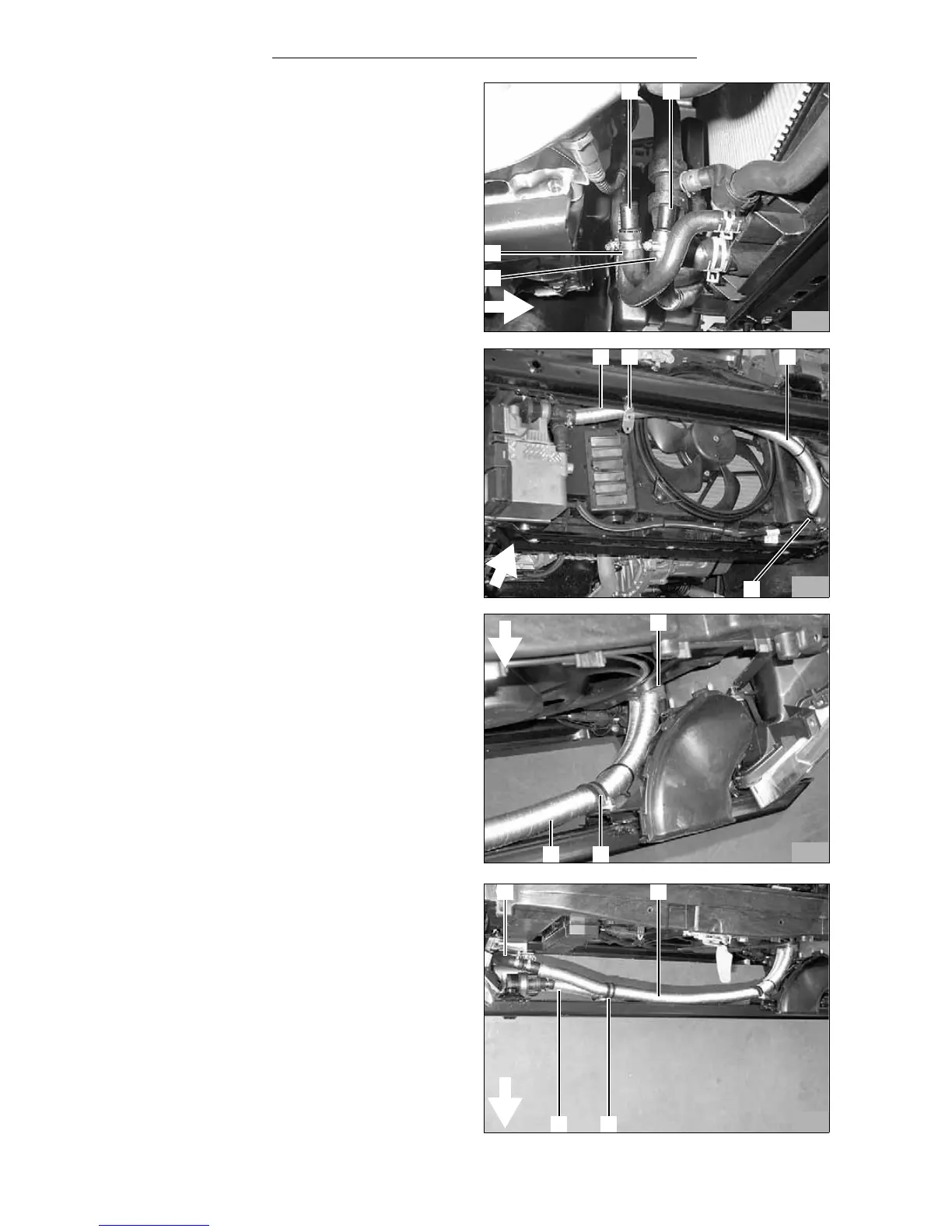

- Run the 1,150mm long water hose (56/1,3; 53/2 or
54/3 and 55/3) on the traverse to the right.
- Run the 1,150mm long water hose (1,3) through the
lower rubberized tube clamp to position (2) as
shown in the figure.
- Slide the red rubber profile without groove (1) on the
1,200mm long water hose (3) and position as shown
in the figure.
- Run the 1,200mm long water hose (3) through the
rubberized tube clamp to position (2) on the traverse
as shown in the figure.
- Run the 1,200mm long water hose (3) through the
upper rubberized tube clamp (58/3).
- Slide the 1150mm long water hose (4) onto the
heater unit water inlet and fasten with hose clamp.
- Fasten the 1,200mm long water hose (2) on the
connecting pipe in the pre-assembled 80mm long
water hose (1) and secure with hose clamps
55
2
3
4
1
56
1 32
4
57
1
3 2
58
1 2
4 3
